Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Cruise Control / Front Camera / Components
COMPONENTS

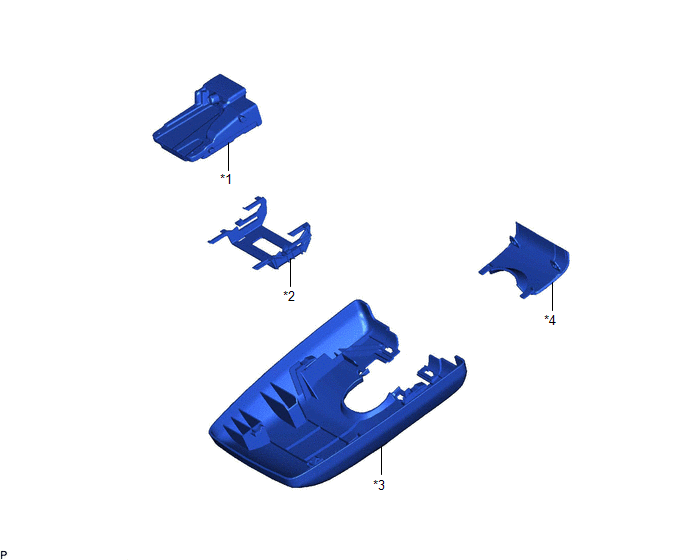

ILLUSTRATION
| *1 | FORWARD RECOGNITION CAMERA | *2 | FORWARD RECOGNITION LATCH |
| *3 | NO. 1 FORWARD RECOGNITION COVER | *4 | NO. 2 FORWARD RECOGNITION COVER |
