Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL FORWARD RECOGNITION CAMERA

NOTICE:

  • When replacing the forward recognition camera, replace it with a new one.
  • If the forward recognition camera has been struck or dropped, replace it with a new one.
  • If the forward recognition camera is not properly installed, forward recognition camera optical axis learning cannot be performed properly. Make sure the forward recognition camera is installed securely.
  • Do not touch the camera lens. If the camera lens has been touched, do not use the forward recognition camera.
  • Replace the forward recognition camera if there is any foreign matter on the camera lens.
  • If the forward recognition camera bracket is deformed or damaged, replace it together with the windshield glass.
  • When replacing the windshield glass of a vehicle equipped with a forward recognition camera, make sure to use a Lexus genuine part. If a non-Lexus genuine part is used, the forward recognition camera may not be able to be installed due to a missing bracket. Also, the dynamic radar cruise control system, front camera system, lane control system, road sign assist system, pre-collision system or lighting system (EXT) may not operate properly due to a difference in the transmissivity or black ceramic border.
  • If the inner surface of the windshield glass in the area in front of the forward recognition camera is dirty, remove the forward recognition hood, clean the glass, then reinstall the forward recognition hood and forward recognition camera.

    Forward recognition hood removal: Click here

    Forward recognition hood installation: Click here

(a) When using a new forward recognition camera (w/ Protective Film):

(1) Remove the protective film.

NOTICE:

Do not touch the camera lens after removing the protective film.

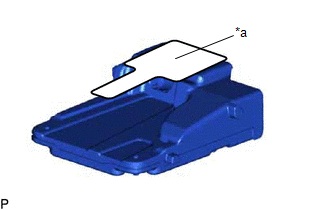

*a

Protective Film

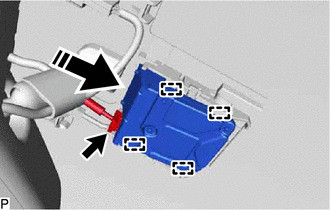

(b) Engage the 4 guides as shown in the illustration.

NOTICE:

Do not touch the camera lens.

Install in this Direction

(c) Connect the connector to install the forward recognition camera.

2. INSTALL FORWARD RECOGNITION LATCH

NOTICE:

Before installing the forward recognition latch, be sure to check that the forward recognition camera is securely installed.

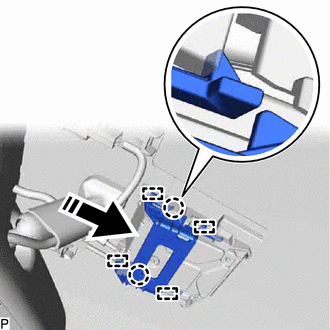

(a) Engage the 4 guides and 2 claws as shown in the illustration to install the forward recognition latch.

Install in this Direction

3. INSTALL NO. 1 FORWARD RECOGNITION COVER

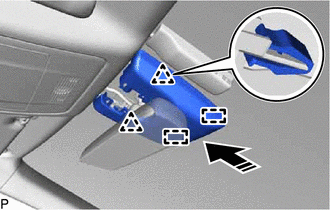

(a) Engage the 2 clips and 2 guides as shown in the illustration to install the No. 1 forward recognition cover.

Install in this Direction

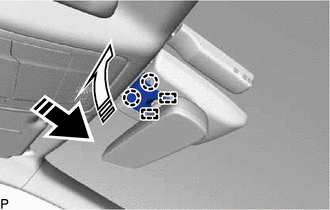

4. INSTALL NO. 2 FORWARD RECOGNITION COVER

(a) Engage the 2 guides and 2 claws as indicated by the arrows, in the order shown in the illustration to install the No. 2 forward recognition cover.

Install in this Direction (1)

Install in this Direction (2)

5. ADJUST FORWARD RECOGNITION CAMERA

(a) If the forward recognition camera has been replaced with a new one or the windshield glass has been removed and installed, it is necessary to perform Forward Recognition Camera Learning.

HINT:

Forward Recognition Camera Learning can be performed by using either One Time Recognition or Sequential Recognition.

One Time Recognition: Click here

Sequential Recognition: Click here
