Lexus ES: Transmission Range Sensor "A" Circuit (PRNDL Input) Signal Compare Failure (P070562)

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Control System (for Lithium-ion Battery) / Transmission Range Sensor "A" Circuit (PRNDL Input) Signal Compare Failure (P070562)

DESCRIPTION

The shift lever position sensor sends 7 different switch signals to the hybrid vehicle control ECU. The hybrid vehicle control ECU uses these signals to detect the shift lever position (P, R, N or D). The hybrid vehicle control ECU also uses this information to determine the intended direction of travel (forward or reverse).

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P070562

Transmission Range Sensor "A" Circuit (PRNDL Input) Signal Compare Failure

Shift sensor circuit malfunction (abnormal pattern)

A malfunction in the P, R, N or D circuit is detected based on the shift sensor input pattern.

(1 trip detection logic)
  • Wire harness or connector
  • Shift lever position sensor
  • Hybrid vehicle control ECU

Does not come on

Master Warning Light:

Comes on
Related Data List

DTC No.

Data List

P070562
  • Shift Position
  • Shift Position Sensor (PNB)
  • Shift Position Sensor (PR)
  • Shift Position Sensor (DB1)
  • Shift Position Sensor (DB2)
  • Shift Position Sensor (N)
  • Shift Position Sensor (R)
  • Shift Position Sensor (P)

CONFIRMATION DRIVING PATTERN

HINT:

After repair has been completed, clear the DTCs and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click here

  1. Connect the Techstream to the DLC3.
  2. Turn the power switch on (IG) and turn the Techstream on.
  3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
  4. Turn the power switch off and wait for 2 minutes or more.
  5. Turn the power switch on (IG) and turn the Techstream on.
  6. Slowly move the shift lever from P to S then back to P.
  7. Enter the following menus: Powertrain / Hybrid Control / Utility / All Readiness.
  8. Check the DTC judgment result.

    HINT:

    • If the judgment result shows NORMAL, the system is normal.
    • If the judgment result shows ABNORMAL, the system has a malfunction.
    • If the judgment result shows INCOMPLETE or N/A, perform driving pattern again.

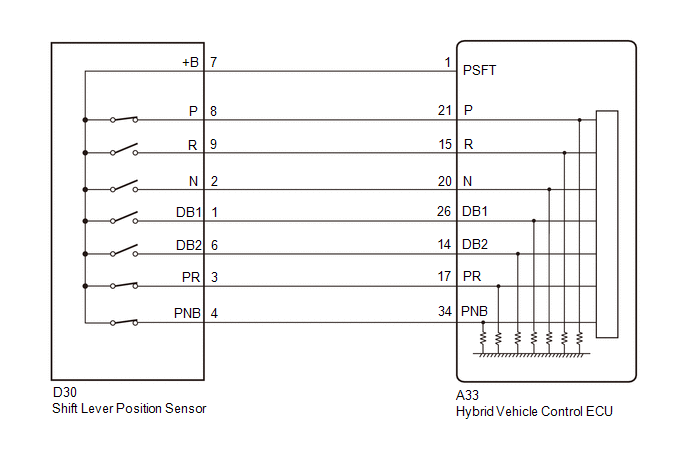

WIRING DIAGRAM

PROCEDURE

1.

READ VALUE USING TECHSTREAM (SHIFT POSITION SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(c) Enter the following menus: Powertrain / Hybrid Control / Data List / Shift Position Sensor (PNB), Shift Position Sensor (PR), Shift Position Sensor (DB1), Shift Position Sensor (DB2), Shift Position Sensor (N), Shift Position Sensor (R) and Shift Position Sensor (P).

(d) While slowly moving the shift lever from P to S, then back to P, read the Data List (Shift Position Sensor) displayed on the Techstream.

Powertrain > Hybrid Control > Data List

Tester Display

Shift Position Sensor (PNB)

Shift Position Sensor (PR)

Shift Position Sensor (DB1)

Shift Position Sensor (DB2)

Shift Position Sensor (N)

Shift Position Sensor (R)

Shift Position Sensor (P)

HINT:

Be sure to move the shift lever slowly.

Standard:

Data List

Shift Position

P

R

N

D or S

Shift Position Sensor (P)

ON

OFF

OFF

OFF

Shift Position Sensor (R)

OFF

ON

OFF

OFF

Shift Position Sensor (PR)

ON

ON

OFF

OFF

Shift Position Sensor (N)

OFF

OFF

ON

OFF

Shift Position Sensor (DB1)

OFF

OFF

OFF

ON

Shift Position Sensor (DB2)

OFF

OFF

OFF

ON

Shift Position Sensor (PNB)

ON

OFF

ON

OFF

(e) Check for DTCs.

Powertrain > Hybrid Control > Trouble Codes

OK:

DTC P070562 is not output.

(f) Turn the power switch off.

NG

GO TO STEP 3

OK

2.

CHECK FOR INTERMITTENT PROBLEMS

Click here

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

3.

INSPECT SHIFT LEVER POSITION SENSOR

(a) Turn the power switch on (IG).

(b) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

A33-21 (P) - Body ground

Power switch on (IG)

Shift lever in P

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except P

0 to 1.5 V

A33-15 (R) - Body ground

Power switch on (IG)

Shift lever in R

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except R

0 to 1.5 V

A33-17 (PR) - Body ground

Power switch on (IG)

Shift lever in P or R

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except P or R

0 to 1.5 V

A33-20 (N) - Body ground

Power switch on (IG)

Shift lever in N

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except N

0 to 1.5 V

A33-26 (DB1) - Body ground

Power switch on (IG)

Shift lever in D or S

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except D or S

0 to 1.5 V

A33-14 (DB2) - Body ground

Power switch on (IG)

Shift lever in D or S

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except D or S

0 to 1.5 V

A33-34 (PNB) - Body ground

Power switch on (IG)

Shift lever in P or N

6.0 to 14 V

Power switch on (IG)

Shift lever in any position except P or N

0 to 1.5 V

*a

Component with harness connected

(Hybrid Vehicle Control ECU)

(c) Turn the power switch off.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

4.

CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

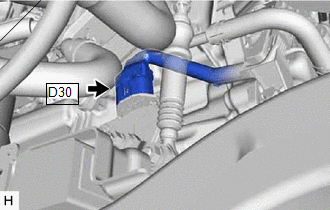

(a) Disconnect the D30 shift lever position sensor connector.

(b) Turn the power switch on (IG).

(c) Measure the voltage according to the value(s) in the table below.

Standard Voltage:

Tester Connection

Condition

Specified Condition

D30-7 (+B) - Body ground

Power switch on (IG)

6.0 to 14 V

NOTICE:

Turning the power switch on (IG) with the shift lever position sensor connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.

*a

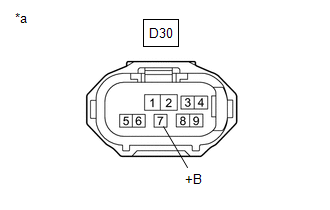

Front view of wire harness connector

(to Shift Lever Position Sensor)

(d) Turn the power switch off.

(e) Reconnect the D30 shift lever position sensor connector.

NG

GO TO STEP 6

OK

5.

INSPECT SHIFT LEVER POSITION SENSOR

(a) Disconnect the D30 shift lever position sensor connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D30-7 (+B) - D30-3 (PR)

Shift lever in P

Below 1 Ω

D30-7 (+B) - D30-4 (PNB)

Below 1 Ω

D30-7 (+B) - D30-8 (P)

Below 1 Ω

D30-7 (+B) - D30-1 (DB1), D30-2 (N), D30-6 (DB2) and D30-9 (R)

10 kΩ or higher

D30-7 (+B) - D30-3 (PR)

Shift lever in R

Below 1 Ω

D30-7 (+B) - D30-9 (R)

Below 1 Ω

D30-7 (+B) - D30-1 (DB1), D30-2 (N), D30-4 (PNB), D30-6 (DB2) and D30-8 (P)

10 kΩ or higher

D30-7 (+B) - D30-2 (N)

Shift lever in N

Below 1 Ω

D30-7 (+B) - D30-4 (PNB)

Below 1 Ω

D30-7 (+B) - D30-1 (DB1), D30-3 (PR), D30-6 (DB2), D30-8 (P) and D30-9 (R)

10 kΩ or higher

D30-7 (+B) - D30-1 (DB1)

Shift lever in D or S

Below 1 Ω

D30-7 (+B) - D30-6 (DB2)

Below 1 Ω

D30-7 (+B) - D30-2 (N), D30-3 (PR), D30-4 (PNB), D30-8 (P) and D30-9 (R)

10 kΩ or higher

HINT:

Terminals No. 5 on the component side connector is empty.

*a

Component without harness connected

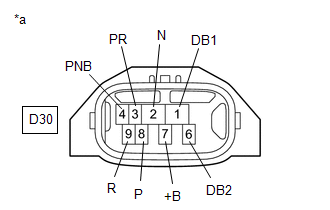

(Shift Lever Position Sensor)

(c) Reconnect the D30 shift lever position sensor connector.

OK

REPAIR OR REPLACE HARNESS OR CONNECTOR
NG

REPLACE SHIFT LEVER POSITION SENSOR

6.

CHECK HARNESS AND CONNECTOR (SHIFT LEVER POSITION SENSOR - HYBRID VEHICLE CONTROL ECU)

(a) Disconnect the D30 shift lever position sensor connector.

(b) Disconnect the A33 hybrid vehicle control ECU connector.

(c) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

D30-7 (+B) - A33-1 (PSFT)

Power switch off

Below 1 Ω

D30-7 (+B) or A33-1 (PSFT) - Body ground and other terminals

Power switch off

10 kΩ or higher

*a

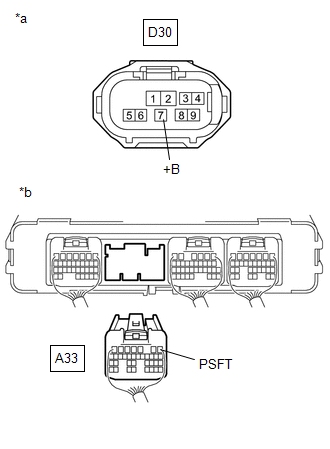

Front view of wire harness connector

(to Shift Lever Position Sensor)

*b

Rear view of wire harness connector

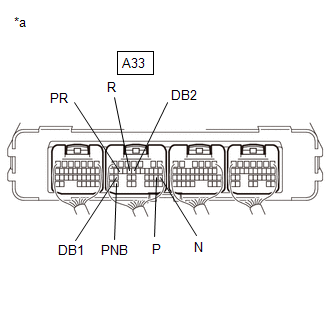

(to Hybrid Vehicle Control ECU)

(d) Reconnect the A33 hybrid vehicle control ECU connector.

(e) Reconnect the D30 shift lever position sensor connector.

OK

REPLACE HYBRID VEHICLE CONTROL ECU

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
