Lexus ES: Removal
REMOVAL
CAUTION / NOTICE / HINT
The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear door belt moulding assembly removal/installation are shown below.
Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: When performing learning using the Techstream.
Click here | |||
| Disconnect cable from negative auxiliary battery terminal | Perform steering sensor zero point calibration | Lane Control System | |
| Pre-collision System | |||
| Parking Support Brake System* | |||
| Lighting System | |||
| Memorize steering angle neutral point | Parking Assist Monitor System | | |
| Panoramic View Monitor System | | ||
| Initialize power trunk lid system | Power Trunk Lid System | | |
| Initialize power window control system |
| |
NOTICE:
- After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
- After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|
|
*: When performing learning using the Techstream.
Click here | |||
| Disconnect cable from negative battery terminal | Perform steering sensor zero point calibration | Lane Control System | |
| Pre-collision System | |||
| Parking Support Brake System* | |||
| Lighting System | |||
| Memorize steering angle neutral point | Parking Assist Monitor System | | |
| Panoramic View Monitor System | | ||
| Initialize power trunk lid system | Power Trunk Lid System | | |
| Initialize power window control system |
| |
NOTICE:
- After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
- After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. PRECAUTION
NOTICE:
After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL
for 2GR-FKS:
Click here .gif)
for A25A-FXS:
Click here
3. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL
Click here
4. REMOVE REAR DOOR TRIM UPPER PAD
Click here
5. REMOVE COURTESY LIGHT ASSEMBLY
Click here
6. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY
Click here
7. REMOVE REAR SIDE CURTAIN ASSEMBLY (w/ Rear Door Sunshade)
Click here
8. REMOVE REAR DOOR SERVICE HOLE COVER
Click here
9. REMOVE REAR DOOR NO. 2 SERVICE HOLE COVER
Click here
10. REMOVE REAR DOOR NO. 2 VENT SEAL
Click here
11. REMOVE REAR DOOR PANEL PROTECTOR
Click here
12. REMOVE REAR DOOR GLASS RUN
Click here
13. DISCONNECT REAR DOOR WEATHERSTRIP
Click here
14. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY
Click here
15. REMOVE REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY
Click here
16. REMOVE REAR DOOR GLASS SUB-ASSEMBLY
Click here
17. REMOVE REAR DOOR BELT MOULDING ASSEMBLY

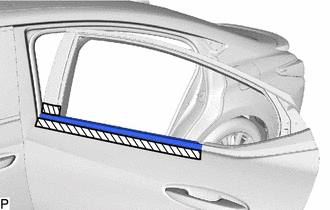

(a) Apply protective tape around the rear door belt moulding assembly as shown in the illustration.
.png) | Protective Tape |

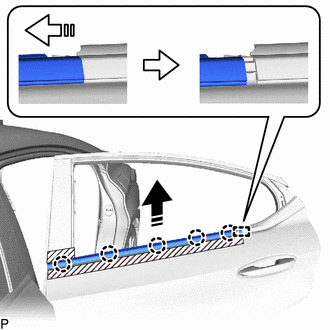

(b) Disengage the 5 claws and guide to remove the rear door belt moulding assembly as shown in the illustration.
.png) | Remove in this Direction (1) |
.png) | Remove in this Direction (2) |
18. REMOVE REAR DOOR BELT MOULDING SUB-ASSEMBLY

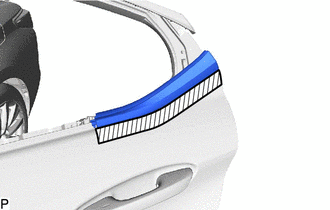

(a) Apply protective tape around the rear door belt moulding sub-assembly as shown in the illustration.
| | Protective Tape |

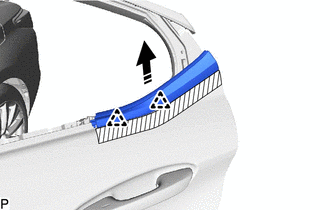

(b) Disengage the 2 clips and remove the rear door belt moulding sub-assembly as shown in the illustration.
| | Remove in this Direction |
