Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click here

2. INSTALL REAR DOOR BELT MOULDING SUB-ASSEMBLY

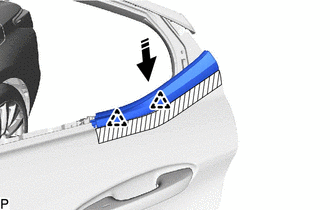

(a) Engage the 2 clips to install a new rear door belt moulding sub-assembly as shown in the illustration.

Install in this Direction

3. INSTALL REAR DOOR BELT MOULDING ASSEMBLY

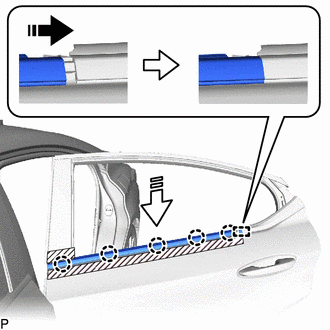

(a) Engage the guide and 5 claws to install a new rear door belt moulding assembly as shown in the illustration.

Install in this Direction (1)

Install in this Direction (2)

4. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

Click here

5. INSTALL REAR DOOR QUARTER WINDOW GLASS SUB-ASSEMBLY

Click here

6. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

Click here

7. CONNECT REAR DOOR WEATHERSTRIP

Click here

8. INSTALL REAR DOOR GLASS RUN

Click here

9. INSTALL REAR DOOR PANEL PROTECTOR

Click here

10. INSTALL REAR DOOR NO. 2 VENT SEAL

Click here

11. INSTALL REAR DOOR NO. 2 SERVICE HOLE COVER

Click here

12. INSTALL REAR DOOR SERVICE HOLE COVER

Click here

13. INSTALL REAR SIDE CURTAIN ASSEMBLY (w/ Rear Door Sunshade)

Click here

14. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

Click here

15. INSTALL COURTESY LIGHT ASSEMBLY

Click here

16. INSTALL REAR DOOR TRIM UPPER PAD

Click here

17. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL

Click here

18. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

for 2GR-FKS:

Click here

for A25A-FXS:

Click here

for A25A-FKS:

Click here

19. INITIALIZE POWER WINDOW CONTROL SYSTEM

for HV Model:

Click here

for Gasoline Model:

Click here

20. INSPECT POWER WINDOW OPERATION

for HV Model:

Click here

for Gasoline Model:

Click here
