Lexus ES: Components

COMPONENTS

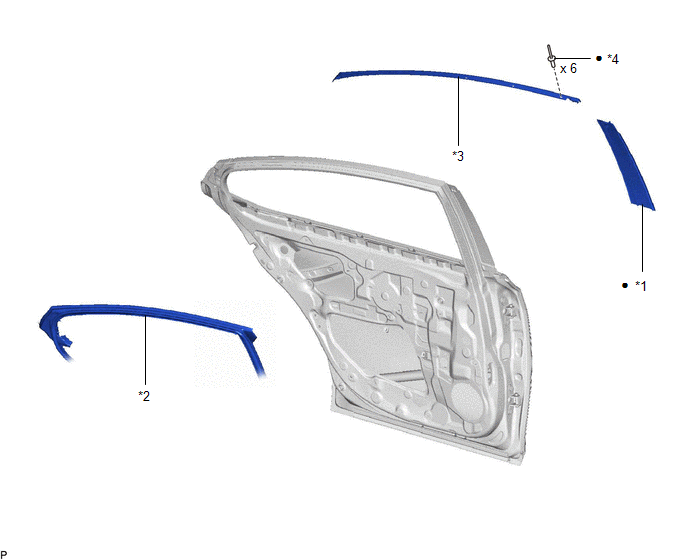

ILLUSTRATION

*1

REAR DOOR FRONT WINDOW FRAME MOULDING

*2

REAR DOOR WEATHERSTRIP

*3

REAR DOOR WINDOW FRAME MOULDING SUB-ASSEMBLY

*4

RIVET

Non-reusable part

-

-
