Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

CAUTION:

To prevent foreign matter from entering the inverter with converter assembly, once the seal packing removal cover has been removed, work cannot be suspended until the motor generator control ECU kit is reinstalled.

NOTICE:

Do not cross-thread the bolts when installing them.

PROCEDURE

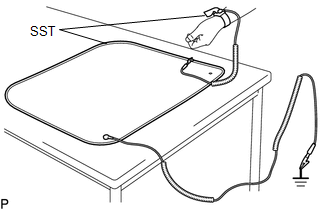

1. HOW TO PREVENT STATIC ELECTRICITY

SST: 09890-47010

(a) Wear an antistatic wrist strap.

(b) Connect the ground clip of the antistatic mat securely to a ground point provided in the workshop or on a workbench (anchor bolt).

HINT:

If the ground clip cable is too short, use an extension cable.

(c) Connect the ground clip of the antistatic wrist strap securely to the specified point of the antistatic mat.

(d) When handling internal components of the inverter with converter assembly, use only antistatic gloves or bare hands to prevent damage from static electricity or the entry of foreign matter.

2. INSTALL MOTOR GENERATOR CONTROL ECU KIT

CAUTION:

To prevent foreign matter from entering the inverter with converter assembly, once the seal packing removal cover has been removed, work cannot be suspended until the motor generator control ECU kit is reinstalled.

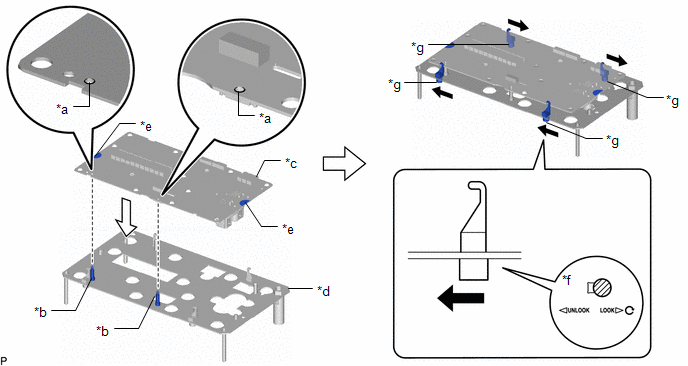

(a) Check that the 4 screws of the circuit board replacement jig are unlocked, and then while holding the sides of the circuit board, align the guide holes with the guide pins of the circuit board replacement jig and evenly set the circuit board on the circuit board replacement jig.

*a	Guide Hole	*b	Guide Pin
*c	Circuit Board	*d	Circuit Board Replacement Jig
*e	Hold here	*f	Locked
*g	Knob	-	-
	Lock	-	-

NOTICE:

Be careful not to touch any part of the circuit board other than the specified areas.

(b) Lock the 4 screws to secure the circuit board replacement jig to the circuit board.

NOTICE:

When locking the screws of the circuit board replacement jig, do not apply excessive force to the screws, otherwise the circuit board replacement jig may be damaged.

HINT:

Make sure that the screws of the circuit board replacement jig are securely locked.

(c) Turn the 4 knobs of the circuit board replacement jig clockwise and secure the 4 screws of the circuit board replacement jig.

(d) Check that the vibration dampening connectors are released.

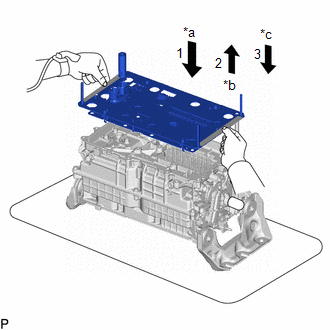

(e) While holding the circuit board replacement jig by the ribs, align the circuit board replacement jig and circuit board with the guide pins and lower them evenly onto inverter with converter assembly, checking that the terminals connect appropriately.

*a	Align and lower circuit board replacement jig and circuit board
*b	Check terminals
*c	Set circuit board replacement jig and circuit board on sealing surface
	Rib

(f) Evenly lift the circuit board replacement jig and circuit board to the top of the guide pins and check the terminals.

HINT:

Be careful not to remove the circuit board replacement jig and circuit board from the guide pins.

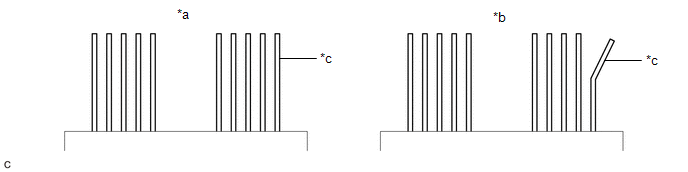

(g) After confirming that the terminals are not bent or damaged, lower the circuit board replacement jig and circuit board evenly along the guide pins and set them on the inverter with converter assembly.

HINT:

Make sure that the circuit board replacement jig is evenly and completely contacting the sealing surface of the inverter with converter assembly.

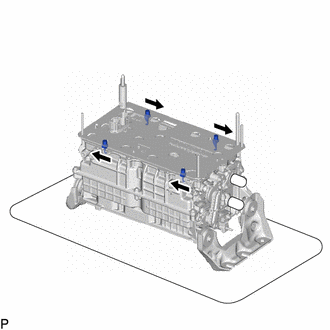

(h) Turn the 4 knobs of the circuit board replacement jig counterclockwise and release the 4 screws of the circuit board replacement jig.

(i) Unlock the 4 circuit board replacement jig screws as shown in the illustration.

Unlock

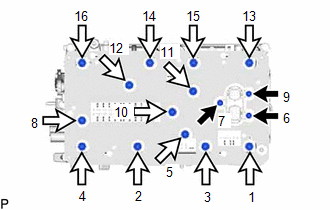

(j) Temporarily install 16 new bolts evenly in several steps in the order shown in the illustration, and then tighten them to the specified torque.

Torque:

Bolt (A) :

2.5 N·m {25 kgf·cm, 22 in·lbf}

Bolt (B) :

3.4 N·m {35 kgf·cm, 30 in·lbf}

	Bolt (A)
	Bolt (B)

(k) Check the torque of the 16 bolts in the order shown in the illustration.

Torque:

Bolt (A) :

2.5 N·m {25 kgf·cm, 22 in·lbf}

Bolt (B) :

3.4 N·m {35 kgf·cm, 30 in·lbf}

NOTICE:

Make sure that the bolts are securely contacting the circuit board.

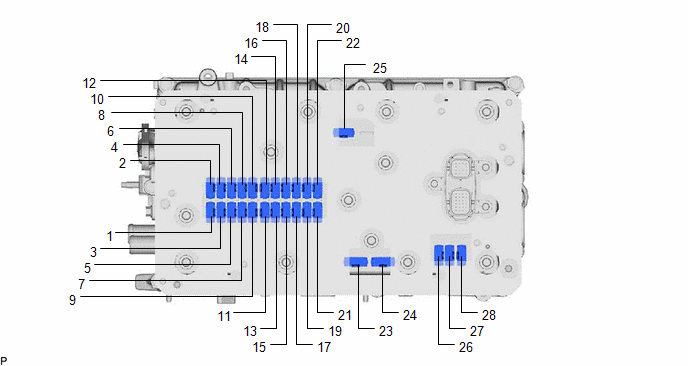

(l) Push in the 28 vibration absorption connectors until connected in the order shown in the illustration.

(m) Visually check that the vibration dampening connectors are securely connected.

HINT:

The vibration dampening connectors can be determined to be connected if they are level with the circuit board replacement jig.

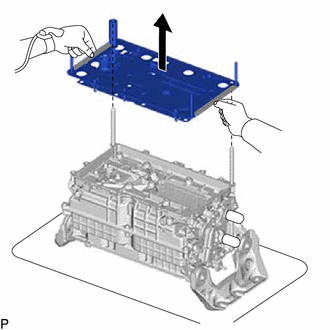

(n) While holding the circuit board replacement jig by the ribs, evenly lift the circuit board replacement jig straight up and remove it.

Rib

HINT:

Make sure that the circuit board replacement jig screws are released before removing the circuit board replacement jig.

(o) Confirm that the following conditions are met before continuing work:

(1) All of the vibration dampening connectors are securely connected.

(2) All of the screws are installed and tightened to the specified torque.

(3) The circuit board is free of foreign matter.

(4) The circuit board is not damaged.

(p) Clean the seal packing removal cover.

NOTICE:

Completely remove any seal packing and foreign matter from the seal packing removal cover using compressed air or a vacuum cleaner.

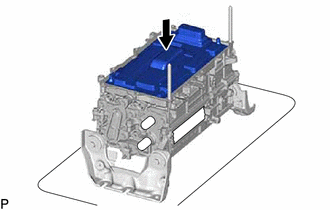

(q) Install the seal packing removal cover to the inverter with converter assembly.

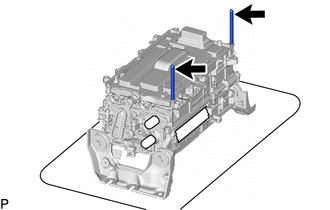

(r) Remove the 2 guide pins by hand.

3. INSTALL INVERTER UPPER COVER

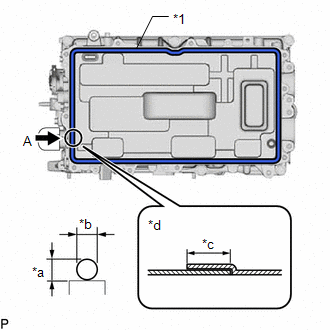

(a) Starting from point A and moving clockwise, apply seal packing (diameter: 3.0 mm (0.118 in.)) in a continuous line as shown in the illustration. Seal Packing: Toyota Genuine Seal Packing 1207F NOTICE: Install the inverter upper cover with in 3 minutes of applying seal packing. Tighten the bolts within 15 minutes of applying seal packing.

*1 Seal Packing *a 3.0 mm (0.118 in.) *b 3.0 mm (0.118 in.) *c Approximately 20 mm *d View A

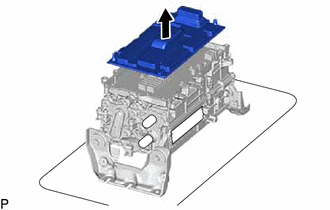

(b) Remove the seal packing removal cover. NOTICE: Slowly remove the seal packing removal cover without touching the seal packing surface.

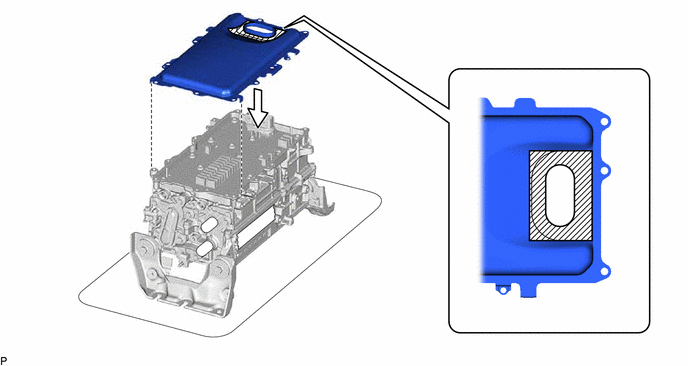

(c) Using the low voltage connectors of the motor generator control ECU kit as a reference, temporarily install a new inverter upper cover.

Area to Push

-

-

(d) Cover the low voltage connectors of the motor generator control ECU kit with masking tape.

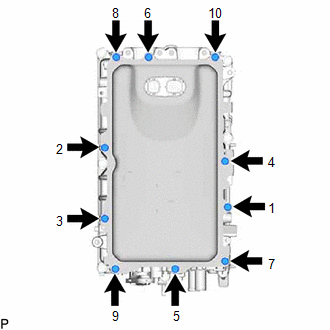

(e) Temporarily install the 10 bolts evenly in several steps in the order shown in the illustration, and then tighten them to the specified torque. Torque: 8.4 N·m {86 kgf·cm, 74 in·lbf}

(f) Check the torque of the 10 bolts in the order shown in the illustration.

Torque:

8.4 N·m {86 kgf·cm, 74 in·lbf}

NOTICE:

Make sure that the bolts are securely contacting the inverter upper cover.

4. INSTALL INVERTER PROTECTOR

Click here

5. INSTALL WIRE HARNESS CLAMP BRACKET

Click here

6. INSTALL INVERTER WITH CONVERTER ASSEMBLY

Click here

7. OPERATION CHECK

HINT:

After the repair, perform the operation checks as follows. Then check for DTCs again.

(a) Operation check 1

(1) Connect the Techstream to the DLC3.

(2) Turn the power switch on (IG), turn the Techstream on and clear the DTCs.

(3) Turn the power switch on (READY).

(4) Warm up the engine with the shift lever in P and the A/C turned off until the engine stops.

HINT:

The engine will stop automatically when it is warmed up.

(5) Depress the accelerator pedal with the shift lever in P to start the engine.

(6) As soon as the engine starts, release the accelerator pedal and wait until the engine stops.

(7) Move the shift lever to D and creep the vehicle forward 5 m (16.4 ft.) with the engine stopped and without depressing the accelerator pedal.

NOTICE:

Confirm the safety of the surrounding area before moving the vehicle.

(8) Move the shift lever to R and creep the vehicle backward 5 m (16.4 ft.) with the engine stopped and without depressing the accelerator pedal.

NOTICE:

Confirm the safety of the surrounding area before moving the vehicle.

(b) Operation check 2

HINT:

The current at the AMD terminal cannot be measured directly because of space limitations. Measure the current flowing at the auxiliary battery instead.

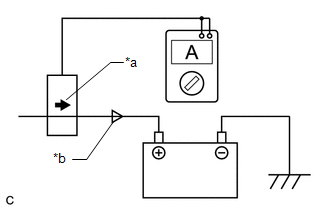

(1) Connect the AC/DC 400 A probe of the tester to the positive (+) auxiliary battery cable.

*a Probe Direction *b Current Flowing to Auxiliary Battery

(2) Turn the power switch on (READY) and leave the vehicle as it is until the electric current flowing to the auxiliary battery becomes 10 A or less.

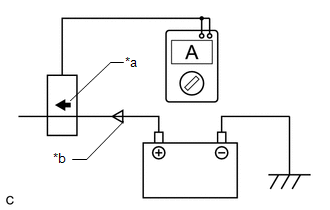

(3) Change the orientation of the AC/DC 400 A probe.

*a Probe Direction *b Current Flowing from Auxiliary Battery

(4) Measure the current flowing from the auxiliary battery with the power switch on (READY), the headlight position switch and blower motor switch in the HI position, and the rear window defogger turned on.

Standard Current:

(5) Turn the power switch off.
