Lexus ES: Components

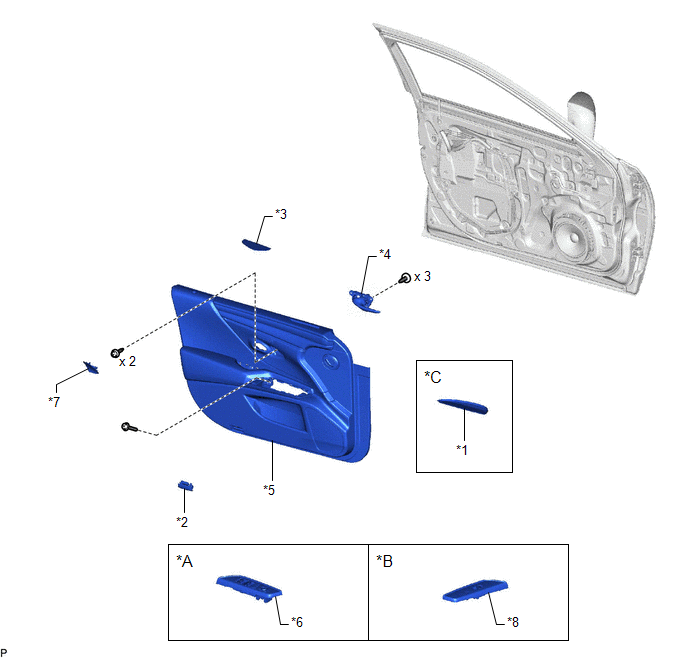

COMPONENTS

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*C

w/ Illumination

-

-

*1

BOX BOTTOM MAT

*2

COURTESY LIGHT ASSEMBLY

*3

DOOR ARMREST COVER

*4

FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

*5

FRONT DOOR TRIM BOARD SUB-ASSEMBLY

*6

MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

*7

NO. 2 DOOR TRIM PAD

*8

POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

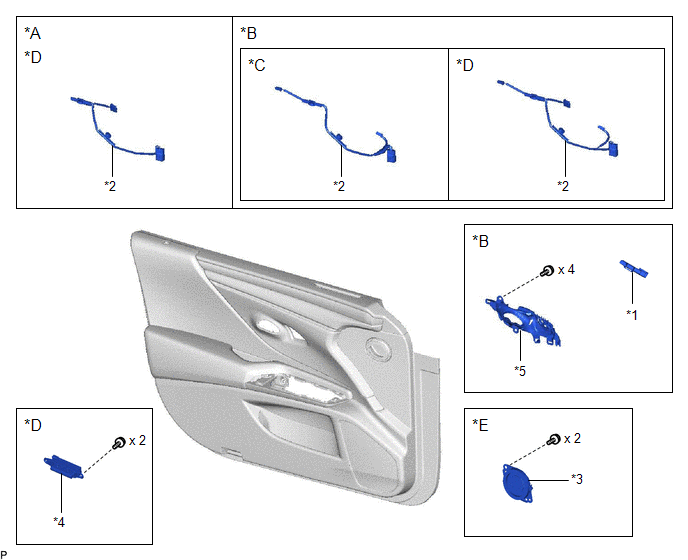

ILLUSTRATION

*A

w/o Illumination

*B

w/ Illumination

*C

w/o Seat Memory Switch

*D

w/ Seat Memory Switch

*E

for 17 Speakers

-

-

*1

FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY

*2

FRONT DOOR WIRE

*3

FRONT NO. 4 SPEAKER ASSEMBLY

*4

SEAT MEMORY SWITCH

*5

FRONT DOOR INSIDE HANDLE BEZEL

-

-

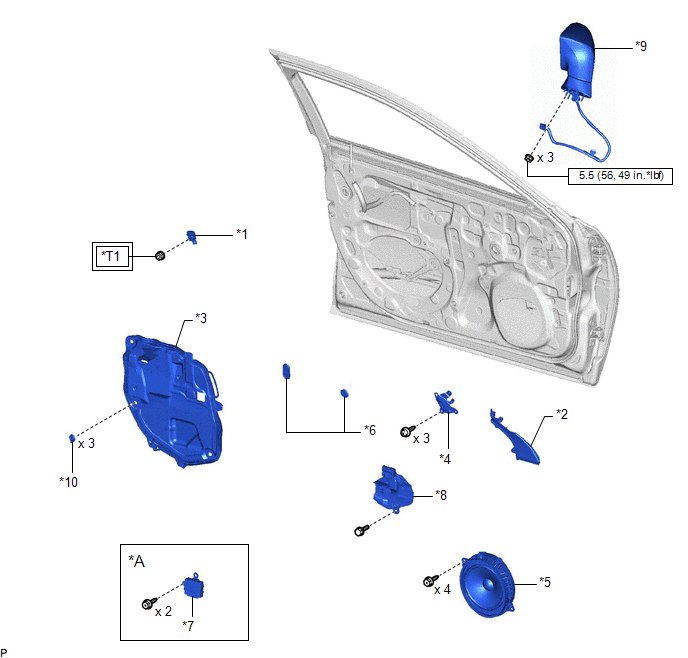

ILLUSTRATION

*A

w/ Memory

-

-

*1

DOOR SIDE AIRBAG SENSOR

*2

FRONT DOOR LOWER FRAME BRACKET GARNISH

*3

FRONT DOOR SERVICE HOLE COVER

*4

FRONT DOOR TRIM BRACKET

*5

FRONT NO. 1 SPEAKER ASSEMBLY

*6

HOLE PLUG

*7

OUTER MIRROR CONTROL ECU ASSEMBLY

*8

OUTER MIRROR INSTALL HOLE COVER

*9

OUTER REAR VIEW MIRROR ASSEMBLY

*10

FRONT DOOR WEATHERSTRIP CLIP

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque

*T1

for TMC Made:

5.0 (51, 44 in.*lbf)

for TMMK Made:

9.0 (92, 80 in.*lbf)

-

-

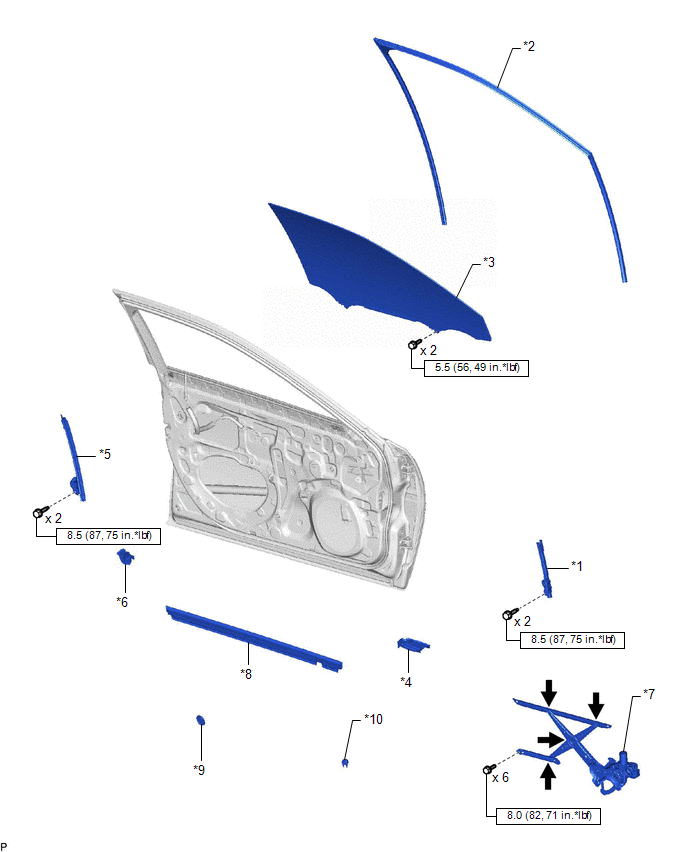

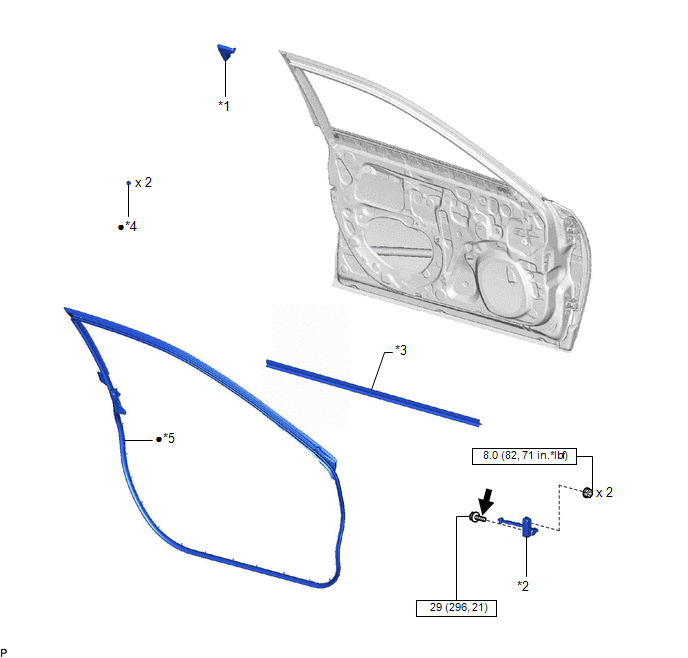

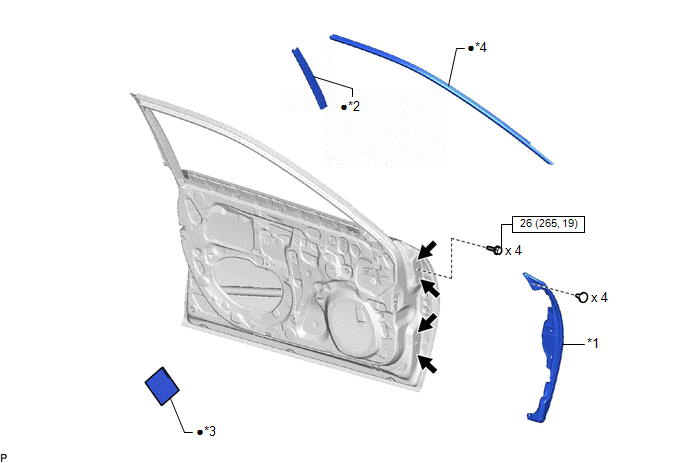

ILLUSTRATION

*1

FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

*2

FRONT DOOR GLASS RUN

*3

FRONT DOOR GLASS SUB-ASSEMBLY

*4

FRONT DOOR PANEL PROTECTOR

*5

FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

*6

FRONT DOOR VENT SEAL

*7

FRONT DOOR WINDOW REGULATOR ASSEMBLY

*8

FRONT DOOR INNER GLASS WEATHERSTRIP

*9

HOLE PLUG

*10

FRONT DOOR NO. 2 SERVICE HOLE COVER

N*m (kgf*cm, ft.*lbf): Specified torque

MP grease

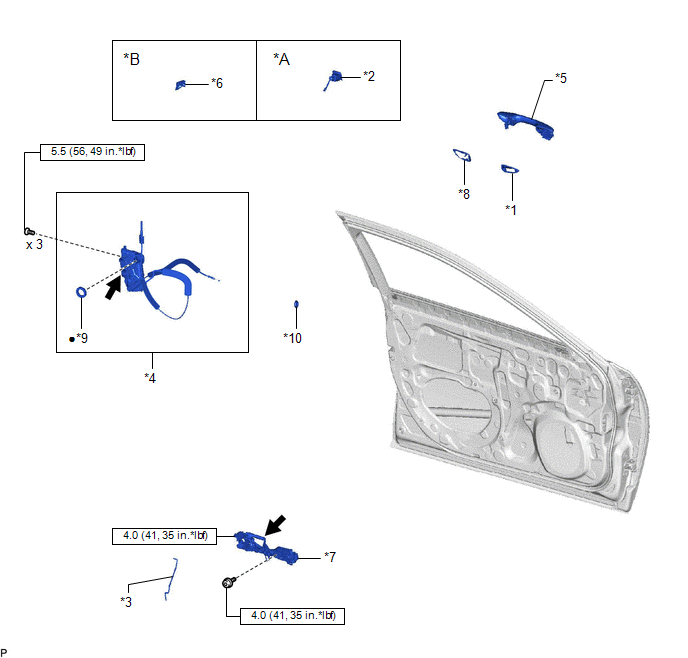

ILLUSTRATION

*A

for Driver Side

*B

for Front Passenger Side

*1

FRONT DOOR FRONT OUTSIDE HANDLE PAD

*2

FRONT DOOR LOCK CYLINDER ASSEMBLY

*3

FRONT DOOR LOCK OPEN ROD

*4

FRONT DOOR LOCK WITH MOTOR ASSEMBLY

*5

FRONT DOOR OUTSIDE HANDLE ASSEMBLY

*6

FRONT DOOR OUTSIDE HANDLE COVER

*7

FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

*8

FRONT DOOR REAR OUTSIDE HANDLE PAD

*9

DOOR LOCK WIRING HARNESS SEAL

*10

HOLE PLUG

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

MP grease

-

-

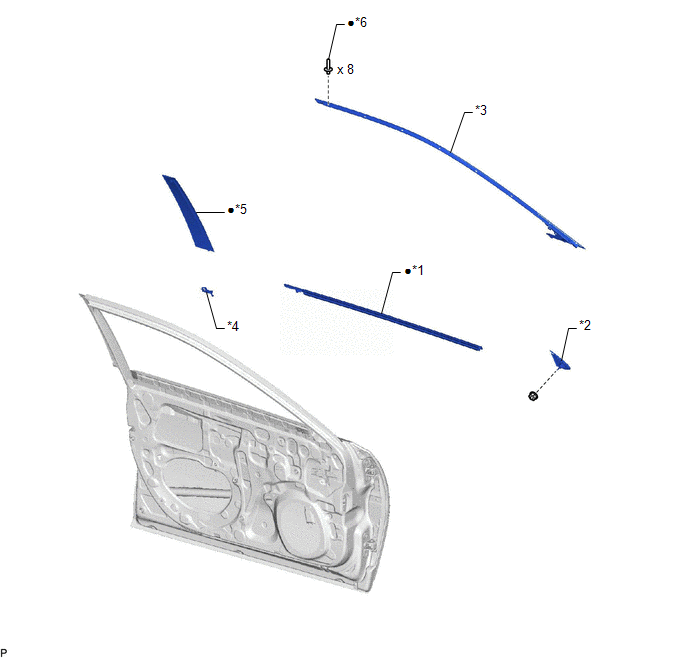

ILLUSTRATION

*1

DOOR UPPER FRAME GARNISH

*2

FRONT DOOR CHECK ASSEMBLY

*3

FRONT DOOR NO. 2 WEATHERSTRIP

*4

FRONT DOOR PANEL CUSHION

*5

FRONT DOOR WEATHERSTRIP

-

-

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

Precoated part

ILLUSTRATION

*1

FRONT DOOR BELT MOULDING ASSEMBLY

*2

FRONT DOOR FRONT LOWER FRAME UPPER COVER

*3

FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

*4

FRONT DOOR REAR OUTSIDE SEAL

*5

FRONT DOOR REAR WINDOW FRAME MOULDING

*6

RIVET

Non-reusable part

-

-

ILLUSTRATION

*1

FRONT DOOR NO. 3 WEATHERSTRIP

*2

FRONT DOOR REAR INNER BLACK OUT TAPE

*3

FRONT DOOR SILENCER PAD

*4

FRONT INNER BLACK OUT TAPE

N*m (kgf*cm, ft.*lbf): Specified torque

Non-reusable part

Anti-rust coating

-

-
