Lexus ES: Disassembly

DISASSEMBLY

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front door removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced (for Gasoline Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

  • Outer rear view mirror assembly LH
  • Outer rear view mirror assembly RH

Side television camera view adjustment

Panoramic view monitor system

  • Front door window regulator sub-assembly
  • Front door glass sub-assembly
  • Front door glass run

Initialize power window control system

  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)
Necessary Procedure After Parts Removed/Installed/Replaced (for HV Model)

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative auxiliary battery terminal

Perform steering sensor zero point calibration

Lane Control System

Pre-collision System

Parking Support Brake System*

Lighting System

Memorize steering angle neutral point

Parking Assist Monitor System

Panoramic View Monitor System

Initialize power trunk lid system

Power Trunk Lid System

  • Outer rear view mirror assembly LH
  • Outer rear view mirror assembly RH

Side television camera view adjustment

Panoramic view monitor system

  • Front door window regulator sub-assembly
  • Front door glass sub-assembly
  • Front door glass run

Initialize power window control system

  • Auto up and down function
  • Jam protection function
  • Remote control function
  • Key-linked function
  • Wireless transmitter-linked function
  • Key-off operation function
  • Catch protection function
  • Window open warning function

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. PRECAUTION

CAUTION:

Be sure to read Precaution thoroughly before servicing.

for Gasoline Model:

Click here

for HV Model:

Click here

NOTICE:

After turning the engine switch (for Gasoline Model) or power switch (for HV Model) off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

for 2GR-FKS:

Click here

for A25A-FXS:

Click here

CAUTION:

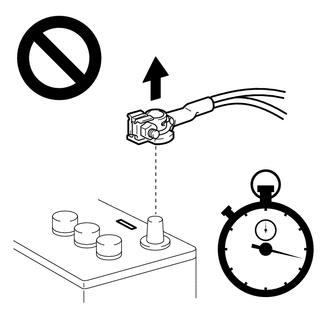

  • Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.
  • If an airbag deploys for any reason, it may cause a serious injury.

3. REMOVE DOOR ARMREST COVER

(a) Remove the door armrest cover.

4. REMOVE BOX BOTTOM MAT (w/ Illumination)

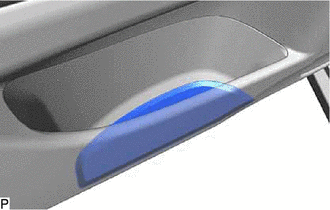

(a) Remove the box bottom mat.

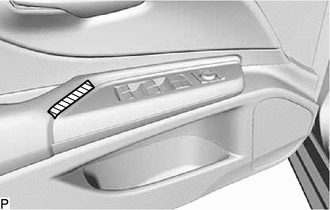

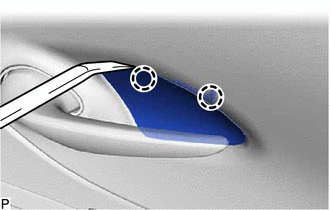

5. REMOVE NO. 2 DOOR TRIM PAD

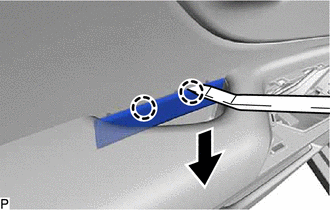

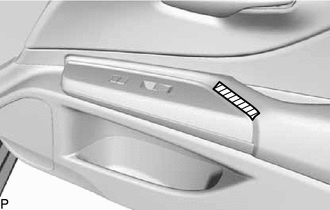

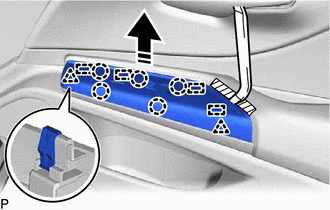

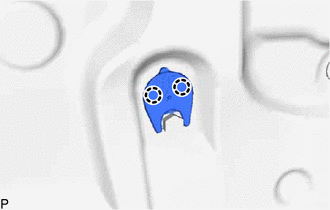

(a) Using a moulding remover, disengage the 2 claws to remove the No. 2 door trim pad.

6. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Driver Side)

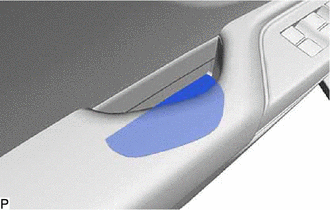

(a) Apply protective tape to the front door trim board sub-assembly as shown in the illustration.

Protective Tape

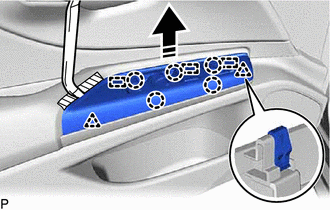

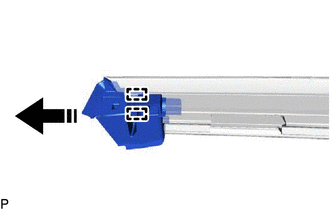

(b) Using a moulding remover, disengage the 2 clips, 5 claws and 3 guides as shown in the illustration.

Remove in this Direction

(c) Disconnect the connector to remove the multiplex network master switch assembly with front door upper armrest base panel.

7. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL (for Front Passenger Side)

(a) Apply protective tape to the front door trim board sub-assembly as shown in the illustration.

Protective Tape

(b) Using a moulding remover, disengage the 2 clips, 5 claws and 4 guides as shown in the illustration.

Remove in this Direction

(c) Disconnect the connector to remove the power window regulator switch assembly with front door upper armrest base panel.

8. REMOVE COURTESY LIGHT ASSEMBLY

Click here

9. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY

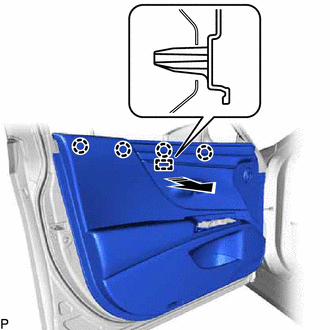

(a) Using a moulding remover, disengage the 2 claws as shown in the illustration.

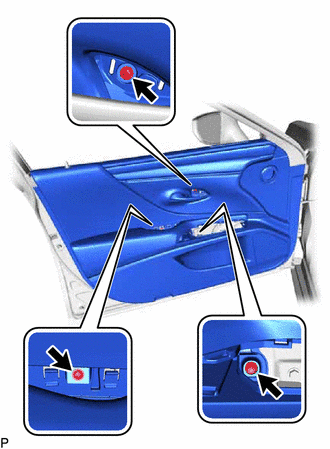

(b) Remove the 3 screws.

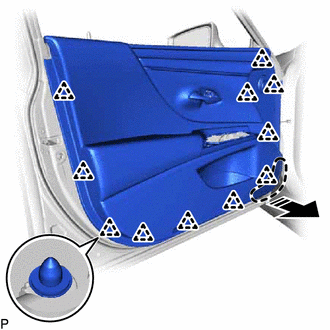

(c) Disengage the 11 clips as shown in the illustration.

Place Hand Here

Remove in this Direction

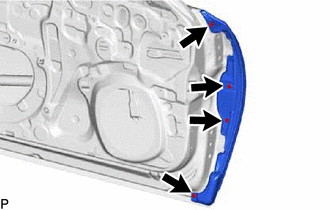

(d) Disengage the 4 claws and guide as shown in the illustration.

Remove in this Direction

(e) for 17 Speakers:

(1) Disconnect the connector.

(f) w/ Seat Memory Switch or w/ Illumination:

(1) Disconnect the connector.

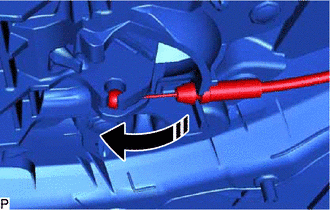

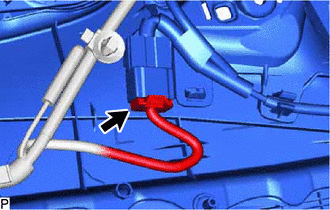

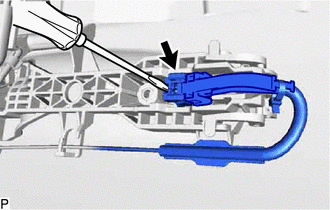

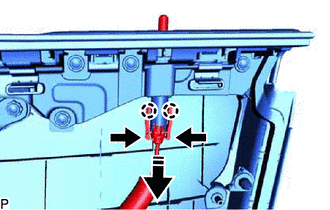

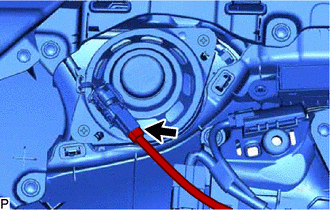

(g) Disconnect the front door lock open lever remote control cable as shown in the illustration.

Remove in this Direction

(h) Disengage the 2 claws as shown in the illustration to disconnect the front door inside lock/unlock knob locking cable and remove the front door trim board sub-assembly.

Push

Remove in this Direction

10. REMOVE FRONT DOOR INSIDE HANDLE SUB-ASSEMBLY

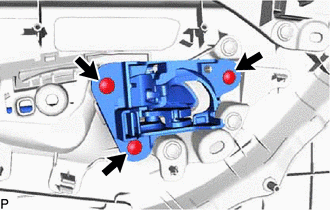

(a) Remove the 3 screws and front door inside handle sub-assembly.

11. REMOVE SEAT MEMORY SWITCH (w/ Seat Memory Switch)

Click here

12. REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY (w/ Illumination)

Click here

13. REMOVE FRONT NO. 4 SPEAKER ASSEMBLY (for 17 Speakers)

Click here

14. REMOVE FRONT DOOR WIRE (w/o Illumination)

(a) w/ Seat Memory Switch:

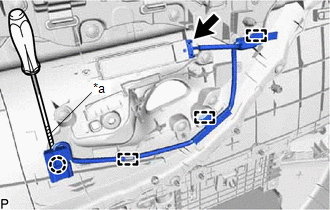

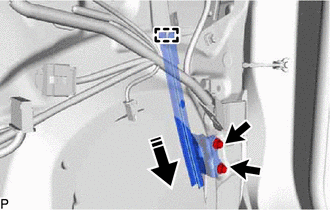

(1) Using a screwdriver with its tip wrapped with protective tape, disengage the claw.

*a

Protective Tape

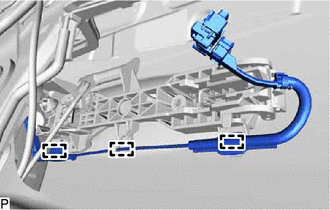

(2) Disengage the 3 clamps.

(3) Disconnect the connector to remove the front door wire.

15. REMOVE FRONT DOOR WIRE (w/ Illumination)

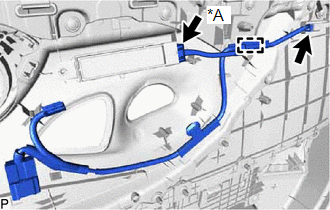

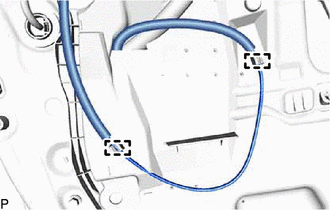

(a) Disengage the clamp.

*A

w/ Seat Memory Switch

(b) Disconnect each connector to remove the front door wire.

16. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH

(a) Disengage the 2 clips to remove the front door lower frame bracket garnish.

17. REMOVE FRONT DOOR TRIM BRACKET

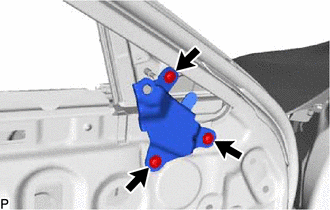

(a) Remove the 3 screws and front door trim bracket.

18. REMOVE OUTER MIRROR CONTROL ECU ASSEMBLY (w/ Memory)

Click here

19. REMOVE HOLE PLUG

Click here

20. REMOVE OUTER MIRROR INSTALL HOLE COVER

Click here

21. REMOVE OUTER REAR VIEW MIRROR ASSEMBLY

Click here

22. REMOVE FRONT NO. 1 SPEAKER ASSEMBLY

Click here

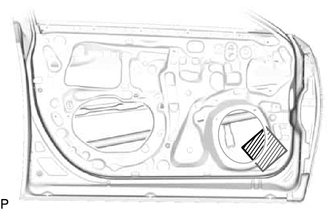

23. REMOVE FRONT DOOR SERVICE HOLE COVER

(a) Disengage the 2 clamps.

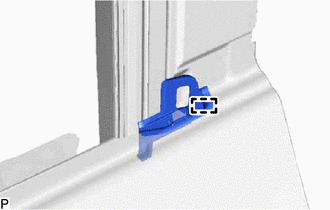

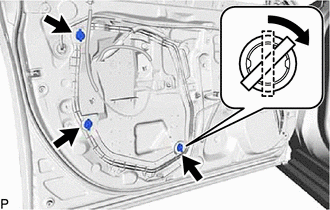

(b) Turn each front door weatherstrip clip 45 degrees as shown in the illustration and remove the 3 front door weatherstrip clips.

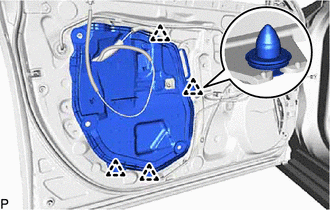

(c) Disengage the 4 clips to remove the front door service hole cover.

24. REMOVE DOOR SIDE AIRBAG SENSOR

Click here

25. REMOVE FRONT DOOR VENT SEAL

(a) Disengage the 2 clips and disconnect the front door weatherstrip as shown in the illustration.

(b) Remove the front door inner glass weatherstrip with front door vent seal as shown in the illustration.

Remove in this Direction

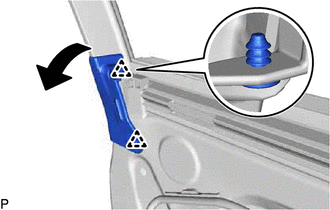

(c) Disengage the 2 guides to remove the front door vent seal from the front door inner glass weatherstrip as shown in the illustration.

Remove in this Direction

26. REMOVE FRONT DOOR PANEL PROTECTOR

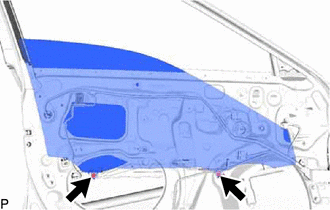

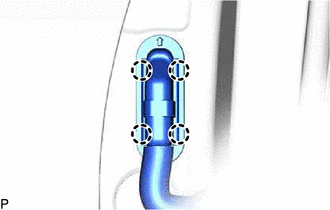

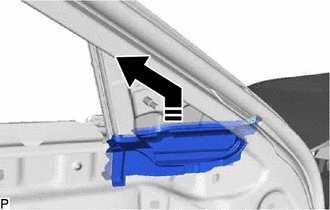

(a) Remove the front door panel protector as shown in the illustration.

Remove in this Direction

27. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY

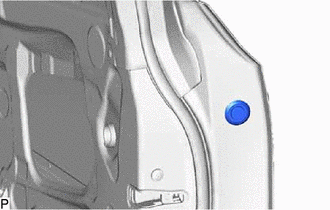

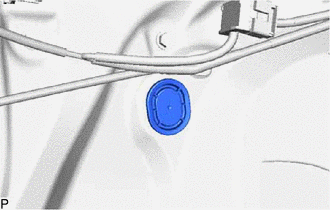

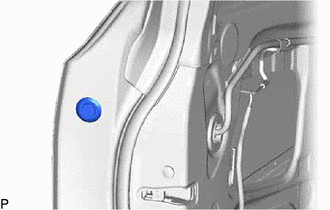

(a) Remove the hole plug.

(b) for Driver Side:

(1) Connect the multiplex network master switch assembly.

(c) for Front Passenger Side:

(1) Connect the power window regulator switch assembly.

(d) Connect the cable to the negative (-) auxiliary battery terminal.

(e) Turn the engine switch (for Gasoline Model) or power switch (for HV Model) on (IG).

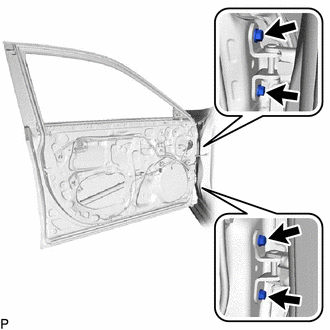

(f) Move the front door glass sub-assembly so that the door glass bolts can be seen.

(g) Turn the engine switch (for Gasoline Model) or power switch (for HV Model) off.

(h) Disconnect the cable from the negative (-) auxiliary battery terminal.

(i) for Driver Side:

(1) Disconnect the multiplex network master switch assembly.

(j) for Front Passenger Side:

(1) Disconnect the power window regulator switch assembly.

(k) Remove the 2 bolts.

NOTICE:

After the bolts are removed, do not allow the front door glass sub-assembly to fall.

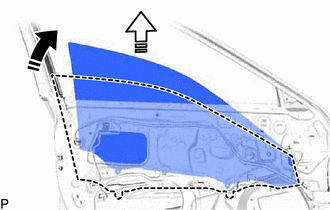

(l) Remove the front door glass sub-assembly as shown in the illustration.

Remove in this Direction (1)

Remove in this Direction (2)

NOTICE:

Do not damage the front door glass sub-assembly.

28. REMOVE FRONT DOOR WINDOW REGULATOR ASSEMBLY

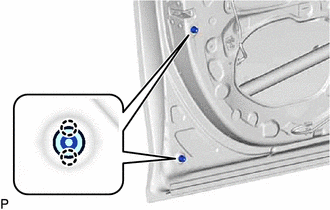

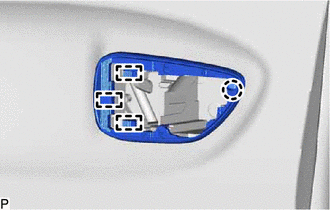

(a) Disengage the 2 claws to remove the front door No. 2 service hole cover.

(b) Disconnect the connector.

*a

Temporary Bolt

(c) Loosen the temporary bolt.

NOTICE:

Do not remove the temporary bolt. If the temporary bolt is removed, the front door window regulator assembly may fall and cause damage.

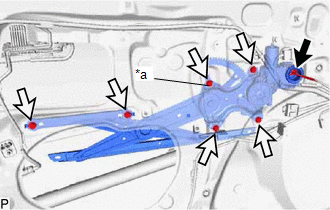

(d) Remove the 5 bolts and front door window regulator assembly.

(e) Remove the temporary bolt from the front door window regulator assembly.

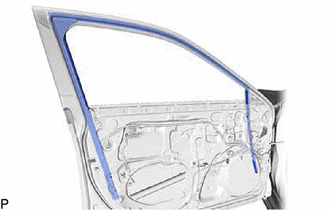

29. REMOVE FRONT DOOR GLASS RUN

(a) Remove the front door glass run.

30. REMOVE FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

(a) Remove the 2 bolts.

Remove in this Direction

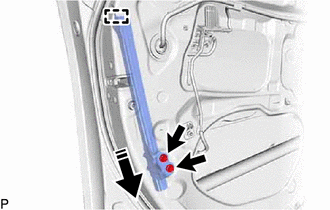

(b) Disengage the guide and remove the front door rear lower frame sub-assembly as shown in the illustration.

31. REMOVE FRONT DOOR FRONT LOWER FRAME SUB-ASSEMBLY

(a) Remove the 2 bolts.

Remove in this Direction

(b) Disengage the guide and remove the front door front lower frame sub-assembly as shown in the illustration.

32. REMOVE FRONT DOOR OUTSIDE HANDLE ASSEMBLY

(a) Using a screwdriver, disengage the 2 claws as shown in the illustration.

Disengage in this Direction

(b) Using a screwdriver, disconnect the connector.

(c) Disengage the 3 clamps.

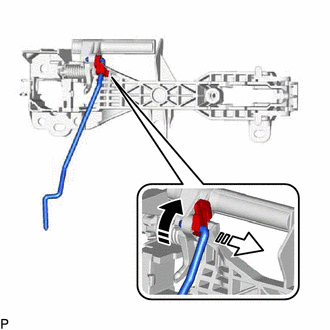

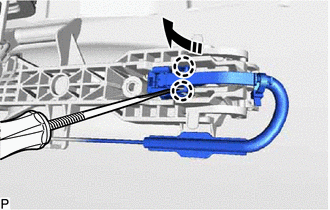

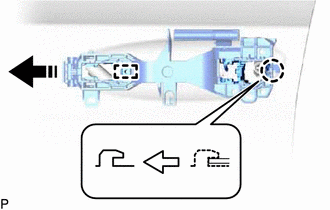

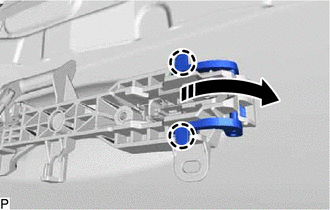

(d) Disengage the 2 claws and move the lever as shown in the illustration.

Disengage in this Direction

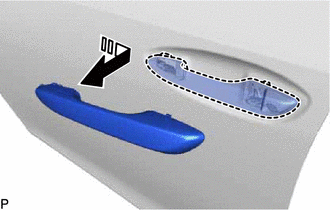

(e) Remove the front door outside handle assembly as shown in the illustration.

Remove in this Direction

33. REMOVE FRONT DOOR LOCK CYLINDER ASSEMBLY (for Driver Side)

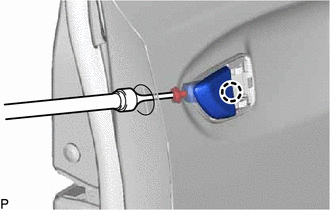

(a) Remove the hole plug.

(b) Using a T30 "TORX" socket wrench, loosen the screw and remove the front door lock cylinder assembly.

HINT:

The screw cannot be removed because it is integrated into the front door outside handle frame sub-assembly.

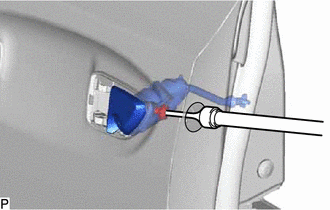

34. REMOVE FRONT DOOR OUTSIDE HANDLE COVER (for Front Passenger Side)

(a) Remove the hole plug.

(b) Using a T30 "TORX" socket wrench, loosen the screw.

HINT:

The screw cannot be removed because it is integrated into the front door outside handle frame sub-assembly.

(c) Disengage the claw to remove the front door outside handle cover.

35. REMOVE FRONT DOOR FRONT OUTSIDE HANDLE PAD

(a) Disengage the 2 claws and guide to remove the front door front outside handle pad.

36. REMOVE FRONT DOOR REAR OUTSIDE HANDLE PAD

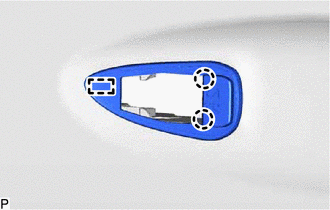

(a) Disengage the claw and 3 guides to remove the front door rear outside handle pad.

37. REMOVE FRONT DOOR LOCK WITH MOTOR ASSEMBLY

Click here

38. REMOVE FRONT DOOR OUTSIDE HANDLE FRAME SUB-ASSEMBLY

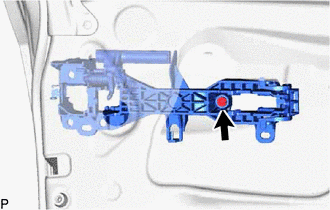

(a) Using a T30 "TORX" socket wrench, remove the screw.

(b) Disengage the claw and guide to remove front door outside handle frame sub-assembly as shown in the illustration.

Remove in this Direction

39. REMOVE FRONT DOOR LOCK OPEN ROD

(a) Remove the front door lock open rod as shown in the illustration.

Remove in this Direction (1)

Remove in this Direction (2)

40. REMOVE FRONT DOOR CHECK ASSEMBLY

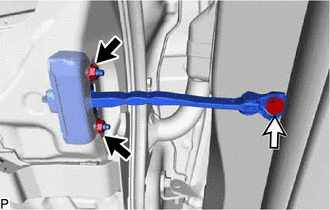

(a) Remove the 2 nuts, bolt and front door check assembly.

Nut

Bolt

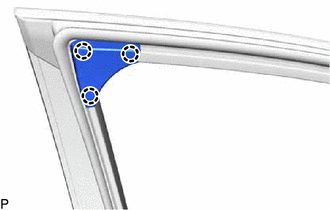

41. REMOVE DOOR UPPER FRAME GARNISH

(a) Disengage the 3 claws to remove the door upper frame garnish.

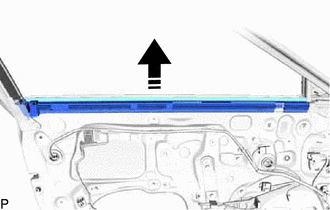

42. REMOVE FRONT DOOR WEATHERSTRIP

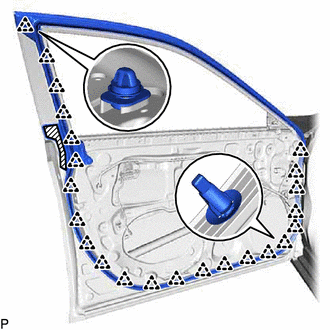

(a) Using a clip remover, disengage the 23 clips and remove the front door weatherstrip.

Double-sided Tape

43. REMOVE FRONT DOOR PANEL CUSHION

(a) Disengage the 4 claws to remove the 2 front door panel cushions.

44. REMOVE FRONT DOOR NO. 2 WEATHERSTRIP

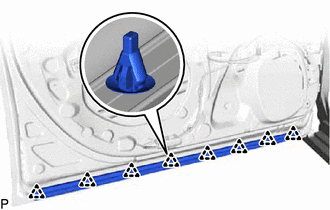

(a) Disengage the 8 clips to remove the front door No. 2 weatherstrip.

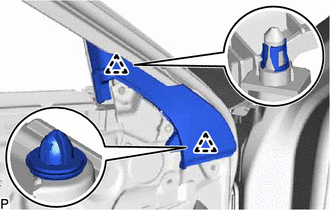

45. REMOVE FRONT DOOR FRONT LOWER FRAME UPPER COVER

Click here

46. REMOVE FRONT DOOR BELT MOULDING ASSEMBLY

Click here

47. REMOVE FRONT DOOR REAR WINDOW FRAME MOULDING

Click here

48. REMOVE FRONT DOOR OUTSIDE MOULDING SUB-ASSEMBLY

Click here

49. REMOVE FRONT DOOR REAR OUTSIDE SEAL

(a) Disengage the guide to remove the front door rear outside seal.

50. REMOVE FRONT DOOR REAR INNER BLACK OUT TAPE

Click here

51. REMOVE FRONT INNER BLACK OUT TAPE

Click here

52. REMOVE FRONT DOOR SILENCER PAD

(a) Remove the front door silencer pad.

53. REMOVE FRONT DOOR NO. 3 WEATHERSTRIP

(a) Disengage the 4 claws to separate the grommet.

(b) Disconnect the connector.

(c) Remove the 4 bolts and front door panel sub-assembly.

NOTICE:

To prevent damage, when removing the front door panel sub-assembly, make sure that there are enough people available to hold it securely.

(d) Remove the 4 clips and front door No. 3 weatherstrip.

READ NEXT:

 Adjustment

ADJUSTMENT CAUTION / NOTICE / HINT *a Centering Bolt *b Standard Bolt HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. Center

 Reassembly

REASSEMBLY CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. PRECAUTION NOTICE: After turning the engin

 Reassembly

REASSEMBLY CAUTION / NOTICE / HINT HINT: Use the same procedure for the RH side and LH side. The following procedure is for the LH side. PROCEDURE 1. PRECAUTION NOTICE: After turning the engin

SEE MORE:

 Control Module Communication Bus Off (U0073,U0100,U0126,U0129,U0140,U0163,U0233,U023B,U0265,U1110)

DESCRIPTION These DTCs are stored if there is a malfunction in the CAN communication system connected to the parking assist ECU. HINT: If CAN communication system DTCs are stored, they may also be stored in other systems. DTC No. Detection Item DTC Detection Condition Trouble Area U0073

 IG2 Signal Circuit Short to Auxiliary Battery (P253012)

DESCRIPTION The hybrid vehicle control ECU compares the IG2 signal to the IG control status signal sent from the certification ECU (smart key ECU assembly) to detect a stuck on malfunction of the IG2 signal. HINT: If DTC P253012 is stored, the power switch will turn off (READY off). DTC No. Det

© 2016-2024 Copyright www.lexguide.net
