Lexus ES: Inspection

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Battery Plug (for Lithium-ion Battery) / Inspection

INSPECTION

PROCEDURE

1. INSPECT ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY

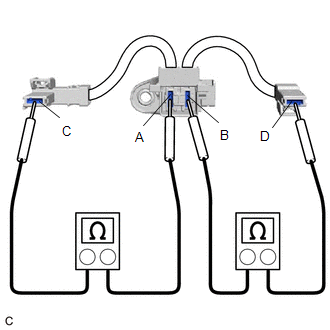

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

A - C

Always

Below 1 Ω

B - D

Below 1 Ω

If the result is not as specified, replace the electric vehicle battery plug assembly.
