Lexus ES: Components
COMPONENTS

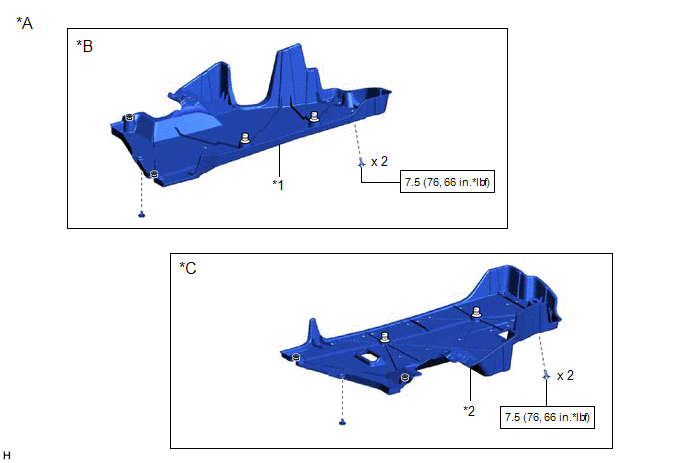

ILLUSTRATION
*A | for Gasoline Model | *B | for RH Side |
*C | for LH Side | - | - |
*1 | NO. 1 FLOOR UNDER COVER | *2 | NO. 2 FLOOR UNDER COVER |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

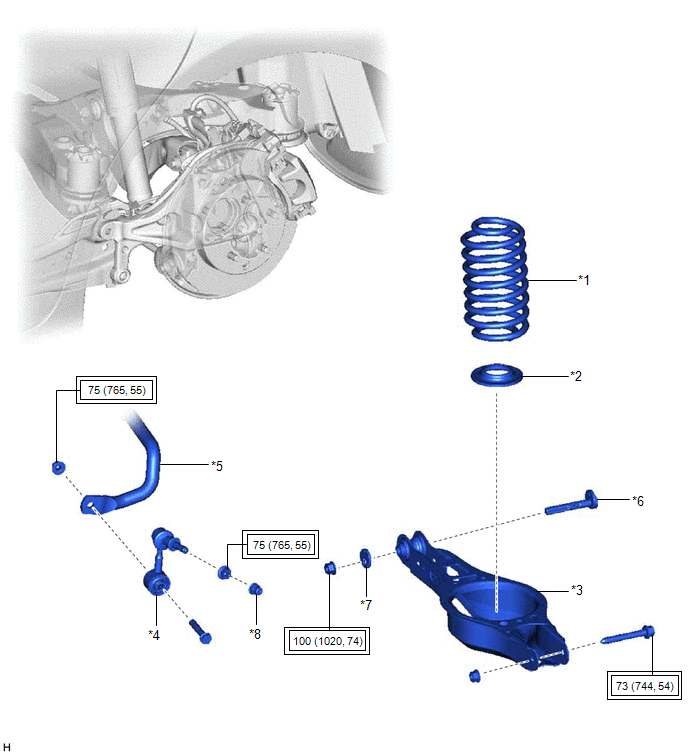

ILLUSTRATION
*1 | REAR COIL SPRING | *2 | REAR LOWER COIL SPRING INSULATOR |
*3 | REAR NO. 2 SUSPENSION ARM ASSEMBLY | *4 | REAR STABILIZER LINK ASSEMBLY |
*5 | REAR STABILIZER BAR | *6 | REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY |
*7 | NO. 2 CAMBER ADJUST CAM | *8 | CAP |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

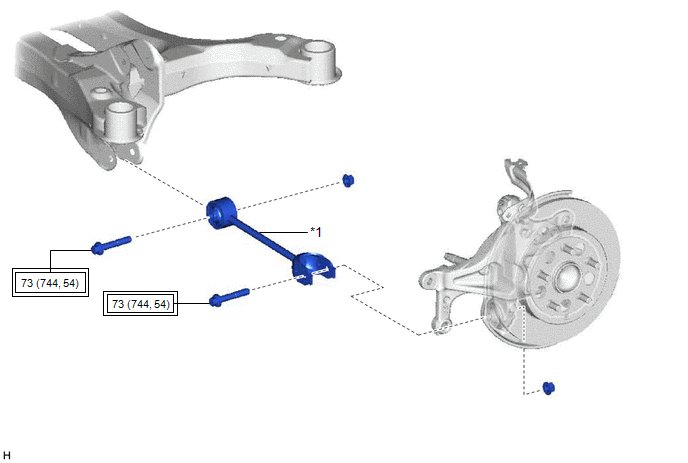

ILLUSTRATION
*1 | REAR NO. 1 SUSPENSION ARM ASSEMBLY | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
