Lexus ES: System Diagram

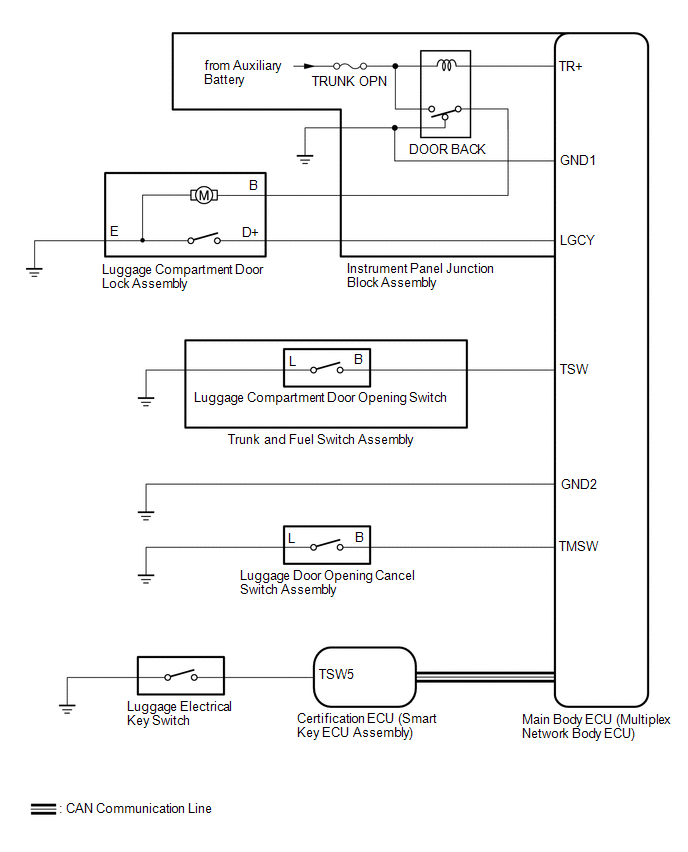

SYSTEM DIAGRAM
Communication Table | Sender | Receiver | Signal | Line |
|---|---|---|---|
| Certification ECU (Smart Key ECU Assembly) | Main Body ECU (Multiplex Network Body ECU) | Luggage compartment door lock assembly open operation signal | CAN |
READ NEXT:
How To Proceed With Troubleshooting
CAUTION / NOTICE / HINT HINT:
Use the following procedure to troubleshoot the luggage compartment door opener system.
*: Use the Techstream.
PROCEDURE 1. VEHICLE BROUGHT TO WORKSHOP
Operation Check
OPERATION CHECK BASIC FUNCTION INSPECTION (a) When the trunk and fuel switch assembly (luggage compartment door opening switch) is pressed, check that the luggage compartment door unlatches. (b) While
Customize Parameters
CUSTOMIZE PARAMETERS CUSTOMIZE LUGGAGE COMPARTMENT DOOR OPENER SYSTEM NOTICE:
When the customer requests a change in a function, first make sure that the function can be customized.
Be sure to ma
