Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Rear Door Opening Trim Weatherstrip / Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

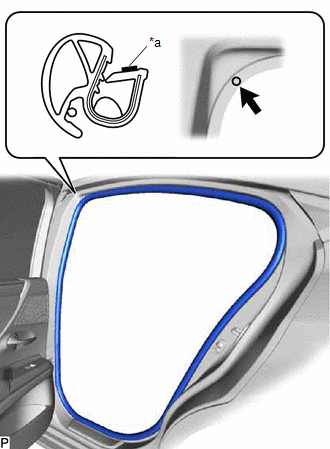

(a) Align the alignment mark on the rear door opening trim weatherstrip with the flange on the vehicle body indicated by the arrow in the illustration, and install the rear door opening trim weatherstrip.

*a

Alignment Mark

Flange Position

NOTICE:

  • Make sure to align the alignment mark with the flange when installing the weatherstrip. If the alignment mark is not aligned, water ingress may occur.
  • After installation, check that the corners fit correctly.

HINT:

  • Make sure to install the part of the rear door opening trim weatherstrip near the alignment mark first.
  • The color of the alignment marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

    Alignment Mark:

    Location

    Color

    for LH Side

    White

    for RH Side

    Yellow Orange

2. INSTALL ROOF HEADLINING ASSEMBLY

Click here
