Lexus ES (XZ10) Service Manual / Vehicle Interior / Door / Hatch / Luggage Compartment Door Weatherstrip / Removal

REMOVAL

PROCEDURE

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT

Click here

2. REMOVE SPARE WHEEL COVER TRAY

Click here

3. REMOVE REAR FLOOR FINISH PLATE

Click here

4. REMOVE LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

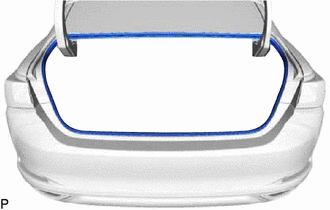

(a) Remove the luggage compartment door weatherstrip.
