Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during rear bumper assembly removal/installation are shown below.

Necessary Procedure After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function When Necessary Procedures are not Performed

Link

*: When performing learning using the Techstream.

Click here

Disconnect cable from negative battery terminal

Perform steering sensor zero point calibration

Lane Control System (for Gasoline Model)

Pre-collision System (for Gasoline Model)

Parking Support Brake System (for Gasoline Model)*

Lighting System (for Gasoline Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for Gasoline Model)

Panoramic View Monitor System (for Gasoline Model)

Initialize power trunk lid system

Power Trunk Lid System (for Gasoline Model)

Rear bumper assembly

  • Measure ultrasonic sensor detection angle
  • Ultrasonic sensor detection angle registration
  • Parking Support Alert System (for Gasoline Model)
  • Parking Support Brake System (for Gasoline Model)

NOTICE:

  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Audio and Visual System)
  • After the engine switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the engine switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) battery terminal. (for Navigation System)

HINT:

If the rear bumper assembly is damaged, there is a possibility that the installation area of the blind spot monitor sensor may be deformed and the blind spot monitor system may not operate correctly. Visually inspect the blind spot monitor sensor installation area (vehicle body, stud bolts) to make sure it is not damaged.

Click here

If damage is found in the visual inspection, check the installation condition of the blind spot monitor sensor, and adjust the installation position of the blind spot monitor sensor as necessary.

PROCEDURE

1. PRECAUTION (w/ Hands Free Power Trunk Lid)

NOTICE:

After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (w/ Hands Free Power Trunk Lid)

Click here

3. REMOVE REAR COMBINATION LIGHT COVER LH

Click here

4. REMOVE REAR COMBINATION LIGHT COVER RH

HINT:

Use the same procedure as for the LH side.

5. REMOVE REAR BUMPER ASSEMBLY

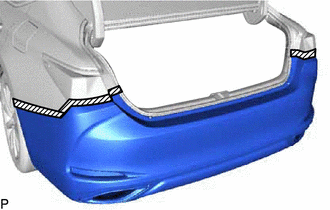

(a) Apply protective tape around the rear bumper assembly as shown in the illustration.

Protective Tape

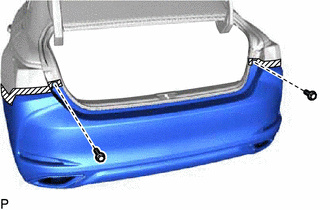

(b) Remove the 2 screws.

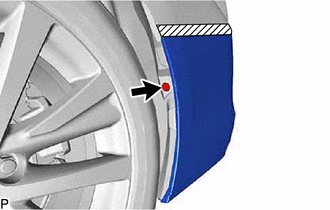

(c) Remove the clip.

HINT:

Use the same procedure for the RH side and LH side.

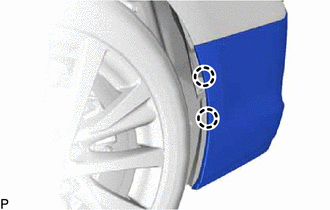

(d) Disengage the 2 claws.

HINT:

Use the same procedure for the RH side and LH side.

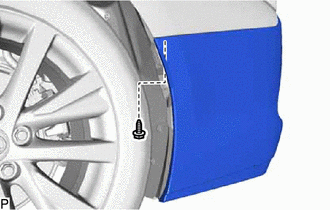

(e) Remove the screw.

HINT:

Use the same procedure for the RH side and LH side.

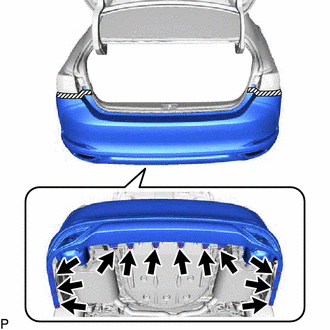

(f) Remove the 12 clips.

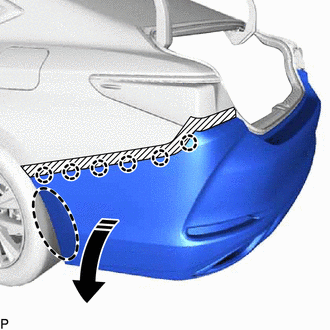

(g) Disengage the 6 claws as shown in the illustration.

Place Hand Here

Remove in this Direction

HINT:

Use the same procedure for the RH side and LH side.

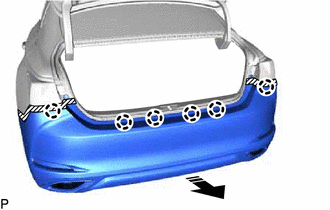

(h) Disengage the 6 claws to remove the rear bumper assembly as shown in the illustration.

Remove in this Direction

(i) w/ Wire Harness:

(1) Disconnect the connector to remove the rear bumper assembly.
