Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during cam timing control motor with EDU assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Auxiliary battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Control System (for HV Model)

Pre-collision System (for HV Model)

Parking Support Brake System (for HV Model)*

Lighting System (for HV Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for HV Model)

Panoramic View Monitor System (for HV Model)

Initialize power trunk lid system

Power Trunk Lid System (for HV Model)

  • Replacement of cam timing control motor with EDU assembly
  • Removal and installation of a cam timing control motor with EDU assembly

Inspection after repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)
  • This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

    Click here

PROCEDURE

1. PRECAUTION

NOTICE:

After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

2. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

Click here

3. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

Click here

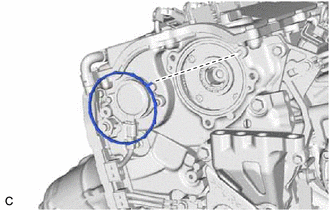

4. REMOVE CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY

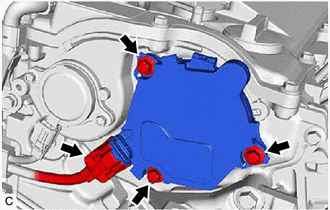

(a) Disconnect the cam timing control motor with EDU assembly connector.

(b) Remove the 3 bolts and cam timing control motor with EDU assembly from the No. 2 timing gear cover assembly.

NOTICE:

If the cam timing control motor with EDU assembly has been struck or dropped, replace it.

5. REMOVE CAM TIMING CONTROL MOTOR O-RING

(a) Remove the cam timing control motor O-ring from the No. 2 timing gear cover assembly.
