Lexus ES: Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during EGR cooler assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

*: When performing learning using the Techstream.

Click here

Auxiliary battery terminal is disconnected/reconnected

Perform steering sensor zero point calibration

Lane Control System (for HV Model)

Pre-collision System (for HV Model)

Parking Support Brake System (for HV Model)*

Lighting System (for HV Model)

Memorize steering angle neutral point

Parking Assist Monitor System (for HV Model)

Panoramic View Monitor System (for HV Model)

Initialize power trunk lid system

Power Trunk Lid System (for HV Model)

Replacement of inverter with converter assembly

Resolver learning

  • DTCs are stored
  • Slight vibration at a vehicle speed of 5 km/h (3 mph) or less
  • Shock or vibration during acceleration

Replacement of ECM

Perform Vehicle Identification Number (VIN) registration

MIL comes on

Gas leaks from exhaust system is repaired

Inspection After Repair

  • Poor idle, etc.
  • Engine start function, etc.

NOTICE:

  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Audio and Visual System)
  • After the power switch is turned off, the radio receiver assembly records various types of memory and settings. As a result, after turning the power switch off, make sure to wait at least 85 seconds before disconnecting the cable from the negative (-) auxiliary battery terminal. (for Navigation System)

PROCEDURE

1. DRAIN ENGINE COOLANT (for Engine)

Click here

2. REMOVE INVERTER WITH CONVERTER ASSEMBLY

Click here

3. REMOVE EGR COOLER ASSEMBLY

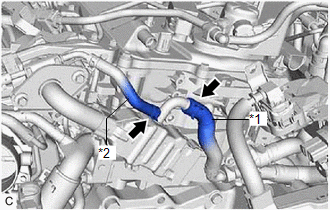

(a) Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.

*1

No. 3 Water By-pass Hose

*2

No. 4 Water By-pass Hose

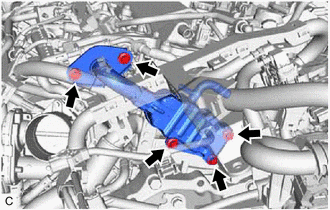

(b) Remove the 5 bolts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.

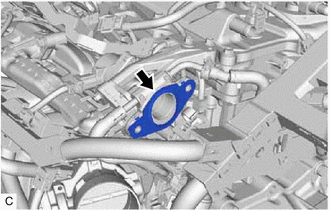

(c) Remove the EGR valve gasket from the EGR valve assembly.

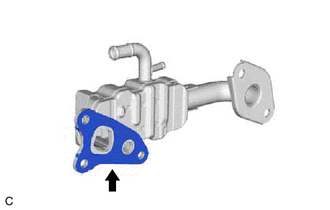

(d) Remove the EGR cooler gasket from the EGR cooler assembly.
