Lexus ES: Removal

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (engine Control) / Active Control Engine Mount (for Front Side) / Removal

REMOVAL

PROCEDURE

1. REMOVE VACUUM SWITCHING VALVE (for Active Control Engine Mount System)

Click here

2. REMOVE V-BANK COVER SUB-ASSEMBLY

Click here

3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

4. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

5. REMOVE NO. 1 ENGINE UNDER COVER

Click here

6. REMOVE NO. 3 ENGINE UNDER COVER

Click here

7. REMOVE SUSPENSION TOWER DAMPER (w/ Performance Damper)

Click here

8. REMOVE FRONT ENGINE MOUNTING INSULATOR

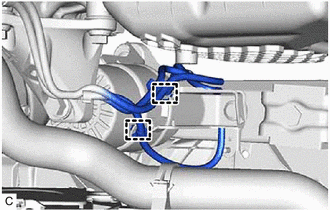

(a) Disengage the 2 clamps to separate the vacuum hoses from the front engine mounting insulator.

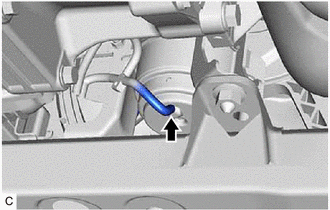

(b) Disconnect the vacuum hose from the front engine mounting insulator.

(c) Support the engine assembly with transaxle using a jack and wooden block.

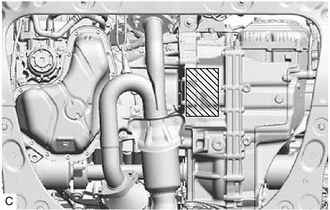

Wooden Block Placement Location

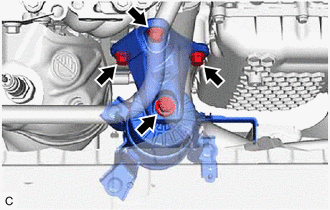

(d) Remove the 4 bolts and front engine mounting bracket.

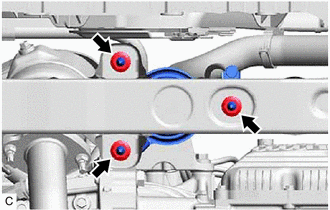

(e) Remove the 3 nuts and front engine mounting insulator from the front frame assembly.

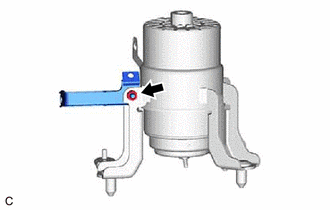

(f) Remove the nut and stay from the front engine mounting insulator.
