Lexus ES (XZ10) Service Manual / Engine & Hybrid System / 2gr-fks (engine Control) / Active Control Engine Mount(for Rear Side) / Components

COMPONENTS

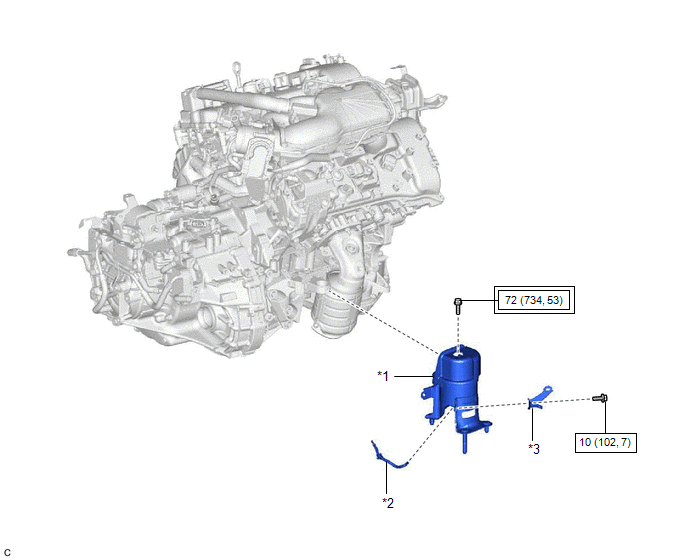

ILLUSTRATION

*1

REAR ENGINE MOUNTING INSULATOR

*2

VACUUM HOSE

*3

WIRE HARNESS CLAMP BRACKET

-

-

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

N*m (kgf*cm, ft.*lbf): Specified torque
