INSTALLATION

PROCEDURE

1. INSTALL REAR ENGINE MOUNTING INSULATOR

(a) Engage the clamp and install the vacuum hose to the rear engine mounting insulator.

(b) Install the wire harness clamp bracket to the rear engine mounting insulator with the bolt.

Torque:

10 N·m {102 kgf·cm, 7 ft·lbf}

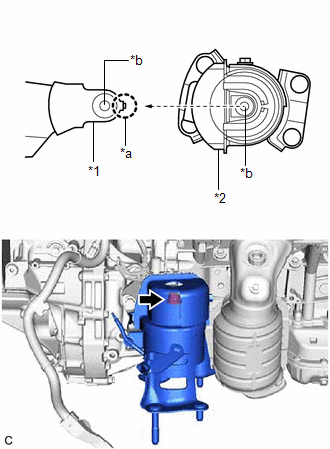

(c) Align the hole of the rear engine mounting insulator with the protrusion of the rear engine mounting bracket, slide the rear engine mounting insulator onto the rear engine mounting bracket to align the holes and install the rear engine mounting insulator with the bolt.

Torque:

72 N·m {734 kgf·cm, 53 ft·lbf}

*1

Rear Engine Mounting Bracket

*2

Rear Engine Mounting Insulator

*a

Protrusion

*b

Hole

2. INSTALL FRONT FRAME ASSEMBLY

Click here
