Lexus ES (XZ10) Service Manual / Drivetrain / Drive Shaft / Propeller Shaft / Front Drive Shaft Assembly (for A25a-fxs) / Removal

REMOVAL

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization, or registration) that must be performed after parts are removed and installed, or replaced during front drive shaft assembly removal/installation are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Front wheel alignment adjustment
  1. Clear zero point calibration data.
  2. Perform yaw rate and acceleration sensor zero point calibration.
  • DTCs are stored
  • ABS warning light illuminates
  • Brake warning light / yellow (minor malfunction) illuminates
  • Slip indicator light illuminates
  • VSC disabled or malfunctions

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. REMOVE FRONT WHEELS

Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

Click here

3. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

Click here

4. REMOVE NO. 1 ENGINE UNDER COVER

Click here

5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

Click here

6. REMOVE FRONT FENDER APRON SEAL LH

Click here

7. REMOVE FRONT FENDER APRON SEAL RH

Click here

8. DRAIN HYBRID TRANSAXLE FLUID

Click here

9. REMOVE FRONT AXLE SHAFT NUT

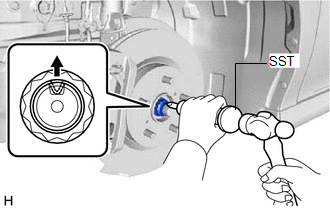

(a) Using SST and a hammer, release the staked part of the front axle shaft nut.

SST: 09930-00010

NOTICE:

Fully loosen the staked part of the front axle shaft nut, otherwise the threads of the drive shaft may be damaged.

(b) While applying the brakes, remove the front axle shaft nut.

10. SEPARATE FRONT SPEED SENSOR (w/ AVS)

Click here

11. SEPARATE FRONT SPEED SENSOR (w/o AVS)

Click here

12. SEPARATE TIE ROD ASSEMBLY

Click here

13. SEPARATE FRONT STABILIZER LINK ASSEMBLY

Click here

14. SEPARATE FRONT LOWER NO. 1 SUSPENSION ARM SUB-ASSEMBLY

Click here

15. SEPARATE FRONT DRIVE SHAFT ASSEMBLY

Click here

16. REMOVE FRONT DRIVE SHAFT ASSEMBLY LH

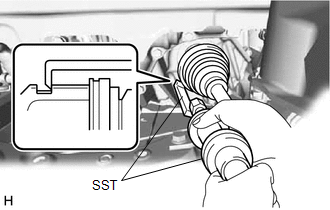

(a) Using SST, remove the front drive shaft assembly LH.

SST: 09520-01011

SST: 09520-20010

09521-02010

09521-02040

09521-02060

NOTICE:

  • Do not damage the front drive shaft oil seal LH.
  • Do not damage the front axle inboard joint boot.
  • Do not drop the front drive shaft assembly LH.

17. REMOVE FRONT DRIVE SHAFT ASSEMBLY RH

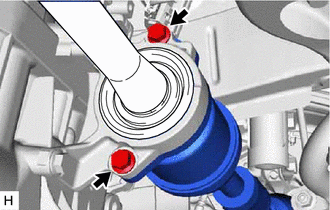

(a) Remove the 2 bolts and pull out the drive shaft together with the drive shaft bearing case sub-assembly.

(b) Remove the front drive shaft assembly RH from the drive shaft bearing bracket.

NOTICE:

  • Do not damage the front drive shaft oil seal RH.
  • Do not damage the front axle inboard joint boot.
  • Do not drop the front drive shaft assembly RH.

HINT:

If it is difficult to disengage the fitting, tap the end of the front drive inboard joint assembly with a brass bar and a hammer.

18. REMOVE FRONT DRIVE SHAFT HOLE SNAP RING

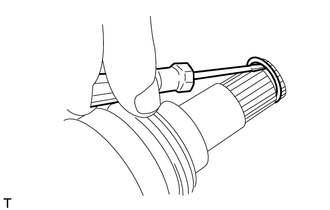

(a) Using a screwdriver, remove the front drive shaft hole snap ring.
