Lexus ES: Reassembly

Lexus ES (XZ10) Service Manual / Vehicle Exterior / Door / Hatch / Hood / Reassembly

REASSEMBLY

PROCEDURE

1. INSTALL HOOD STAY BRACKET LH

Click here

2. INSTALL HOOD STAY BRACKET RH

HINT:

Use the same procedure as for the LH side.

3. INSTALL HOOD SUPPORT ASSEMBLY LH

Click here

4. INSTALL HOOD SUPPORT ASSEMBLY RH

HINT:

Use the same procedure as for the LH side.

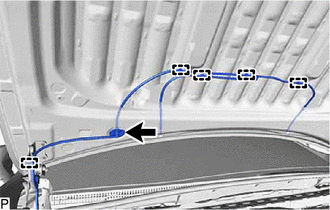

5. CONNECT WASHER HOSE ASSEMBLY

(a) Engage the grommet.

(b) Engage the 5 clamps to connect the washer hose assembly.

6. INSTALL WASHER NOZZLE SUB-ASSEMBLY

Click here

HINT:

Use the same procedure as for the LH side.

7. INSPECT WASHER NOZZLE SUB-ASSEMBLY

Click here

8. ADJUST WASHER NOZZLE SUB-ASSEMBLY

Click here

9. INSTALL HOOD INSULATOR

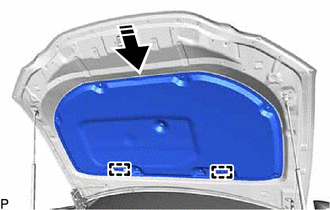

(a) Engage the 2 guides as shown in the illustration.

Install in this Direction

(b) for TMK Made:

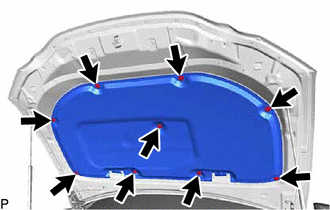

(1) Install the hood insulator with 9 new hood insulator clips.

(c) for TMMK Made:

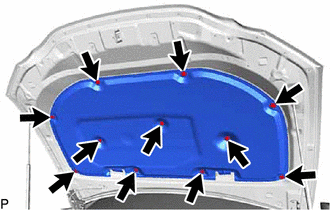

(1) Install the hood insulator with 11 new hood insulator clips.

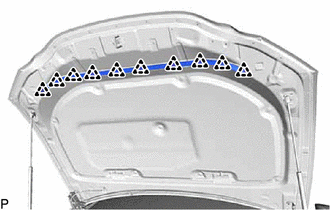

10. INSTALL HOOD CUSHION CENTER

(a) Install the hood cushion center with 10 new hood to cowl top seal clips.
