Lexus ES (XZ10) Service Manual / Steering / Steering Column / Heated Steering Wheel System (for Gasoline Model) / Precaution

PRECAUTION

PRECAUTION FOR DISCONNECTING CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:

When disconnecting the cable from the negative (-) battery terminal, initialize the following system(s) after the cable is reconnected:

System

See Procedure

Lane Control System (for Gasoline Model)

Parking Support Brake System (for Gasoline Model)

Parking Assist Monitor System (for Gasoline Model)

Panoramic View Monitor System (for Gasoline Model)

Pre-collision System (for Gasoline Model)

Power Trunk Lid System (for Gasoline Model)

Lighting System (for Gasoline Model)

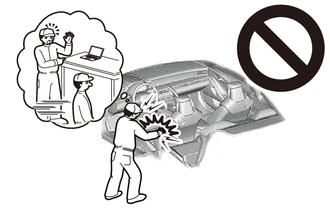

HANDLING PRECAUTIONS FOR SRS AIRBAG SYSTEM

CAUTION:

This vehicle is equipped with a Supplemental Restraint System (SRS). Failure to carry out service operations in the correct sequence could cause the SRS to unexpectedly deploy during servicing. This may cause a serious accident.

Before servicing (including inspection, replacement, removal and installation of parts), be sure to read the precautionary notices for Supplemental Restraint System.

Click here
