Lexus ES: System Diagram

Lexus ES (XZ10) Service Manual / Steering / Steering Column / Heated Steering Wheel System (for Gasoline Model) / System Diagram

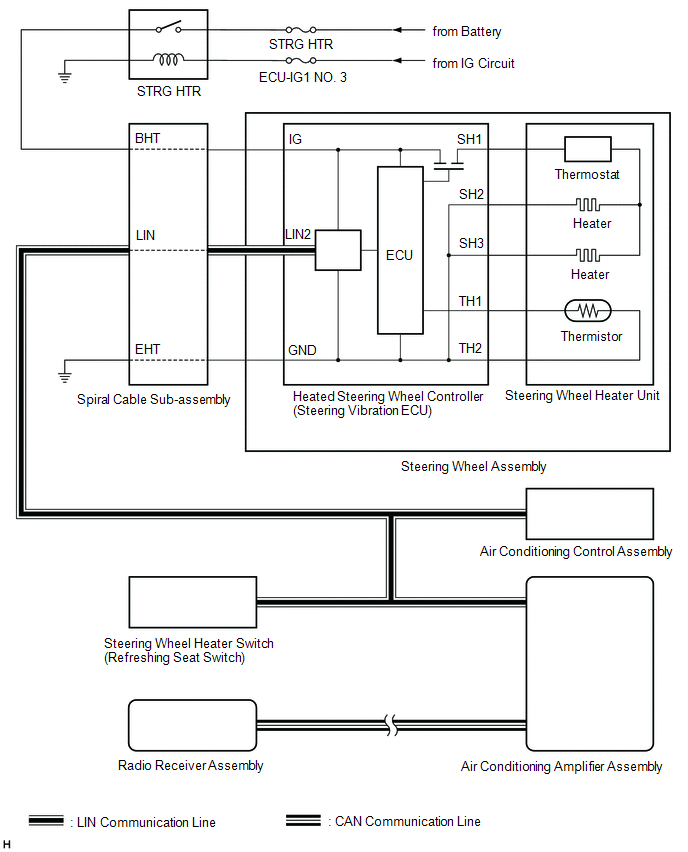

SYSTEM DIAGRAM

SYSTEM DIAGRAM

Communication Table

Sender

Receiver

Signal

Line

Radio Receiver Assembly

Air Conditioning Amplifier Assembly
  • Steering wheel heater switch operation condition
  • Steering wheel heater temperature adjustment switch operation condition
  • Steering wheel heater automatic operation switch condition

CAN
