Lexus ES: Parts Location
PARTS LOCATION
ILLUSTRATION

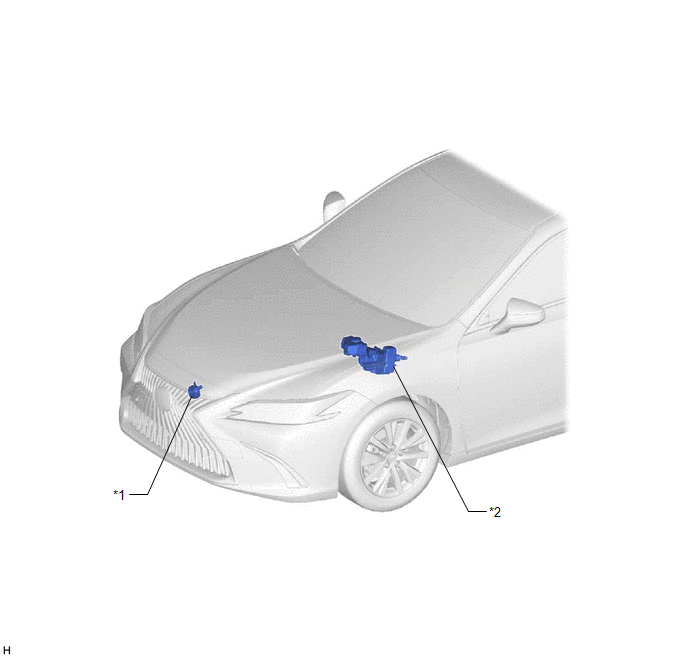

*1 | VEHICLE APPROACHING SPEAKER ASSEMBLY | *2 | SKID CONTROL ECU (BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY) |
ILLUSTRATION

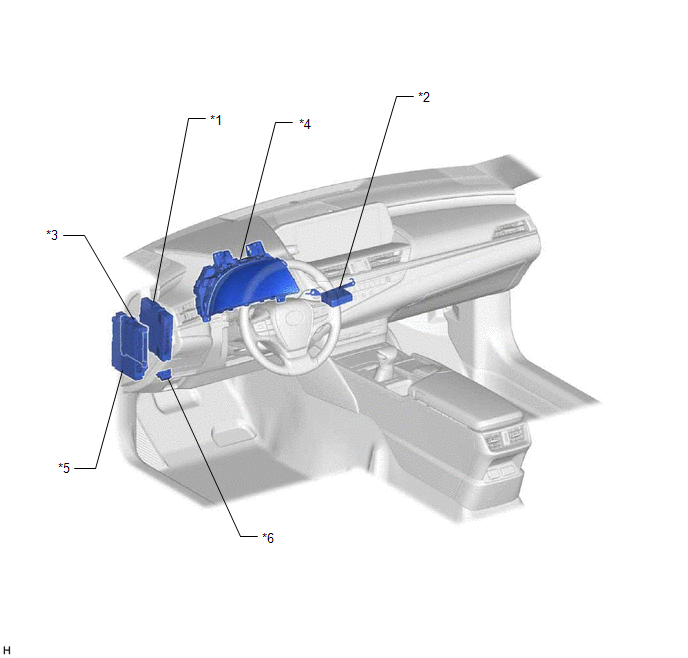

*1 | HYBRID VEHICLE CONTROL ECU | *2 | VEHICLE APPROACHING SPEAKER CONTROLLER |
*3 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *4 | COMBINATION METER ASSEMBLY |
*5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-IG1 NO. 3 FUSE | *6 | DLC3 |
