Lexus ES: Parts Location

PARTS LOCATION

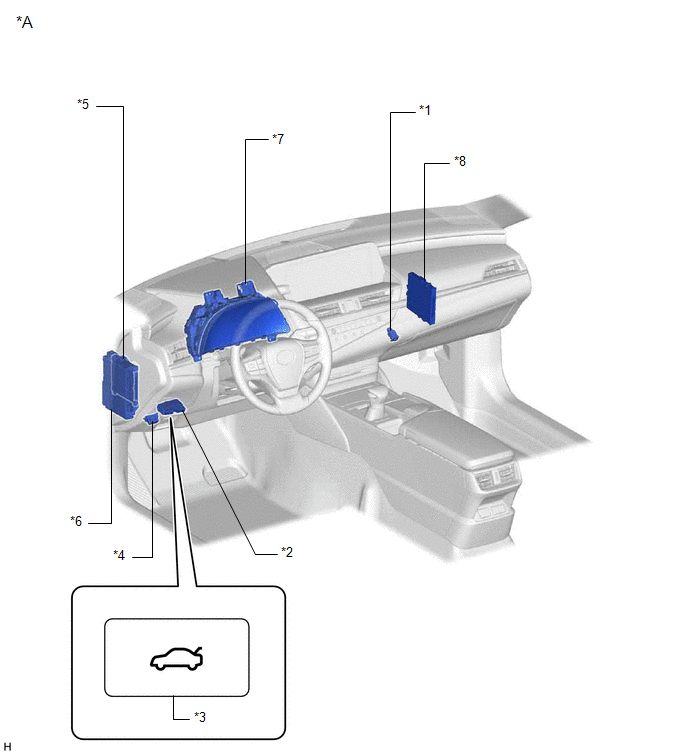

ILLUSTRATION

*1

LUGGAGE DOOR OPENING CANCEL SWITCH ASSEMBLY

*2

TRUNK AND FUEL SWITCH ASSEMBLY

*3

LUGGAGE COMPARTMENT DOOR OPENING SWITCH

*4

DLC3

*5

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-DCC NO. 2 FUSE

- ECU-IG1 NO. 4 FUSE

*7

COMBINATION METER ASSEMBLY

*8

CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

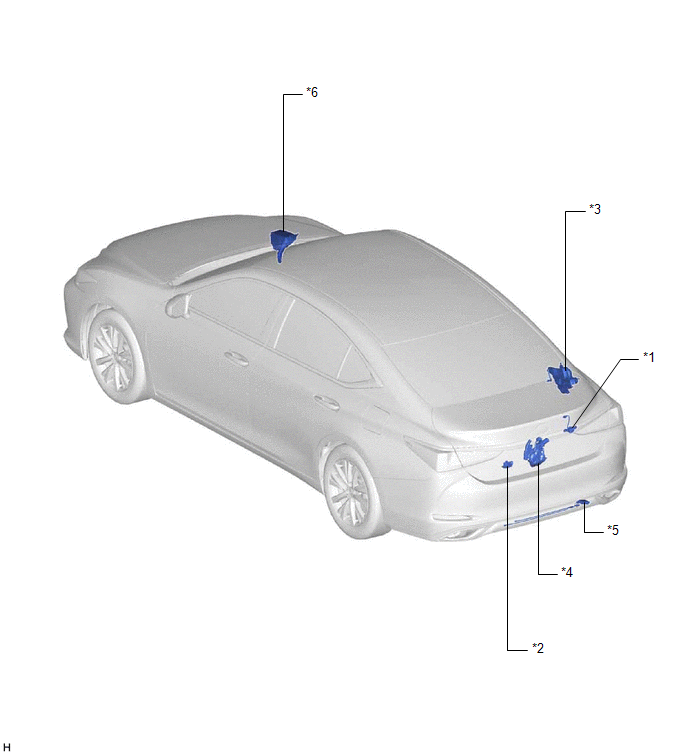

ILLUSTRATION

*1

LUGGAGE ELECTRICAL KEY SWITCH

*2

DOOR CONTROL SWITCH

*3

LUGGAGE CLOSER MOTOR ASSEMBLY

*4

LUGGAGE DOOR CLOSER ASSEMBLY

- CLOSER MOTOR

- PAWL SWITCH

- HALF LATCH SWITCH

*5

KICK DOOR CONTROL SENSOR

*6

NO. 2 ENGINE ROOM RELAY BLOCK AND NO. 2 JUNCTION BLOCK ASSEMBLY

- PTL FUSE
