Lexus ES: Parts Location

PARTS LOCATION

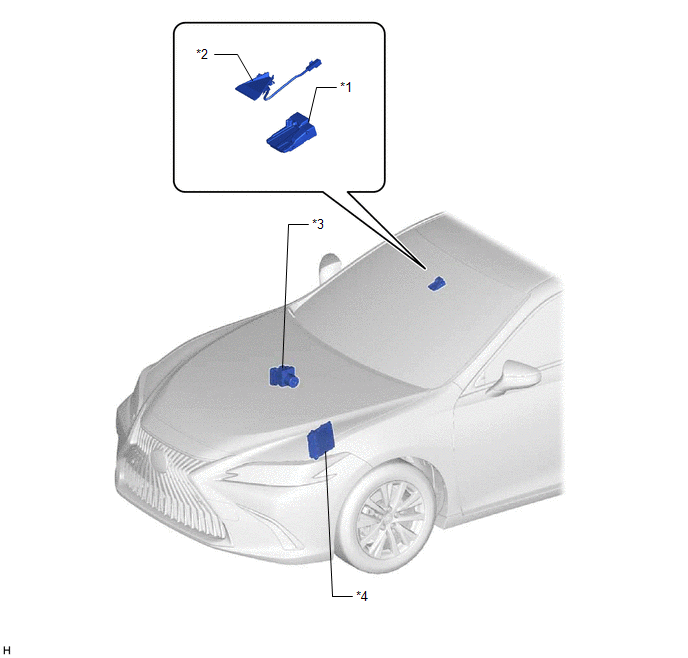

ILLUSTRATION

*1

FORWARD RECOGNITION CAMERA

*2

FORWARD RECOGNITION WITH HEATER HOOD SUB-ASSEMBLY

*3

BRAKE ACTUATOR ASSEMBLY

- SKID CONTROL ECU

*4

ECM

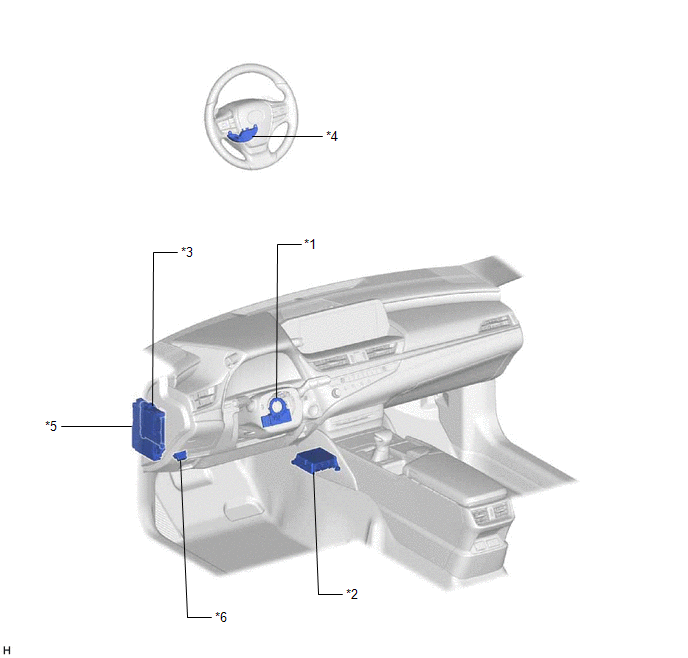

ILLUSTRATION

*1

STEERING SENSOR

*2

AIRBAG ECU ASSEMBLY

- YAW RATE SENSOR

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

STEERING VIBRATION ECU

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG1 NO. 3 FUSE

*6

DLC3
