Lexus ES: Parts Location
Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (engine Control) / Ignition System / Parts Location
PARTS LOCATION

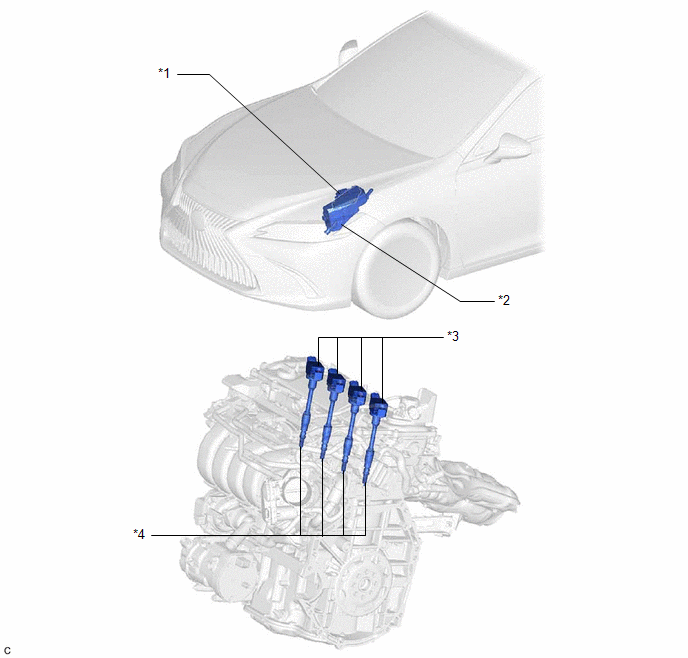

ILLUSTRATION
| *1 | ECM | *2 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - INJ FUSE |
| *3 | IGNITION COIL ASSEMBLY | *4 | SPARK PLUG |
