Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Telematics / Telematics System (for Hv Model) / Parts Location
PARTS LOCATION

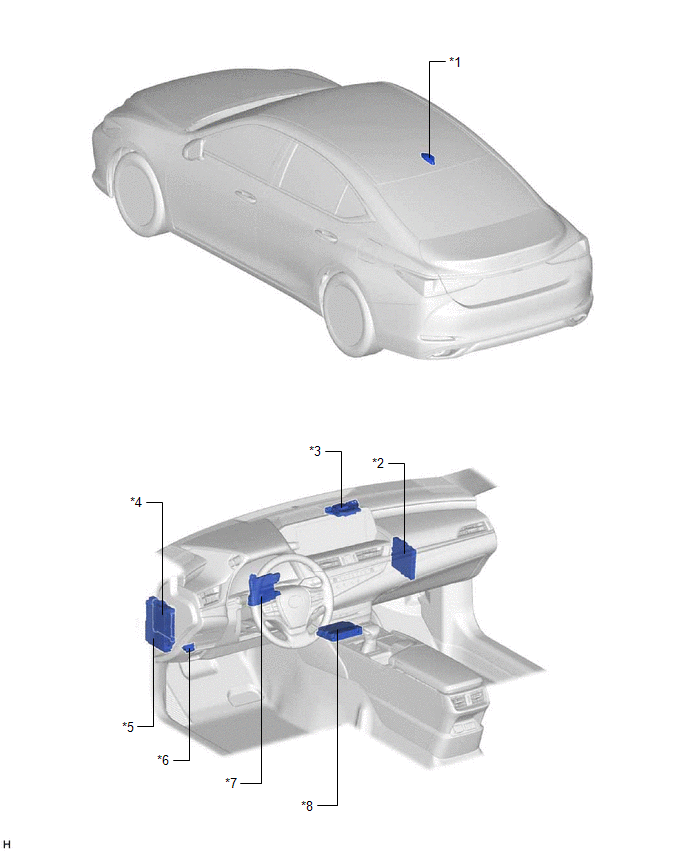

ILLUSTRATION
.png)
| *1 | ROOF ANTENNA ASSEMBLY - GPS - Telephone Main | *2 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *3 | NAVIGATION ANTENNA ASSEMBLY - Telephone Sub | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - DCM FUSE - ECU-IG2 NO. 3 FUSE | *6 | DLC3 |
| *7 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *8 | DCM (TELEMATICS TRANSCEIVER) |
