Lexus ES: On-vehicle Inspection
ON-VEHICLE INSPECTION
PROCEDURE
1. INSPECT HOOD SUB-ASSEMBLY

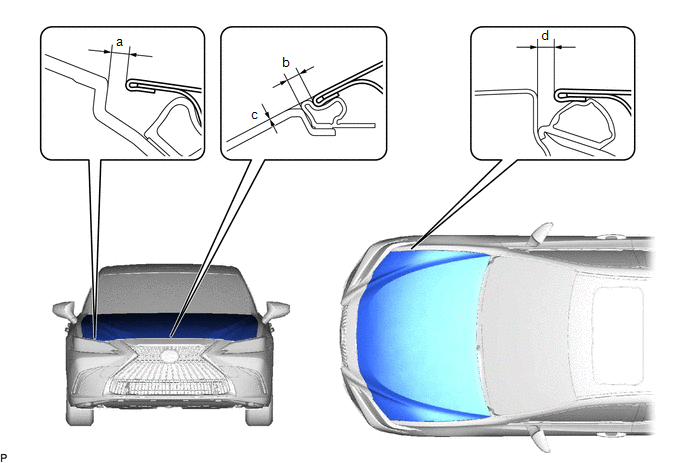

(a) Check that the clearance measurements of areas a through d are within each standard range.
Standard Clearance | Area | Measurement | Area | Measurement |
|---|---|---|---|
| a | 2.85 to 5.85 mm (0.112 to 0.230 in.) | b | 1.85 to 5.85 mm (0.0728 to 0.230 in.) |
| c | -1.35 to 1.65 mm (-0.0531 to 0.0650 in.) | d | 2.2 to 5.2 mm (0.0866 to 0.205 in.) |
