ON-VEHICLE INSPECTION
CAUTION / NOTICE / HINT
NOTICE:
- Do not remove the generator pulley cap.
- If the generator pulley cap is removed, replace the generator pulley cap and generator pulley with clutch with new ones as the correct grease amount cannot be confirmed.
HINT:
If it is confirmed that the generator assembly is not generating power, it is not necessary to perform the counterclockwise check as another malfunction is suspected.
PROCEDURE
1. REMOVE V-RIBBED BELT
Click here .gif)
2. INSPECT GENERATOR PULLEY WITH CLUTCH
(a) Check that the generator pulley with clutch operates in accordance with the following table.

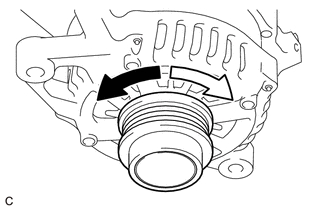

.png) | Counterclockwise |
.png) | Clockwise |
Standard:
| Counterclockwise | Clockwise |
|---|---|
| Spins Freely | Lock |
HINT:
If the generator pulley with clutch does not turn smoothly, does not operate as specified, or an abnormal sound is output, replace it with a new one.
3. INSTALL V-RIBBED BELT
Click here
