Lexus ES (XZ10) Service Manual / Drivetrain / Axle And Differential / Rear Axle Hub (for Awd) / Components
COMPONENTS

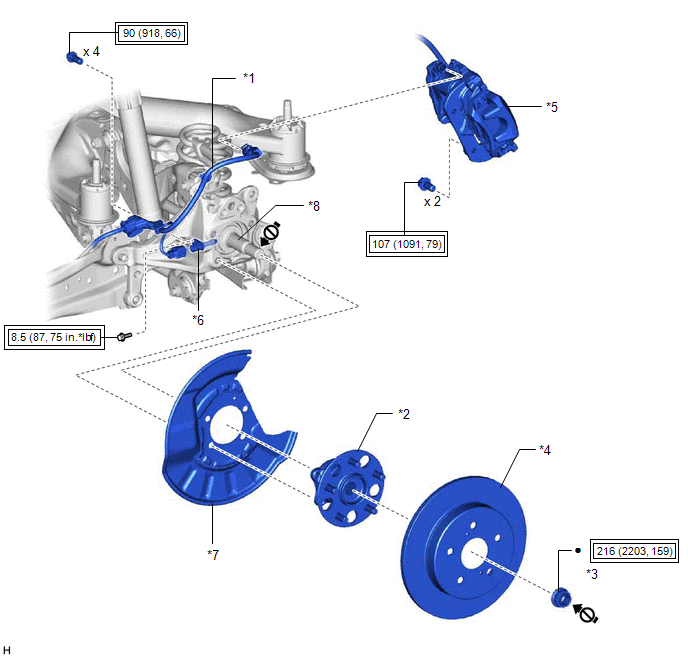

ILLUSTRATION
| *1 | NO. 2 PARKING BRAKE WIRE ASSEMBLY | *2 | REAR AXLE HUB AND BEARING ASSEMBLY |
| *3 | REAR AXLE SHAFT NUT | *4 | REAR DISC |
| *5 | REAR DISC BRAKE CALIPER ASSEMBLY | *6 | REAR SKID CONTROL SENSOR |
| *7 | REAR DISC BRAKE DUST COVER SUB-ASSEMBLY | *8 | REAR DRIVE SHAFT ASSEMBLY |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
.png) | Do not apply lubricants to the threaded parts | - | - |
