Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL VISOR COVER ASSEMBLY

(a) Install the visor cover assembly to the outer mirror actuator assembly.

2. INSTALL OUTER MIRROR UPPER COVER

(a) Engage the 4 guides and 2 claws to install the outer mirror upper cover to the side turn signal light assembly.

3. INSTALL OUTER MIRROR LOWER COVER

(a) Install outer mirror lower cover with the screw.

4. INSTALL SIDE TELEVISION CAMERA ASSEMBLY (w/ Panoramic View Monitor System)

Click here

5. INSTALL OUTER MIRROR COVER ASSEMBLY

(a) w/o Panoramic View Monitor System:

(1) Connect the connector.

(2) Engage the 5 claws as shown in the illustration.

Install in this Direction

(3) Install the outer mirror cover assembly with the 4 screws.

(b) w/ Panoramic View Monitor System:

(1) Connect the connector.

(2) Connect the side television camera connector.

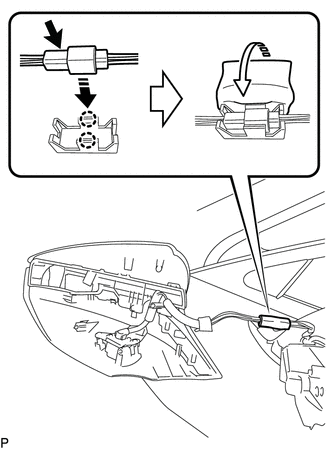

(3) Engage the 2 claws as shown in the illustration to install the camera connector clamp.

(4) Paste a new outer mirror tape around the camera connector clamp.

(5) Engage the clamp.

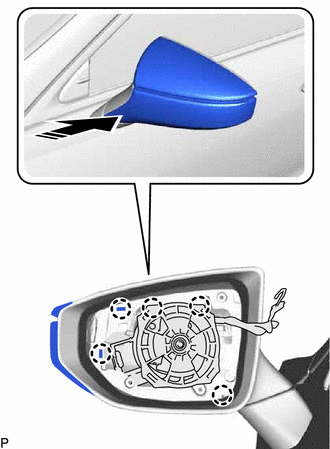

(6) Engage the 5 claws as shown in the illustration.

Install in this Direction

(7) Install the outer mirror cover assembly with the 4 screws.

6. INSTALL OUTER MIRROR

Click here

7. PERFORM CALIBRATION (w/ Panoramic View Monitor System)

for Gasoline Model: Click here

for HV Model: Click here
