Lexus ES: Installation
INSTALLATION
CAUTION / NOTICE / HINT
HINT:
- Use the same procedure for the RH side and LH side.
- The following procedure is for the LH side.
PROCEDURE
1. INSTALL REAR SUSPENSION SUPPORT ASSEMBLY
(a) Secure the rear suspension support assembly in a vise using aluminum plates.
NOTICE:
Do not overtighten the vise.
(b) Install the rear suspension support assembly to the rear shock absorber assembly.
(c) Apply a few drops of adhesive to the threads of a new rear support to rear shock absorber nut.
Adhesive:
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent
NOTICE:
Only apply adhesive to the nut if it is not supplied as a precoated part.

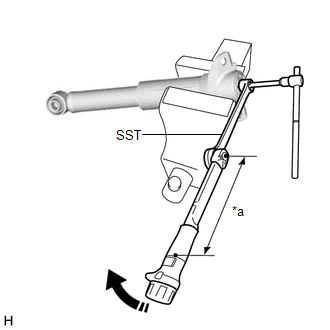

| (d) Using SST and a 6 mm hexagon socket wrench, hold the rear shock absorber rod and tighten the rear support to rear shock absorber nut. SST: 09729-00170 Torque: Specified tightening torque : 25 N·m {255 kgf·cm, 18 ft·lbf} NOTICE: Securely insert the 6 mm hexagon socket wrench into the rear shock absorber rod to prevent damage to the rear shock absorber assembly when tightening the rear support to rear shock absorber nut. HINT:
|
|
.png)
2. INSTALL REAR SHOCK ABSORBER CAP
(a) Install the rear shock absorber cap to the rear shock absorber assembly.
3. TEMPORARILY INSTALL REAR SHOCK ABSORBER ASSEMBLY

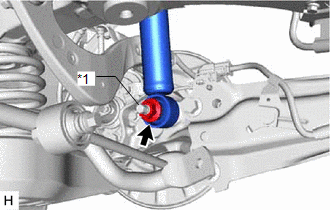

| (a) Temporarily install the rear shock absorber assembly to the rear axle carrier sub-assembly with the nut and plate washer. NOTICE: Hold the rear axle carrier pin while rotating the nut. |
|
.png)
4. STABILIZE SUSPENSION

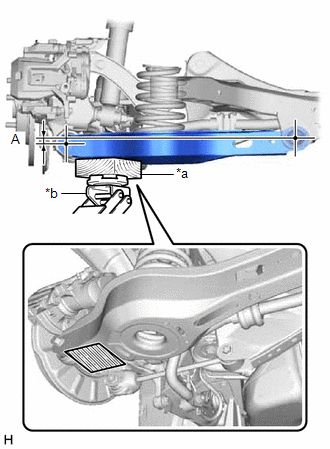

(a) Using a jack and wooden block, apply load to the suspension so that the rear No. 2 suspension arm assembly is positioned as shown in the illustration.
Standard Length (A):
| for 2WD | 13 mm (0.512 in.) |
| for AWD | 2 mm (0.0787 in.) |
CAUTION:
Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.
NOTICE:
- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
.png)
| *a | Wooden Block |
| *b | Jack |
.png) | Wooden Block Placement Location |
5. INSTALL REAR UPPER CONTROL ARM ASSEMBLY
(a) Install the rear upper control arm assembly to the rear axle carrier sub-assembly with the bolt and nut.
Torque:
73 N·m {744 kgf·cm, 54 ft·lbf}
NOTICE:
- Insert the bolt with the threaded end facing the rear of the vehicle.
- Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
6. CONNECT REAR SHOCK ABSORBER ASSEMBLY

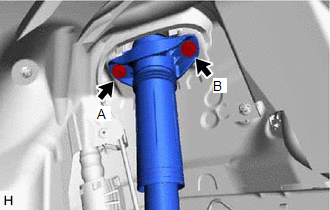

| (a) Connect the rear shock absorber assembly to the vehicle with the 2 bolts. Torque: 55 N·m {561 kgf·cm, 41 ft·lbf} NOTICE: Temporarily tighten the bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A). |
|
.png)
7. INSTALL REAR SHOCK ABSORBER ASSEMBLY

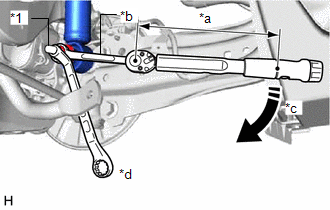

| (a) Using a ball joint lock nut wrench fully tighten the rear shock absorber assembly with the nut. Torque: Specified tightening torque : 125 N·m {1275 kgf·cm, 92 ft·lbf} NOTICE: Hold the rear axle carrier pin while rotating the nut. HINT:
|
|
.png)
8. INSTALL REAR STABILIZER LINK ASSEMBLY
for 2WD: Click here .gif)
for AWD: Click here
9. INSTALL NO. 2 PARKING BRAKE WIRE ASSEMBLY (w/ AVS)

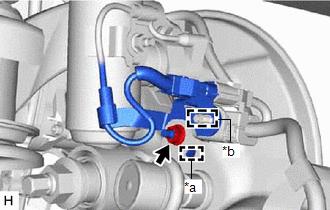

| (a) Engage the guide and install the wire harness bracket. |
|
.png)
(b) Install the nut.
Torque:
8.5 N·m {87 kgf·cm, 75 in·lbf}
(c) Engage the clamp and install the No. 2 parking brake wire assembly to the wire harness bracket.

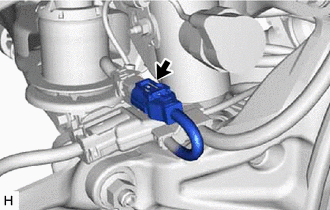

| (d) Connect the connector. |
|
.png)
10. INSTALL NO. 1 FLOOR UNDER COVER (for Gasoline Model 2WD)
(a) for RH Side:
Click here
11. INSTALL NO. 2 FLOOR UNDER COVER (for Gasoline Model 2WD)
(a) for LH Side:
Click here
12. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)
(a) for LH Side:
Click here
13. INSTALL REAR WHEEL
Click here
14. INSPECT AND ADJUST REAR WHEEL ALIGNMENT
Click here
15. PERFORM INITIALIZATION
for HV Model:| *1: for LED type turn signal light | |
| |
| Parking Assist Monitor System | |
| Panoramic View Monitor System | |
| Lighting System*1 | |
| *1: for LED type turn signal light | |
| |
| Parking Assist Monitor System | |
| Panoramic View Monitor System | |
| Lighting System*1 | |
