COMPONENTS

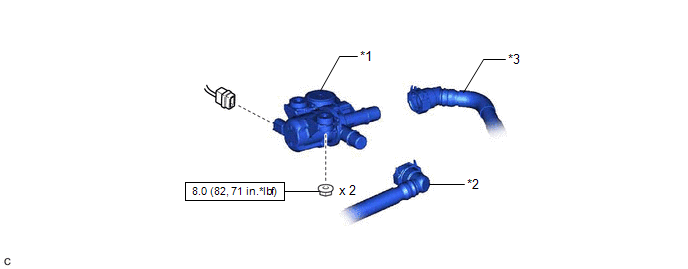

ILLUSTRATION
| *1 | FUEL VAPOR CONTAINMENT VALVE (FUEL TANK SOLENOID MAIN VALVE ASSEMBLY) | *2 | FUEL TANK VENT HOSE SUB-ASSEMBLY |
| *3 | FUEL TANK VENT HOSE | - | - |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
