Lexus ES: Installation

INSTALLATION

CAUTION / NOTICE / HINT

HINT:

  • Use the same procedure for the RH side and LH side.
  • The following procedure is for the LH side.

PROCEDURE

1. INSTALL REAR UPPER COIL SPRING INSULATOR

(a) Install the rear upper coil spring insulator to the vehicle.

2. INSTALL REAR LOWER COIL SPRING INSULATOR

(a) Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

3. INSTALL REAR COIL SPRING

(a) Set the rear coil spring to the rear No. 2 suspension arm assembly.

NOTICE:

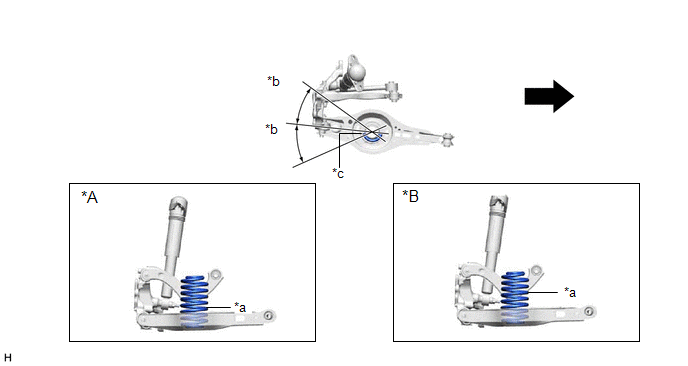

  • Set the rear coil spring so that its lower end is within the range shown in the illustration.
  • Set the rear coil spring so that the identification mark is positioned as shown in the illustration.
  • The smaller diameter end must face upward.

*A

for TMK Made

*B

for TMMK Made

*a

Identification Mark

*b

30° or less

*c

Lower End of Rear Coil Spring

-

-

Inner Side of the Vehicle

-

-

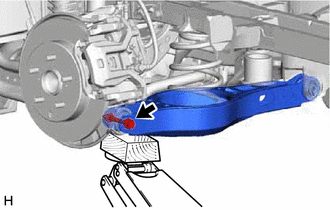

(b) Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.

CAUTION:

Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

NOTICE:

  • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
  • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
  • Make sure to perform this operation with the vehicle kept as low as possible.
  • Insert the bolt with the threaded end facing the front of the vehicle.

4. STABILIZE SUSPENSION

Click here

5. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(a) Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

Torque:

73 N·m {744 kgf·cm, 54 ft·lbf}

NOTICE:

Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

6. INSTALL REAR STABILIZER LINK ASSEMBLY

for 2WD: Click here

for AWD: Click here

7. INSTALL NO. 1 FLOOR UNDER COVER (for Gasoline Model 2WD)

(a) for RH Side:

Click here

8. INSTALL NO. 2 FLOOR UNDER COVER (for Gasoline Model 2WD)

(a) for LH Side:

Click here

9. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (w/ Height Control Sensor)

(a) for LH Side:

Click here

10. INSTALL REAR WHEEL

Click here

11. INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY

(a) Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the nut.

Click here

12. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

Click here

13. PERFORM INITIALIZATION

for HV Model:
*1: for LED type turn signal light
  • Parking Support Alert System
  • Parking Support Brake System

Parking Assist Monitor System

for Initialization

for Calibration

Panoramic View Monitor System

for Initialization

for Calibration

Lighting System*1

for Gasoline Model:
*1: for LED type turn signal light
  • Parking Support Alert System
  • Parking Support Brake System

Parking Assist Monitor System

for Initialization

for Calibration

Panoramic View Monitor System

for Initialization

for Calibration

Lighting System*1
