Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (engine Control) / Knock Sensor / Inspection

INSPECTION

PROCEDURE

1. INSPECT KNOCK CONTROL SENSOR

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection

Condition

Specified Condition

1 - 2

25°C (77°F)

120 to 280 kΩ

If the result is not as specified, replace the knock control sensor.

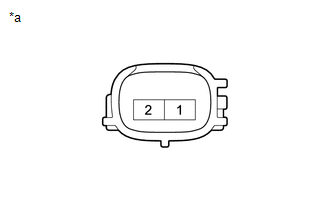

*a

Component without harness connected

(Knock Control Sensor)
