Lexus ES: Engine Switch
Inspection
INSPECTION
PROCEDURE
1. INSPECT ENGINE SWITCH
(a) Check the resistance.
| (1) Measure the resistance according to the value(s) in the table below. Standard Resistance:
If the result is not as specified, replace the engine switch. |
|

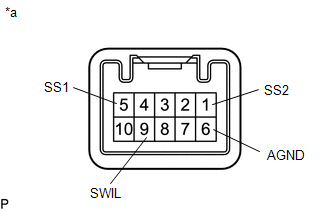

.png)
(b) Check the LED illumination.
(1) Apply battery voltage between the terminals of the engine switch and check the illumination condition of the engine switch indicator light.
OK:
| Condition | Specified Condition |
|---|---|
| Battery positive (+) → Terminal 9 (SWIL) Battery negative (-) → Terminal 6 (AGND) | Illuminates |
HINT:
- If the positive (+) lead and the negative (-) lead are incorrectly connected, the engine switch indicator light will not illuminate.
- If the voltage is too low, the engine switch indicator light will not illuminate.
If the result is not as specified, replace the engine switch.
