DISPOSAL

PROCEDURE

1. DISPOSE OF HOOD SUPPORT ASSEMBLY

(a) Secure the hood support assembly horizontally in a vise with the piston rod pulled out.

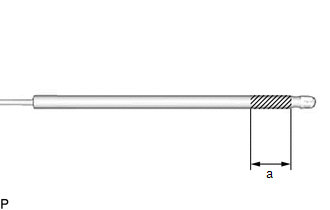

(b) Wearing safety glasses, gradually cut a part within the area (a) shown in the illustration using a metal saw to release the gas.

Specification:

Area

Measurement

a

50 mm (1.97 in.)

CAUTION:

Although the gas inside the hood support assembly is colorless, odorless and harmless, metal debris may scatter. Therefore, cover hood support assembly with a piece of cloth or other material.
