Lexus ES: Components

COMPONENTS

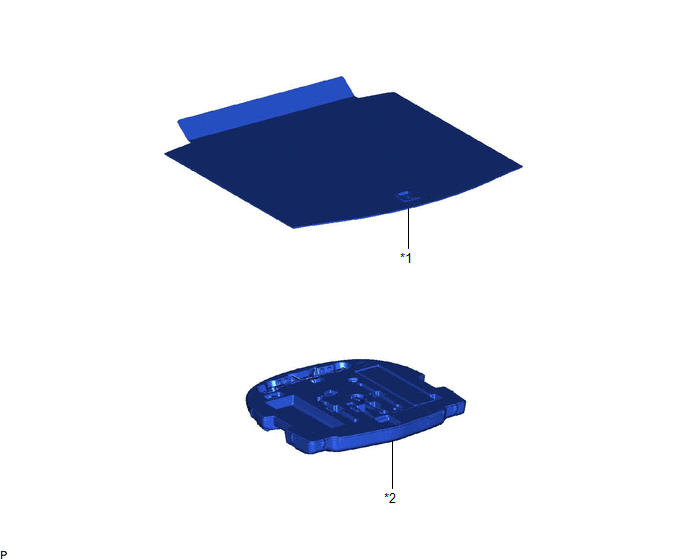

ILLUSTRATION

*1

LUGGAGE COMPARTMENT FLOOR MAT

*2

SPARE WHEEL COVER TRAY

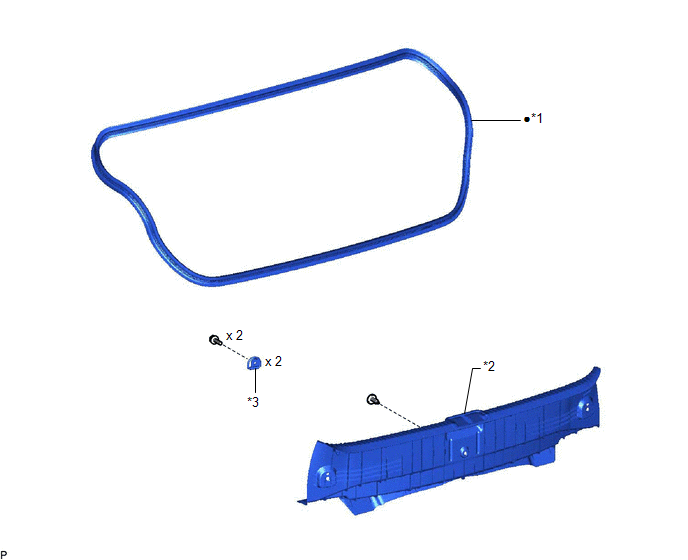

ILLUSTRATION

*1

LUGGAGE COMPARTMENT DOOR WEATHERSTRIP

*2

REAR FLOOR FINISH PLATE

*3

LUGGAGE HOLD BELT STRIKER ASSEMBLY

-

-

Non-reusable part

-

-
