Lexus ES (XZ10) Service Manual / Audio & Visual & Telematics / Audio / Video / Rear Door Speaker / Components
COMPONENTS

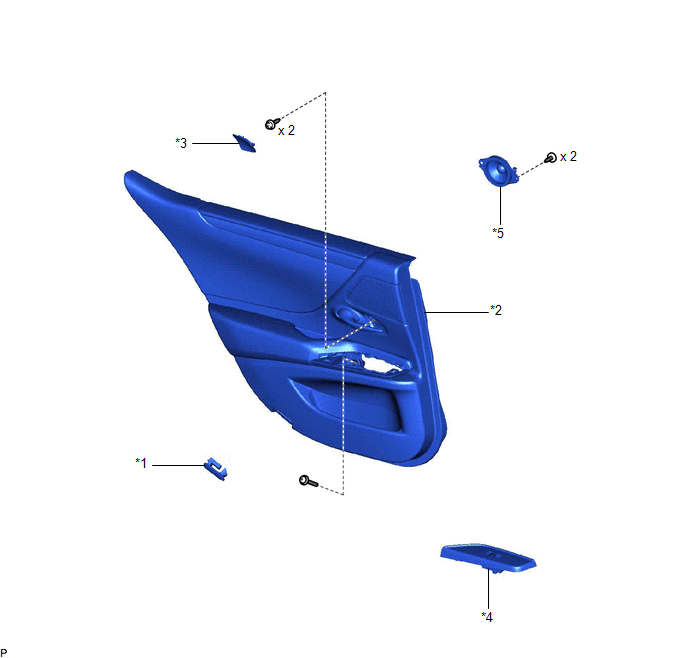

ILLUSTRATION
| *1 | COURTESY LIGHT ASSEMBLY | *2 | REAR DOOR TRIM BOARD SUB-ASSEMBLY |
| *3 | REAR DOOR TRIM UPPER PAD | *4 | REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR UPPER ARMREST BASE PANEL |
| *5 | REAR SPEAKER ASSEMBLY | - | - |
