Lexus ES: Components

COMPONENTS

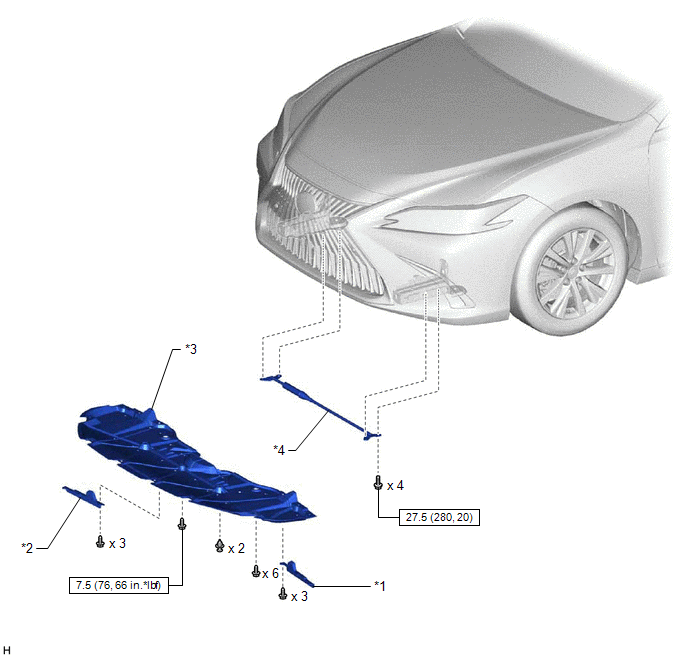

ILLUSTRATION

*1

FRONT WHEEL OPENING EXTENSION PAD LH

*2

FRONT WHEEL OPENING EXTENSION PAD RH

*3

NO. 1 ENGINE UNDER COVER

*4

SUSPENSION TOWER DAMPER

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

READ NEXT:

 Removal

REMOVAL PROCEDURE 1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH for A25A-FXS: Click here for 2GR-FKS: Click here 2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH for A25A-FXS: Click here for 2GR

 Removal

REMOVAL PROCEDURE 1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH for A25A-FKS: Click here for A25A-FXS: Click here for 2GR-FKS: Click here 2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH for A

 Inspection

INSPECTION PROCEDURE 1. INSPECT SUSPENSION TOWER DAMPER (a) Visually check the suspension tower damper and, if the rod is bent, a leak is found or the damper cannot be installed without extending or c
