Lexus ES: Removal

REMOVAL

PROCEDURE

1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

3. REMOVE NO. 1 ENGINE UNDER COVER

for A25A-FKS: Click here

for A25A-FXS: Click here

for 2GR-FKS: Click here

4. REMOVE SUSPENSION TOWER DAMPER

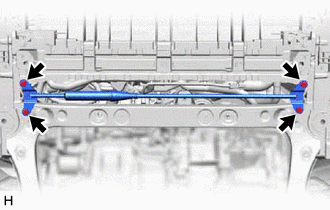

(a) Remove the 4 bolts and suspension tower damper from the front bumper extension sub-assembly LH and front bumper extension sub-assembly RH.

NOTICE:

Do not extend or compress the damper.
