Lexus ES: Components

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / Hybrid / Battery Control / Hybrid Vehicle Control Ecu / Components

COMPONENTS

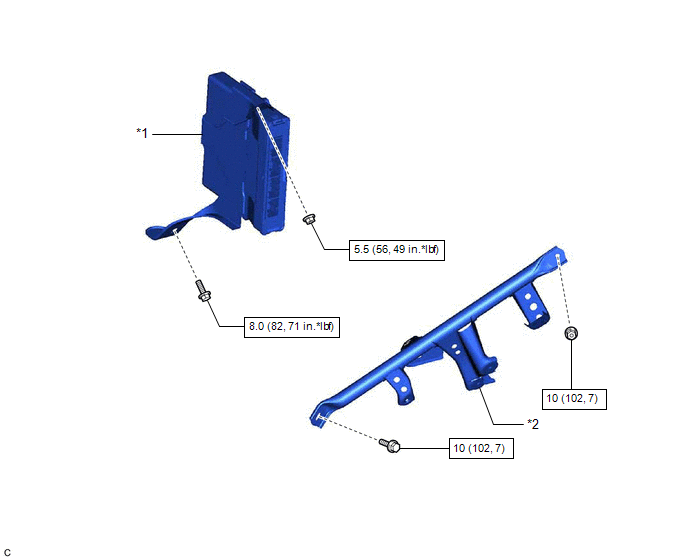

ILLUSTRATION

*1

HYBRID VEHICLE CONTROL ECU

*2

NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY

N*m (kgf*cm, ft.*lbf): Specified torque

-

-
