Lexus ES: Components
COMPONENTS

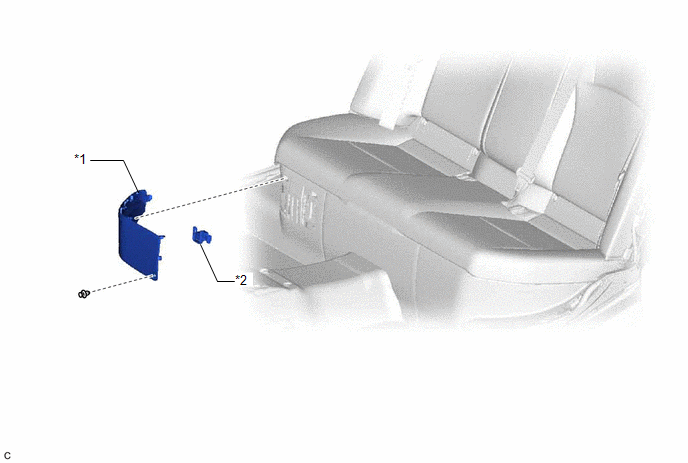

ILLUSTRATION
| *1 | BATTERY SERVICE HOLE COVER | *2 | SERVICE PLUG GRIP |

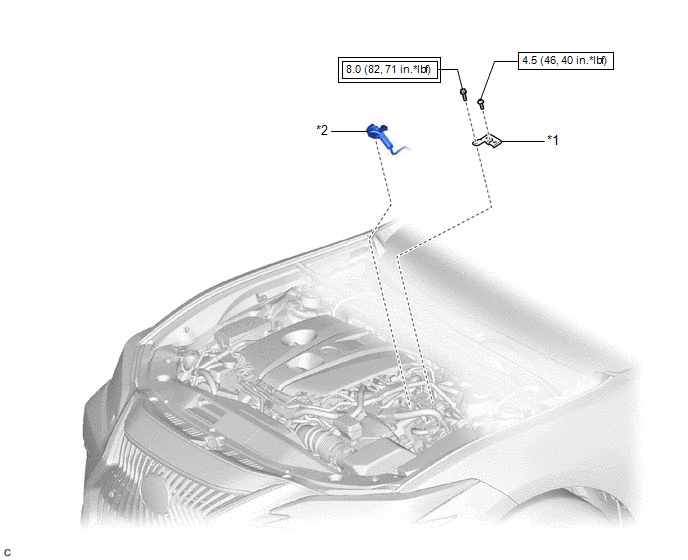

ILLUSTRATION
| *1 | CONNECTOR COVER ASSEMBLY | *2 | ENGINE ROOM MAIN WIRE |
.png) | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | .png) | N*m (kgf*cm, ft.*lbf): Specified torque |

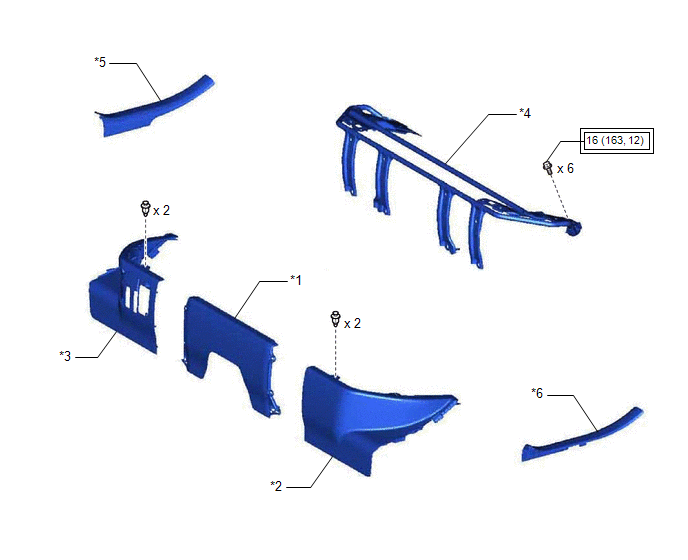

ILLUSTRATION
| *1 | REAR UNDER COVER | *2 | REAR UNDER SIDE COVER LH |
| *3 | REAR UNDER SIDE COVER RH | *4 | REAR SEAT CUSHION LEG SUB-ASSEMBLY |
| *5 | REAR DOOR SCUFF PLATE RH | *6 | REAR DOOR SCUFF PLATE LH |
| | Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

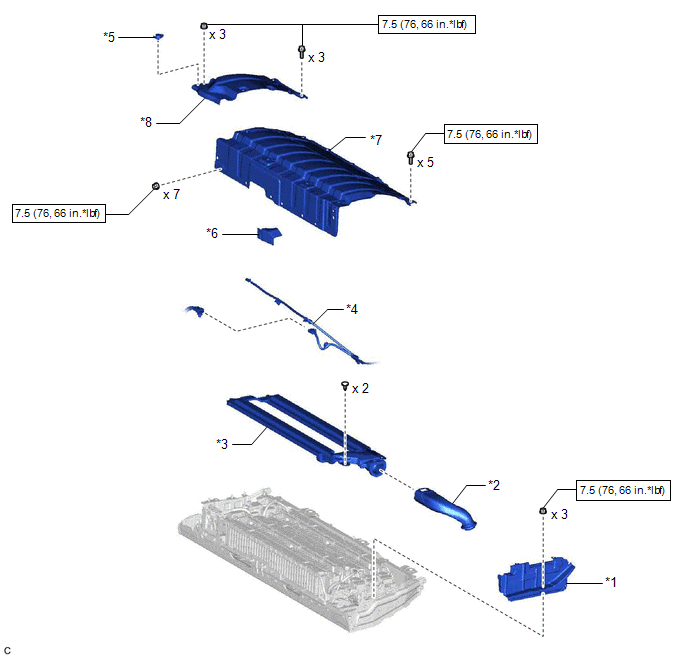

ILLUSTRATION
| *1 | BATTERY ECU ASSEMBLY | *2 | HYBRID BATTERY HOSE ASSEMBLY |
| *3 | NO. 1 HV BATTERY HOSE | *4 | FLOOR WIRE |
| *5 | BATTERY COVER LOCK STRIKER | *6 | NO. 4 HV BATTERY PROTECTOR |
| *7 | UPPER HV BATTERY COVER SUB-ASSEMBLY | *8 | NO. 1 HV BATTERY COVER PANEL RH |
| | N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
