Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (cooling) / Water Pump / Components
COMPONENTS

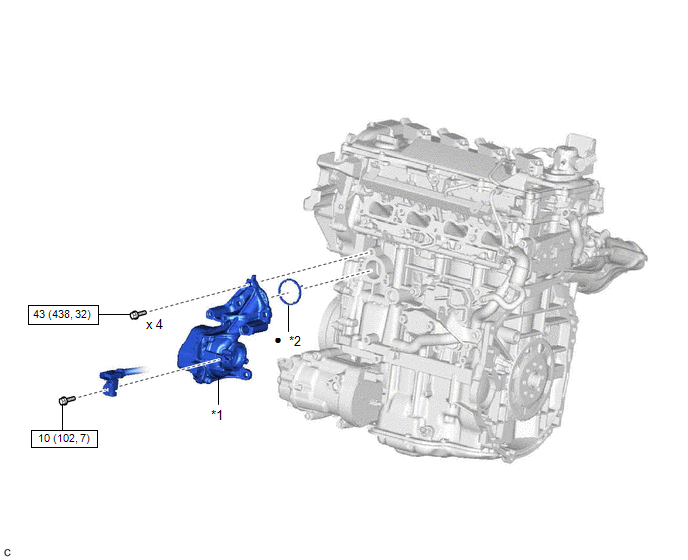

ILLUSTRATION
| *1 | ENGINE WATER PUMP ASSEMBLY (WATER INLET HOUSING) | *2 | GASKET |
.png) | N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
