Lexus ES: Components

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fks (fuel) / Fuel Pressure Sensor (for High Pressure) / Components

COMPONENTS

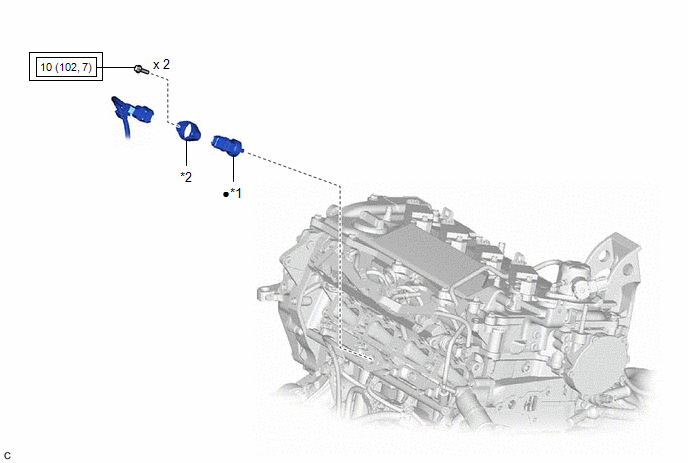

ILLUSTRATION

*1

FUEL PRESSURE SENSOR

*2

NO. 1 FUEL PRESSURE SENSOR HOLDER

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)

●

Non-reusable part
