Lexus ES: Cold Start Ignition Timing Performance (P050B00)

Lexus ES (XZ10) Service Manual / Engine & Hybrid System / A25a-fxs (engine Control) / Sfi System / Cold Start Ignition Timing Performance (P050B00)

MONITOR DESCRIPTION

A monitor will run when the engine is started at an engine coolant temperature of -10 (14°F) or higher, and less than 50°C (122°F). If certain conditions are met, a DTC is stored after the engine idles for 13 seconds (2 trip detection logic).

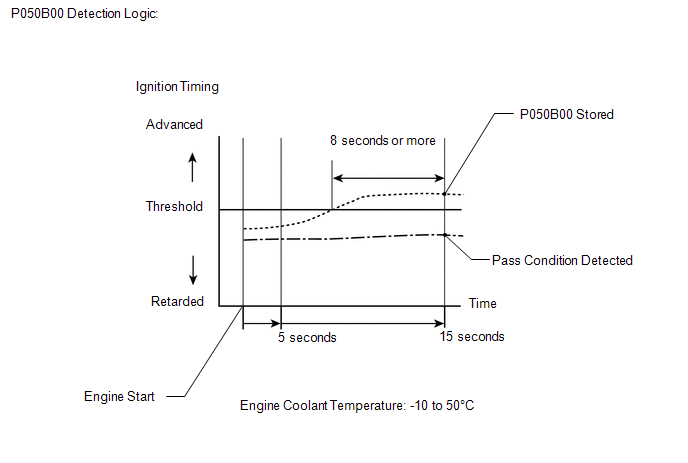

This DTC is designed to monitor the ignition timing at cold start. When the engine is started at an engine coolant temperature of less than 50°C (122°F), the ECM checks the ignition timing during engine idling. If the ignition timing advances beyond the specified level within 10 seconds, the ECM interprets this as a malfunction, illuminates the MIL and stores this DTC.

NOTICE:

The idle speed control learned values are cleared by performing learning value reset. Idle speed control learning needs to be performed before this DTC can be stored.

DTC No.	Detection Item	DTC Detection Condition	Trouble Area	MIL	Memory	Note
P050B00	Cold Start Ignition Timing Performance	Ignition timing insufficiently retarded at cold start (2 trip detection logic).	Throttle body with motor assembly Mass air flow meter sub-assembly PCV system Air cleaner filter element sub-assembly Intake system VVT system EGR valve assembly Wire harness or connector ECM	Comes on	DTC stored	SAE Code: P050B

MONITOR STRATEGY

Related DTCs	P050B: Cold start ignition timing performance
Required Sensors/Components (Main)	Throttle body with motor assembly
Required Sensors/Components (Related)	Engine coolant temperature sensor Mass air flow meter sub-assembly
Frequency of Operation	Once per driving cycle
Duration	10 seconds
MIL Operation	2 driving cycles
Sequence of Operation	None

TYPICAL ENABLING CONDITIONS

Monitor runs whenever the following DTCs are not stored	P0010, P1360, P1362, P1364, P1366, P2614 (Motor drive VVT system control module) P0011 (VVT system - advance) P0012 (VVT system - retard) P0013 (Exhaust VVT oil control solenoid) P0014 (Exhaust VVT system - advance) P0015 (Exhaust VVT system - retard) P0016 (VVT system - misalignment) P0017 (Exhaust VVT system - misalignment) P0087, P0088, P0191, P0192, P0193 (Fuel pressure sensor (for high pressure side)) P0101, P0102, P0103 (Mass air flow meter) P0107, P0108 (Manifold absolute pressure) P0116, P0117, P0118 (Engine coolant temperature sensor) P0121, P0122, P0123, P0222, P0223, P2135 (Throttle position sensor) P0125 (Insufficient coolant temperature for closed loop fuel control) P014C, P014D, P015A, P015B, P2195, P2196, P2237, P2238, P2239, P2252, P2253 (Air fuel ratio sensor (sensor 1)) P0171, P0172 (Fuel system) P0201, P0202, P0203, P0204, P062D, P21CF, P21D0, P21D1, P21D2 (Fuel injector) P0300, P0301, P0302, P0303, P0304 (Misfire) P0335, P0337, P0338 (Crankshaft position sensor) P0340, P0342, P0343 (Camshaft position sensor) P0365, P0367, P0368 (Exhaust camshaft position sensor) P0401 (EGR system (closed)) P0657, P0658, P2102, P2103, P2111, P2112, P2119 (Throttle actuator) P107B, P107C, P107D (Fuel pressure sensor (for low pressure side)) P11EA, P11EC, P11ED, P11EE, P11EF, P219A, P219C, P219D, P219E, P219F (Air-fuel ratio imbalance) P1235 (High pressure fuel pump circuit) P2228, P2229 (Atmospheric pressure sensor)
Auxiliary battery voltage	8 V or higher
Time after engine start	5 seconds or more
Starter	Off
Engine coolant temperature at engine start	-10°C (14°F) or higher
Engine coolant temperature	-10°C (14°F) or higher, and less than 50°C (122°F)
Fuel-cut	Off
Vehicle speed	Less than 60 km/h (37.5 mph)
Atmospheric pressure	76 kPa(abs) [11 psi(abs)] or higher

TYPICAL MALFUNCTION THRESHOLDS

Accumulated time when ignition timing retard is cut off

8 seconds or more

CONFIRMATION DRIVING PATTERN

HINT:

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
Click here
When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Click here

Connect the Techstream to the DLC3.
Turn the power switch on (IG).
Turn the Techstream on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the power switch off and wait for at least 30 seconds.
Turn the power switch on (IG).
Turn the Techstream on.
Put the engine in Inspection Mode (Maintenance Mode).
Click here
Start the engine and warm it up for 5 minutes or more.
Stop the engine.
Leave the vehicle outside overnight.
Turn the power switch on (IG) [A].
Turn the Techstream on.
Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.
Check that the value of the Data List item Coolant Temperature is between -10 and 50°C (14 and 122°F).
Put the engine in Inspection Mode (Maintenance Mode).
Click here
Start the engine and warm it up until the engine coolant temperature is the same as the coolant temperature in the Freeze Frame Data.
Idle the engine for 1 minute or more [B].
Enter the following menus: Powertrain / Engine / Trouble Codes [C].
Read the pending DTC.
HINT:
- If a pending DTC is output, the system is malfunctioning.
- If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P050B00.

Check the DTC judgment result.

Techstream Display	Description
NORMAL	DTC judgment completed System normal
ABNORMAL	DTC judgment completed System abnormal
INCOMPLETE	DTC judgment not completed Perform driving pattern after confirming DTC enabling conditions

HINT:

If the judgment result is NORMAL, the system is normal.
If the judgment result is ABNORMAL, the system is malfunctioning.
If the judgment result is INCOMPLETE, idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [B] again.
Idle the engine for 3 minutes, let the engine cool down, and then perform steps [A] through [C]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

WIRING DIAGRAM

Refer to DTC P010012.

Click here

CAUTION / NOTICE / HINT

NOTICE:

Inspect the fuses for circuits related to this system before performing the following procedure.
Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.
Click here

(Select Powertrain in Health Check and then check the time stamp data.)

Click here
If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.
Click here

HINT:

DTC P050B00 may be set when the engine has the symptoms listed below. If necessary, check the trouble areas listed below.

Symptoms	Factor	Trouble Area
Low idle speed when engine is cold (immediately after engine start)	Excessive engine friction	Engine oil deterioration
Rough idle when engine is cold (immediately after engine start)	Abnormal combustion	Fuel quality

Symptoms

Factor

Trouble Area

Low idle speed when engine is cold

(immediately after engine start)

Excessive engine friction

Engine oil deterioration

Rough idle when engine is cold

(immediately after engine start)

Abnormal combustion

Fuel quality

Read Freeze Frame Data using the Techstream. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can be helpful in determining whether the vehicle was moving or stationary, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction.

PROCEDURE

1.	CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P050B00)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Trouble Codes.

(e) Read the DTCs.

Powertrain > Engine > Trouble Codes

Result	Proceed to
DTC P050B00 is output	A
DTC P050B00 and other DTCs are output	B

HINT:

If any DTCs other than P050B00 are output, troubleshoot those DTCs first.

GO TO DTC CHART

2.	READ VALUE USING TECHSTREAM (FUEL TRIM)

HINT:

Calculate the total fuel trim values to check the characteristic deviation of the mass air flow meter sub-assembly.

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(e) Start the engine.

(f) Enter the following menus: Powertrain / Engine / Data List / Short FT B1S1 and Long FT B1S1.

Powertrain > Engine > Data List

Tester Display
Short FT B1S1
Long FT B1S1

(g) Read the values displayed on the Techstream at engine idle.

(h) Add the Short FT B1S1 and Long FT B1S1 values to obtain the total fuel trim.

Standard:

Techstream Display	Specified Condition
Total of Short FT B1S1 and Long FT B1S1	Between -20 and 20%

GO TO STEP 7

3.	INSPECT THROTTLE BODY WITH MOTOR ASSEMBLY (VISUALLY CHECK THROTTLE VALVE)

(a) Check for foreign matter between the throttle valve and housing. If necessary, clean the throttle body with motor assembly. Also, check that the throttle valve moves smoothly.

OK:

Throttle valve is not contaminated with foreign matter and moves smoothly.

GO TO STEP 6

4.	PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(e) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(f) Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Intake Manifold Absolute Pressure, Coolant Temperature and Engine Independent.

Powertrain > Engine > Active Test

Active Test Display
Control the EGR Step Position

Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent

(g) Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:

Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.
Do not leave the EGR valve open for 10 seconds or more during the Active Test.
Be sure to return the EGR valve to step 0 when the Active Test is completed.
Do not open the EGR valve 30 steps or more during the Active Test.

OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".

Standard:

-	Control the EGR Step Position (Active Test)
0 Steps	0 to 30 Steps
Intake Manifold Absolute Pressure (Data List)	(EGR valve is fully closed)	Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

Control the EGR Step Position (Active Test)

0 Steps

0 to 30 Steps

Intake Manifold Absolute Pressure

(Data List)

(EGR valve is fully closed)

Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

HINT:

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).
While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.
Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.

GO TO STEP 14

5.	INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly.

Click here

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

GO TO STEP 14

GO TO STEP 17

6.	REPLACE THROTTLE BODY WITH MOTOR ASSEMBLY

(a) Replace the throttle body with motor assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the throttle body with motor assembly.

Click here

GO TO STEP 21

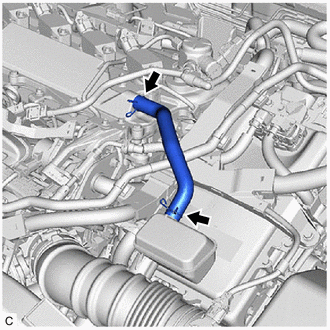

7.	CHECK PCV VALVE AND HOSE CONNECTIONS

(a) Check the PCV hose connections.

(b) Check the PCV valve.

Click here

OK:

PCV hose and PCV valve are connected correctly and are not damaged.

GO TO STEP 20

8.	CHECK INTAKE SYSTEM

(a) Check the intake system for vacuum leaks.

Click here

OK:

No leaks from intake system.

GO TO STEP 19

9.	CHECK AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Visually check that the air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.

OK:

The air cleaner filter element sub-assembly is not excessively contaminated with dirt or oil.

GO TO STEP 18

10.	PERFORM ACTIVE TEST USING TECHSTREAM (CONTROL THE EGR STEP POSITION)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(e) Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher.

HINT:

The A/C switch and all accessories should be off.

(f) Enter the following menus: Powertrain / Engine / Active Test / Control the EGR Step Position / Data List / Intake Manifold Absolute Pressure, Coolant Temperature and Engine Independent.

Powertrain > Engine > Active Test

Active Test Display
Control the EGR Step Position

Data List Display
Intake Manifold Absolute Pressure
Coolant Temperature
Engine Independent

(g) Confirm that the value of Data List item Engine Independent is "Operate" then check the value of Intake Manifold Absolute Pressure while performing the Active Test.

NOTICE:

Make sure that the value of Data List item Engine Independent is "Operate" while performing the Active Test.
Do not leave the EGR valve open for 10 seconds or more during the Active Test.
Be sure to return the EGR valve to step 0 when the Active Test is completed.
Do not open the EGR valve 30 steps or more during the Active Test.

OK:

The value of Intake Manifold Absolute Pressure changes in response to the EGR step position when the value of Engine Independent is "Operate".

Standard:

Control the EGR Step Position (Active Test)

0 Steps

0 to 30 Steps

Intake Manifold Absolute Pressure

(Data List)

(EGR valve is fully closed)

Intake Manifold Absolute Pressure value is at least +10 kPa (1.45 psi) higher than when EGR valve is fully closed

HINT:

If the value of Data List item Engine Independent is "Not Opr" when the engine is idling, charge control is being performed. Perform the Active Test after charge control is complete ("Operate" is displayed).
While performing the Active Test, if the increase in the value of Intake Manifold Absolute Pressure is small, the EGR valve assembly may be malfunctioning.
Even if the EGR valve assembly is malfunctioning, rough idling or an increase in the value of Intake Manifold Absolute Pressure may occur while performing the Active Test. However, the amount that the value of Intake Manifold Absolute Pressure increases will be smaller than normal.

GO TO STEP 12

11.	INSPECT EGR VALVE ASSEMBLY

(a) Remove the EGR valve assembly.

Click here

(b) Check if the EGR valve is stuck open.

OK:

EGR valve is tightly closed.

GO TO STEP 17

12.	PERFORM ACTIVE TEST USING TECHSTREAM (CHECK VVT SYSTEM)

(a) Operate the VVT system through the Active Test, and check if the VVT system is operating normally.

(1) Perform the Active Test, referring to DTC P001100 Procedure (VVT-iE system for intake camshaft).

Click here

(2) Perform the Active Test, referring to DTC P001400 Procedure (VVT-i system for exhaust camshaft).

Click here

GO TO STEP 16

13.	READ VALUE USING TECHSTREAM (MASS AIR FLOW SENSOR)

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(e) Start the engine.

(f) Turn the Techstream on.

(g) Enter the following menus: Powertrain / Engine / Data List / Engine Speed, Mass Air Flow Sensor and Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Engine Speed
Mass Air Flow Sensor
Coolant Temperature

(h) Allow the engine to idle until Coolant Temperature is 75°C (167°F) or higher.

(i) Read Mass Air Flow Sensor while maintaining an engine speed of 2500 rpm.

HINT:

During charge control, the engine speed is set at idle. Therefore, the engine speed will not increase when the accelerator pedal is depressed. In this case, read the Data List after charge control has completed.

Standard:

Techstream Display	Condition	Specified Condition
Mass Air Flow Sensor	Engine warmed up Shift position: P A/C: Off Engine Speed: 2500 rpm	Between 6.2 and 18.6 gm/sec

GO TO STEP 23

14.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

15.	CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Coolant Temperature

(e) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(f) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(g) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

(j) Input the DTC: P050B00.

(k) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

ABNORMAL

(DTC P050B00 is output)

CHECK FOR INTERMITTENT PROBLEMS

GO TO STEP 23

16.	CHECK AND REPAIR VVT SYSTEM

(a) Check and repair the VVT system.

HINT:

Refer to DTC P001100 Inspection Procedure (VVT-iE system for intake camshaft).
Click here
Refer to DTC P001400 Inspection Procedure (VVT-i system for exhaust camshaft).
Click here

GO TO STEP 21

17.	REPLACE EGR VALVE ASSEMBLY

(a) Replace the EGR valve assembly.

Click here

HINT:

Perform "Inspection After Repair" after replacing the EGR valve assembly.

Click here

GO TO STEP 21

18.	REPLACE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

(a) Replace the air cleaner filter element sub-assembly.

GO TO STEP 21

19.	REPAIR OR REPLACE INTAKE SYSTEM

(a) Repair or replace the intake system.

HINT:

Perform "Inspection After Repair" after repairing or replacing the intake system.

Click here

GO TO STEP 21

20.	REPAIR OR REPLACE PCV VALVE OR HOSE

(a) Repair or replace PCV valve or hose.

21.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

22.	CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Coolant Temperature

(e) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(f) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(g) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

(j) Input the DTC: P050B00.

(k) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

ABNORMAL

(DTC P050B00 is output)

END

23.	CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY CONNECTOR CONNECTION)

(a) Check the connection and terminal contact pressure of connectors and wire harnesses between the mass air flow meter sub-assembly and ECM.

Click here

HINT:

Repair any problems.

24.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

25.	CHECK WHETHER DTC OUTPUT RECURS (DTC P050B00)

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Coolant Temperature

(e) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(f) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(g) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

(j) Input the DTC: P050B00.

(k) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

ABNORMAL

(DTC P050B00 is output)

END

26.	CHECK HARNESS AND CONNECTOR (MASS AIR FLOW METER SUB-ASSEMBLY - ECM)

(a) Disconnect the mass air flow meter sub-assembly connector.

(b) Disconnect the ECM connector.

Standard Resistance:

Tester Connection	Condition	Specified Condition
C18-3 (5V) - C88-78 (VCVG)	Always	Below 1 Ω
C18-1 (FG) - C88-101 (VG)	Always	Below 1 Ω
C18-2 (E2G) - C88-79 (E2G)	Always	Below 1 Ω
C18-3 (5V) or C88-78 (VCVG) - Body ground and other terminals	Always	10 kΩ or higher
C18-1 (FG) or C88-101 (VG) - Body ground and other terminals	Always	10 kΩ or higher
C18-2 (E2G) or C88-79 (E2G) - Body ground and other terminals	Always	10 kΩ or higher

REPAIR OR REPLACE HARNESS OR CONNECTOR

27.	REPLACE MASS AIR FLOW METER SUB-ASSEMBLY

(a) Replace the mass air flow meter sub-assembly.

Click here

HINT:

If the result of the inspection performed in step 13 (READ VALUE USING TECHSTREAM (MASS AIR FLOW SENSOR)) indicated no problem, proceed to the next step without replacing the mass air flow meter sub-assembly.
Perform "Inspection After Repair" after replacing the mass air flow meter sub-assembly.
Click here

28.

CLEAR DTC

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Clear the DTCs.

Powertrain > Engine > Clear DTCs

(e) Turn the power switch off and wait for at least 30 seconds.

29.	CONFIRM WHETHER MALFUNCTION HAS BEEN SUCCESSFULLY REPAIRED

NOTICE:

In this operation, the engine must be cold (approximately the same as the engine coolant temperature recorded in the Freeze Frame Data).

(a) Connect the Techstream to the DLC3.

(b) Turn the power switch on (IG).

(d) Enter the following menus: Powertrain / Engine / Data List / Coolant Temperature.

Powertrain > Engine > Data List

Tester Display
Coolant Temperature

(e) Check that the engine coolant temperature is between -10 and 50°C (14 and 122°F).

(f) Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility

Tester Display
Inspection Mode

(g) Start the engine and warm it up until the engine coolant temperature is the same as the engine coolant temperature in the Freeze Frame Data.

(h) Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.

(i) Enter the following menus: Powertrain / Engine / Utility / All Readiness.

Powertrain > Engine > Utility

Tester Display
All Readiness

(j) Input the DTC: P050B00.

(k) Check the DTC judgment result.

Result

Proceed to

NORMAL

(DTCs are not output)

ABNORMAL

(DTC P050B00 is output)

END

REPLACE ECM

SEE MORE:

Yaw Rate Sensor (C1A46)

DESCRIPTION The blind spot monitor sensor receives yaw rate signals from the airbag sensor assembly (yaw rate and acceleration sensor) via CAN communication. Blind Spot Monitor Master DTC No. Detection Item DTC Detection Condition Trouble Area C1A46 Yaw Rate Sensor A fail flag is tr

Starter Relay Circuit Short to Battery (P061512)

MONITOR DESCRIPTION While the engine is being cranked, positive battery voltage is applied to terminal STA of the ECM. If the ECM detects the starter control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL

Lexus ES: Cold Start Ignition Timing Performance (P050B00)

READ NEXT:

Engine Oil Pressure Sensor/Switch "A" Circuit Short to Battery (P052012,P052014)

Engine Oil Pressure Sensor/Switch "A" Signal Stuck High (P052024,P05202A)

Engine Oil Pressure Too Low (Severe) (P052477,P15F009,P15F077,P15F109,P15F177)

SEE MORE:

Yaw Rate Sensor (C1A46)

Starter Relay Circuit Short to Battery (P061512)
