Lexus ES: Adjustment

ADJUSTMENT

CAUTION / NOTICE / HINT

The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during automatic transaxle fluid replacement are shown below.

Necessary Procedures After Parts Removed/Installed/Replaced

Replaced Part or Performed Procedure

Necessary Procedure

Effect/Inoperative Function when Necessary Procedure not Performed

Link

Replacement of automatic transaxle fluid

ATF thermal degradation estimate reset

The value of the Data List item "ATF Thermal Degradation Estimate" is not estimated correctly

PROCEDURE

1. PRECAUTIONS AND WORK DESCRIPTION

(a) The UA80E automatic transaxle assembly does not have an oil filler tube and oil level gauge. When adding automatic transaxle fluid, add automatic transaxle fluid through the refill hole on the automatic transaxle case sub-assembly. The automatic transaxle fluid level can be adjusted by draining excess automatic transaxle fluid (allowing excess automatic transaxle fluid to overflow) through the overflow plug of the transaxle housing.

HINT:

"Overflow" indicates the condition under which automatic transaxle fluid comes out of the overflow plug hole.

(b) Before adjusting the automatic transaxle fluid level, add the specified amount of automatic transaxle fluid when the engine is cold and warm up the engine to circulate the automatic transaxle fluid in the automatic transaxle assembly. Ensure that the automatic transaxle fluid temperature is as specified and the engine is idling.

(c) The UA80E automatic transaxle assembly requires Toyota Genuine ATF WS.

(d) The adjustment should be performed according to the procedures and notes.

2. WORK FLOW

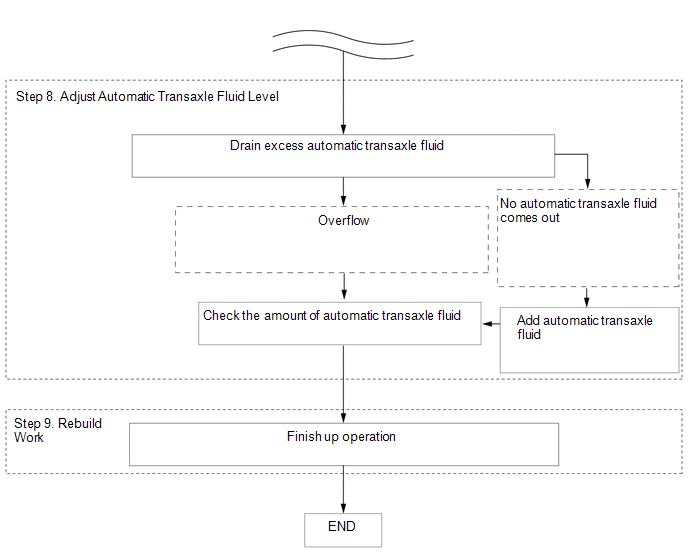

(a) The adjustment should be performed according to the procedure referenced in the work flow below.

3. PREPARATION WORK

(a) Lift the vehicle.

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure that the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

(b) Remove the front wheel opening extension pad LH.

Click here

(c) Remove the front wheel opening extension pad RH.

Click here

(d) Remove the No. 1 engine under cover.

Click here

(e) Remove the No. 3 engine under cover.

Click here

(f) Remove the front fender apron seal LH.

Click here

4. PERFORM INITIAL FILLING

NOTICE:

If the automatic transaxle assembly is hot (automatic transaxle fluid temperature is high), wait until the automatic transaxle fluid temperature becomes the same as the ambient temperature before starting the following procedure. (Recommended automatic transaxle fluid temperature: around 20°C (68°F))

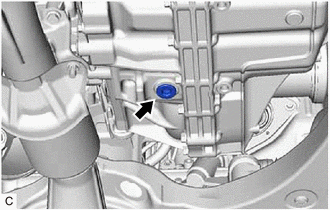

(a) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

NOTICE:

After performing either of the following operations, it is not necessary to perform the initial filling procedure. Proceed to the "Add Specified Amount of Automatic Transaxle Fluid" procedure.

Operations that do not require initial filling

  • Disconnection of an oil cooler tube or oil cooler hose
  • Repair of an automatic transaxle fluid leak due to a loose case plug, or a faulty plug gasket or O-ring
  • Replacement of the automatic transaxle assembly

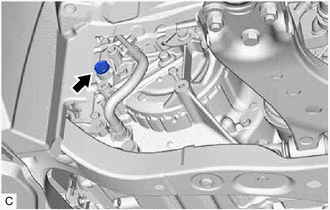

(b) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.

NOTICE:

  • If automatic transaxle fluid comes out after removing the overflow plug, wait until the automatic transaxle fluid flow slows and only drips come out.
  • If automatic transaxle fluid comes out, it is not necessary to perform the initial filling procedure. After checking the tightening torque of the No. 1 transmission oil filler tube, temporarily install the overflow plug.

(c) Using a 6 mm hexagon socket wrench, check that the No. 1 transmission oil filler tube is tightened to the specified torque.

Torque:

1.7 N·m {17 kgf·cm, 15 in·lbf}

NOTICE:

If the No. 1 transmission oil filler tube is not tightened to the specified torque, the amount of automatic transaxle fluid cannot be precisely adjusted.

HINT:

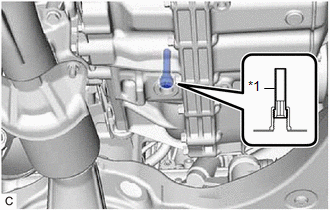

To check the torque of the No. 1 transmission oil filler tube, insert the 6 mm hexagon socket wrench into the overflow plug hole.

*1

No. 1 Transmission Oil Filler Tube

(d) Perform initial filling.

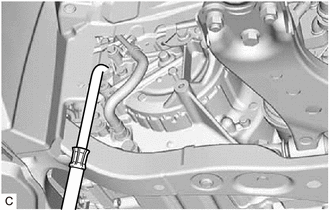

(1) Fill the automatic transaxle assembly through the refill hole until automatic transaxle fluid begins to come out of the overflow plug hole.

NOTICE:

Use Toyota Genuine ATF WS.

(e) Wait until the automatic transaxle fluid flow slows and only drips come out.

(f) Using a 10 mm hexagon socket wrench, temporarily install the gasket and overflow plug to the transaxle housing.

HINT:

Reuse the old gasket as the overflow plug will be removed again to adjust the automatic transaxle fluid level.

(g) Temporarily install the gasket and refill plug to the automatic transaxle case sub-assembly.

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

5. ADD SPECIFIED AMOUNT OF AUTOMATIC TRANSAXLE FLUID

(a) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

(b) Fill the automatic transaxle assembly with the correct amount of automatic transaxle fluid as listed in the table below.

NOTICE:

Use Toyota Genuine ATF WS.

HINT:

The refill amount differs depending on the operation that was performed.

Reference Capacity:

Performed Repair

Fill Amount

Automatic transaxle assembly replacement (with a new torque converter assembly)

5.2 liters (5.5 US qts, 4.6 Imp. qts)

Automatic transaxle assembly replacement (when reusing the torque converter assembly)

4.8 liters (5.1 US qts, 4.2 Imp. qts)

Removal and installation of the transaxle side cover sub-assembly

3.0 liters (3.2 US qts, 2.6 Imp. qts)

Removal and installation of a front drive shaft assembly

3.0 liters (3.2 US qts, 2.6 Imp. qts)

Removal and installation of the transmission valve body assembly

3.0 liters (3.2 US qts, 2.6 Imp. qts)

Removal and installation of the torque converter assembly

3.0 liters (3.2 US qts, 2.6 Imp. qts)

Repair of an automatic transaxle fluid leak due to a loose case plug, or a faulty plug gasket or O-ring

0.5 liters (0.5 US qts, 0.4 Imp. qts)

(c) Temporarily install the gasket and refill plug to avoid automatic transaxle fluid spillage.

HINT:

Reuse the old gasket as the refill plug will be removed again to adjust the automatic transaxle fluid level.

(d) Lower the vehicle.

6. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Using the Techstream)

HINT:

The actual automatic transaxle fluid temperature can be checked on the Data List using the Techstream.

(a) Connect the Techstream to the DLC3 with the engine switch off.

(b) Turn the engine switch on (IG) and turn the Techstream on.

NOTICE:

To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system are off.

(c) Enter the following menus: Powertrain / Transmission / Active Test / Activate the TC Terminal.

Powertrain > Transmission > Active Test

Active Test Display

Activate the TC Terminal

Data List Display

A/T Oil Temperature No.1

(d) According to the display on the Techstream, perform the Data List "A/T Oil Temperature No.1".

(e) According to the display on the Techstream, perform the Active Test Activate the TC Terminal and set it to "ON".

(f) Check the automatic transaxle fluid temperature.

NOTICE:

  • If the automatic transaxle fluid temperature is below 45°C (113°F), proceed to the next step. Recommended automatic transaxle fluid temperature: 35°C (95°F) or less.
  • If the automatic transaxle fluid temperature is 45°C (113°F) or more, turn the engine switch off and wait until the automatic transaxle fluid temperature drops below 45°C (113°F).

(g) Depress and hold the brake pedal.

(h) Start the engine.

(i) Slowly move the shift lever from P to D, then back to P.

HINT:

  • Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
  • Keep the shift lever in each position for approximately 3 seconds.

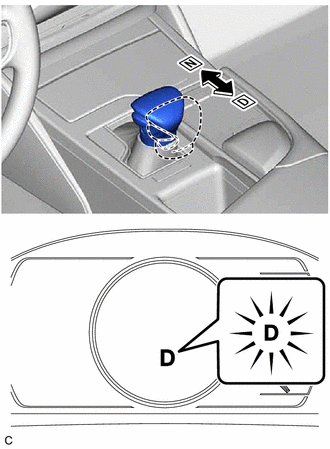

(j) While observing the D shift indicator on the combination meter, move the shift lever back and forth between N and D at an interval of less than 1.5 seconds for 6 seconds or more.

NOTICE:

Do not pause for more than 1.5 seconds.

HINT:

Performing this operation will cause the vehicle to enter automatic transaxle fluid temperature detection mode.

(k) Check that the D shift indicator comes on for 2 seconds.

HINT:

  • When automatic transaxle fluid temperature detection mode is activated, the D shift indicator on the combination meter comes on for 2 seconds.
  • If the D shift indicator does not come on for 2 seconds, return to the first step (perform the Active Test Activate the TC Terminal and set it to "ON") and perform the procedure again.

(l) Move the shift lever to P.

(m) Release the brake pedal.

(n) According to the display on the Techstream, perform the Active Test Activate the TC Terminal and set it to "OFF".

NOTICE:

Make sure that the Active Test is changed to "OFF". If it is not, the automatic transaxle fluid level cannot be precisely adjusted due to fluctuations in engine speed.

HINT:

  • Changing the Active Test to "OFF" activates engine idle speed control mode.
  • In engine idle speed control mode, engine idle speed control starts when the automatic transaxle fluid temperature reaches the specified temperature and the engine speed is maintained.
  • Even after the Active Test is changed to "OFF", automatic transaxle fluid temperature detection mode will be active until the engine switch is turned off.

(o) Adjust the automatic transaxle fluid temperature to the automatic transaxle fluid level adjustment temperature.

Automatic Transaxle Fluid Temperature

Below Automatic Transaxle Fluid Level Adjustment Temperature

Automatic Transaxle Fluid Level Adjustment Temperature

Above Automatic Transaxle Fluid Level Adjustment Temperature

35°C or less

(95°F or less)

35 to 45°C

(95 to 113°F)

45°C or more

(113°F or more)

NOTICE:

  • If the automatic transaxle fluid temperature is within the automatic transaxle fluid level adjustment temperature range, immediately proceed to the "Adjust Automatic Transaxle Fluid Level" procedure.
  • If the automatic transaxle fluid temperature is 45°C (113°F) or more, stop the engine and wait until the automatic transaxle fluid temperature drops to 40°C (104°F) or less. Then perform the "Adjust Automatic Transaxle Fluid Temperature" procedure again from the beginning.

HINT:

In automatic transaxle fluid temperature detection mode, the D shift indicator comes on, turns off or blinks depending on the automatic transaxle fluid temperature.

D Shift Indicator

Below Automatic Transaxle Fluid Level Adjustment Temperature

(35°C or less)

(95°F or less)

Automatic Transaxle Fluid Level Adjustment Temperature

(35 to 45°C)

(95 to 113°F)

Above Automatic Transaxle Fluid Level Adjustment Temperature

(45°C or more)

(113°F or more)

OFF

ON

Blinks

7. ADJUST AUTOMATIC TRANSAXLE FLUID TEMPERATURE (when Not Using the Techstream)

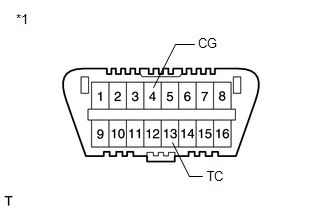

(a) Using SST, connect terminals 13 (TC) and 4 (CG) of the DLC3 with the engine switch off.

SST: 09843-18040

*1

DLC3

(b) Depress and hold the brake pedal.

(c) Start the engine.

NOTICE:

To reduce load, make sure that all electrical systems, such as the air conditioning, lighting system, electric fan and audio system are off.

(d) Slowly move the shift lever from P to D, then back to P.

HINT:

  • Slowly move the shift lever to circulate the automatic transaxle fluid through each part of the automatic transaxle assembly.
  • Keep the shift lever in each position for approximately 3 seconds.

(e) While observing the D shift indicator on the combination meter, move the shift lever back and forth between N and D at an interval of less than 1.5 seconds for 6 seconds or more.

NOTICE:

Do not pause for more than 1.5 seconds.

HINT:

Performing this operation will cause the vehicle to enter automatic transaxle fluid temperature detection mode.

(f) Check that the D shift indicator comes on for 2 seconds.

HINT:

  • When automatic transaxle fluid temperature detection mode is activated, the D shift indicator on the combination meter comes on for 2 seconds.
  • If the D shift indicator does not come on for 2 seconds, return to the first step (connect terminals 13 (TC) and 4 (CG) of the DLC3) and perform the procedure again.

(g) Move the shift lever to P.

(h) Release the brake pedal.

(i) Remove SST from terminals 13 (TC) and 4 (CG).

SST: 09843-18040

NOTICE:

Make sure that the terminals are not connected. If the terminals are connected, the automatic transaxle fluid level cannot be precisely adjusted due to fluctuations in engine speed.

HINT:

  • Disconnecting the terminals activates engine idle speed control mode.
  • In engine idle speed control mode, engine idle speed control starts when the automatic transaxle fluid temperature reaches the specified temperature and the engine speed is maintained.
  • Even after the terminals are disconnected, automatic transaxle fluid temperature detection mode is active until the engine switch is turned off.

(j) Allow the engine to idle until the D shift indicator comes on again.

D Shift Indicator

Below Automatic Transaxle Fluid Level Adjustment Temperature

(35°C or less)

(95°F or less)

Automatic Transaxle Fluid Level Adjustment Temperature

(35 to 45°C)

(95 to 113°F)

Above Automatic Transaxle Fluid Level Adjustment Temperature

(45°C or more)

(113°F or more)

OFF

ON

Blinks

NOTICE:

  • If the D shift indicator is on, immediately proceed to the "Adjust Automatic Transaxle Fluid Level" procedure.
  • If the D shift indicator blinks, stop the engine and wait until the automatic transaxle fluid temperature drops to 35°C (95°F) or less (the indicator turns off). Then perform the "Adjust Automatic Transaxle Fluid Temperature" procedure again from the beginning.

HINT:

  • In automatic transaxle fluid temperature detection mode, the D shift indicator comes on, turns off, or blinks depending on the automatic transaxle fluid temperature.
  • The automatic transaxle fluid filling procedure should be performed when the D shift indicator is on (the automatic transaxle fluid temperature is within the automatic transaxle fluid level adjustment temperature range).

8. ADJUST AUTOMATIC TRANSAXLE FLUID LEVEL

CAUTION:

Use caution while the engine is idling and the radiator fans are operating.

(a) Lift the vehicle.

NOTICE:

Set the vehicle on a lift so that the vehicle is kept level when it is lifted up (make sure the tilt angle from the front to rear and side to side of the vehicle is within +/- 1°).

(b) Using a 10 mm hexagon socket wrench, remove the overflow plug and gasket from the transaxle housing.

CAUTION:

Be careful as the automatic transaxle fluid coming out of the overflow plug hole is hot.

(c) Check the amount of automatic transaxle fluid that comes out of the overflow plug hole.

  • If the amount of automatic transaxle fluid that comes out of the overflow plug hole is large, proceed to step [#1].
  • If no automatic transaxle fluid comes out of the overflow plug hole, proceed to step [#2].

NOTICE:

If only a small amount of automatic transaxle fluid (approximately 1 cc) comes out of the overflow plug hole, then only automatic transaxle fluid remaining in the No. 1 transmission oil filler tube has come out. This condition is not considered as overflow, so it is necessary to add automatic transaxle fluid.

(d) If the amount of automatic transaxle fluid that comes out of the overflow plug hole is large. [#1]

(1) Wait until the automatic transaxle fluid flow slows and only drips come out.

HINT:

The automatic transaxle fluid flow will not stop completely because the automatic transaxle fluid continues to expand as its temperature increases.

(e) If no automatic transaxle fluid comes out of the overflow plug hole. [#2]

(1) Remove the refill plug and gasket from the automatic transaxle case sub-assembly.

(2) Add automatic transaxle fluid through the refill hole until automatic transaxle fluid comes out of the overflow plug hole.

NOTICE:

Use Toyota Genuine ATF WS.

(3) Wait until the automatic transaxle fluid flow slows and only drips come out.

(f) Using a 10 mm hexagon socket wrench, install the overflow plug and a new gasket to the transaxle housing.

Torque:

50 N·m {510 kgf·cm, 37 ft·lbf}

NOTICE:

To prevent the gasket from being deformed when tightening, coat it with Toyota Genuine ATF WS.

(g) Install the refill plug and a new gasket to the automatic transaxle case sub-assembly.

Torque:

49 N·m {500 kgf·cm, 36 ft·lbf}

NOTICE:

To prevent the gasket from being deformed when tightening, coat it with Toyota Genuine ATF WS.

(h) Lower the vehicle.

(i) Turn the engine switch off.

HINT:

Turning the engine switch off ends automatic transaxle fluid temperature detection mode.

(j) Disconnect the Techstream from the DLC3 (when using the Techstream).

9. REBUILD WORK

(a) Lift the vehicle.

(b) Clean each part.

(c) Check for automatic transaxle fluid leaks.

(d) Install the front fender apron seal LH.

Click here

(e) Install the No. 3 engine under cover.

Click here

(f) Install the No. 1 engine under cover.

Click here

(g) Install the front wheel opening extension pad LH.

Click here

(h) Install the front wheel opening extension pad RH.

Click here

(i) Lower the vehicle.

READ NEXT:

 Adjustment

ADJUSTMENT CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during a

 Components

COMPONENTS ILLUSTRATION *A Type A *B Type B *1 FRONT FENDER APRON SEAL LH *2 FRONT WHEEL OPENING EXTENSION PAD LH *3 FRONT WHEEL OPENING EXTENSION PAD RH *4 NO. 1 ENGINE

 High Temperature Adjustment

HIGH TEMPERATURE ADJUSTMENT CAUTION / NOTICE / HINT The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or

SEE MORE:

 Knock Sensor 1 Bank 1 or Single Sensor Circuit Short to Ground (P032511)

DESCRIPTION A flat-type knock control sensor (non-resonant type) has a structure that can detect vibrations between approximately 5 and 23 kHz. The knock control sensor is fitted onto the engine block to detect engine knocking. The knock control sensor contains a piezoelectric element which generate

 Parts Location

PARTS LOCATION ILLUSTRATION *1 MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) *2 COMBINATION METER ASSEMBLY *3 DLC3 *4 CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) *5 INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-B NO. 2 FUSE - DOOR F/L FUSE - DOOR F/R FUSE - DOOR R/L FUSE - DOO

© 2016-2024 Copyright www.lexguide.net
