Lexus ES: Utility

UTILITY

DESCRIPTION

(a) Refer to the table below and then perform the necessary operation according to the part to be replaced in order to perform calibration.

Parts to be Replaced / Operation

Necessary Operation

Skid control ECU (brake actuator assembly)

Perform acceleration sensor zero point calibration and store system information.

Yaw rate and acceleration sensor (airbag ECU assembly)

  1. Perform "Reset Memory".
  2. Perform acceleration sensor zero point calibration and store system information memorization.

Wheel alignment adjustment

  1. Perform "Reset Memory".
  2. Perform acceleration sensor zero point calibration and store system information memorization.

UTILITY ITEMS

Utility Items

Main Purpose

Link

All Readiness

Confirm if DTC judgment has been completed.

Refer to utility

Calibration

Enter Dealer Mode (Calibration) and perform acceleration sensor zero point calibration and store system information memorization.

Refer to utility

Inspection Mode

Enter Inspection Mode which prohibits operation of VSC and TRAC.

Refer to utility

Signal Check

Enter Dealer Mode (Signal Check) and perform a signal inspection of the electronically controlled brake system.

Vehicle Control History (RoB)

View vehicle control history.

Reset Memory

Clear acceleration sensor zero point calibration data and system information.

Refer to utility

ACCELERATION SENSOR ZERO POINT CALIBRATION AND STORE SYSTEM INFORMATION MEMORIZATION

NOTICE:

  • After replacing the skid control ECU (brake actuator assembly), perform acceleration sensor zero point calibration and store system information memorization.
  • After replacing or reinstalling the yaw rate and acceleration sensor (airbag ECU assembly), perform acceleration sensor zero point calibration and store system information memorization after performing "Reset Memory".
  • As the acceleration sensor zero point cannot be stored again until the current zero point is cleared, perform "Reset Memory" and acceleration sensor zero point calibration and store system information memorization after replacing or removing and installing the yaw rate and acceleration sensor (airbag ECU assembly).
  • While obtaining the zero point, keep the vehicle stationary and do not vibrate, tilt, move, or shake it.
  • Be sure to perform this procedure on a level surface (with an inclination of less than 0.45 degrees).
  • While obtaining the zero point, make sure the tire pressure is as specified and the vehicle is in full contact with the ground (not lifted up or loaded).

HINT:

When entering Dealer Mode (Calibration), the skid control ECU (brake actuator assembly) communicates with the forward recognition camera to judge whether the vehicle is equipped with the pre-collision system. Therefore, do not exit Dealer Mode (Calibration) within 5 seconds of entering Dealer Mode (Calibration).

(a) Clear the zero point calibration data and system information.

(1) Turn the engine switch off.

(2) Apply the parking brake.

(3) Check that the shift lever is in P.

(4) Connect the Techstream to the DLC3.

(5) Turn the engine switch on (IG).

(6) Turn the Techstream on.

(7) Select the skid control ECU (brake actuator assembly) to clear the zero point calibration data using the Techstream. Enter the following menus: Chassis / Brake/EPB / Utility / Reset Memory.

Chassis > Brake/EPB > Utility

Tester Display

Reset Memory

(8) Using the Techstream, perform "Reset Memory".

NOTICE:

After perform "Reset Memory", the ABS warning light, brake warning light / red (malfunction) and slip indicator light illuminate. If the vehicle is driven with the memory cleared, DTCs C124A00 and C051D54 will be stored.

(b) Perform acceleration sensor zero point calibration and store system information memorization.

HINT:

  • Acceleration sensor zero point calibration and store system information memorization are automatically performed immediately after Dealer Mode (Calibration) is entered.
  • If store system information memorization has not yet been performed, the slip indicator light will remain on and DTC C124A00 will be stored.
  • If acceleration sensor zero point calibration is not successful, the slip indicator light will remain on and DTC C051D54 will be stored.

(1) Turn the engine switch off.

(2) Apply the parking brake.

(3) Check that the shift lever is in P.

(4) Connect the Techstream to the DLC3.

(5) Turn the engine switch on (IG).

(6) Check that the steering wheel is centered.

(7) Turn the Techstream on.

(8) Switch the skid control ECU (brake actuator assembly) to calibration using the Techstream. Enter the following menus: Chassis / Brake/EPB / Utility / Calibration.

Chassis > Brake/EPB > Utility

Tester Display

Calibration

(9) Using the Techstream, perform "Calibration" and enter Dealer Mode (Calibration).

(10) Confirm that the ABS warning light and slip indicator light indicate the Dealer Mode pattern (blinking at 0.25 seconds intervals).

HINT:

  • After "Calibration" has successfully completed, the ABS warning light and slip indicator light indicate the Dealer Mode pattern (blinking at 0.25 seconds intervals).
  • The slip indicator light may illuminate for approximately 7 seconds before learning successfully completes.
  • When entering Dealer Mode (Calibration), if the parking brake is engaged, the parking brake indicator light (red) will illuminate, and if the parking brake is not engaged, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 seconds intervals).
  • Do not exit Dealer Mode (Calibration) within 5 seconds of entering Dealer Mode (Calibration). If Dealer Mode (Calibration) is exited within 5 seconds of entering Dealer Mode (Calibration), DTC U023A87 may be stored. If DTC U023A87 is output after exiting Dealer Mode (Calibration), enter Dealer Mode (Calibration) again, wait at least 5 seconds, then recheck for DTCs.

(11) Turn the engine switch off.

(12) Disconnect the Techstream.

ALL READINESS

HINT:

  • With "All Readiness", you can check whether or not the DTC judgment has been completed by using the Techstream.
  • You should check "All Readiness" after simulating malfunction symptoms or for validation after finishing repairs.

(a) Turn the engine switch off.

(b) Connect the Techstream to the DLC3.

(c) Turn the engine switch on (IG).

(d) Turn the Techstream on.

(e) Clear the DTCs even if no DTCs are stored. Enter the following menus: Chassis / Brake/EPB / Trouble Codes.

Click here

Chassis > Brake/EPB > Clear DTCs

(f) Press the DTC clear button.

(g) Turn the engine switch off.

(h) Start the engine.

(i) Perform the DTC judgment driving pattern to run the DTC judgment.

(j) Enter the following menus: Chassis / Brake/EPB / Utility / All Readiness.

Chassis > Brake/EPB > Utility

Tester Display

All Readiness

(k) Input the DTC to be confirmed.

(l) Check the DTC judgment result.

Techstream Display

Description

Normal

  • DTC judgment completed
  • System normal

Abnormal

  • DTC judgment completed
  • System abnormal

Incomplete

  • DTC judgment not completed
  • Perform the driving pattern

N/A

  • Unable to perform DTC judgment
  • Number of DTCs which do not fulfill DTC preconditions has reached ECU memory limit
  • Perform the driving pattern

If the judgment result shows Incomplete or N/A, perform the DTC confirmation driving pattern again.

INSPECTION MODE (WHEN USING TECHSTREAM)

When testing with a 2-wheel drum tester such as speedometer tester, combination tester for the speedometer and brakes, or chassis dynamometer, or when jacking up the front wheels and turning the wheels, perform the following procedure to enter Inspection Mode and disable the TRAC and VSC systems.

CAUTION:

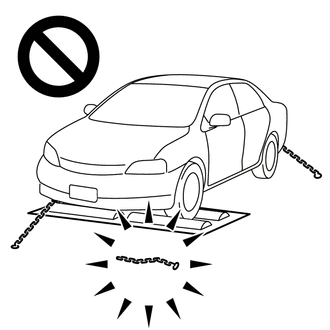

  • Do not use the drum tester with any of the lock chains disconnected.
  • Using the drum tester with a lock chain disconnected could cause the vehicle to begin moving unexpectedly.

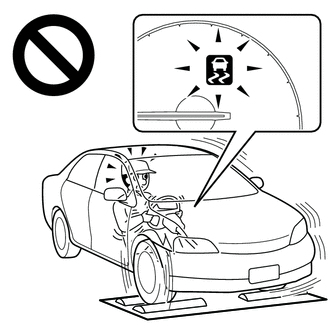

  • Do not use the drum tester while the TRAC or VSC is able to operate.
  • TRAC or VSC operation could cause the vehicle to begin moving unexpectedly.

HINT:

When the system is in Inspection Mode, TRAC and VSC are disabled.

(a) Activating Inspection Mode

NOTICE:

  • Inspection Mode will be canceled when the engine switch is turned off. Make sure to enter Inspection Mode again if the inspection is continued after the engine switch is turned off.
  • Never drive the vehicle while in Inspection Mode.

(1) Turn the engine switch off.

(2) Connect the Techstream to the DLC3.

(3) Turn the engine switch on (IG).

(4) Turn the Techstream on.

(5) Enter the following menus: Chassis / Brake/EPB / Utility / Inspection Mode.

Chassis > Brake/EPB > Utility

Tester Display

Inspection Mode

(6) Check that the VSC OFF indicator light comes on and "Traction Control Turned Off" is displayed on the multi-information display (Confirm that the system has entered Inspection Mode).

HINT:

When entering Inspection Mode, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 seconds intervals).

(b) End of Inspection Mode.

(1) Turning the engine switch off ends Inspection Mode.

NOTICE:

If the engine switch is turned on (IG) within 60 seconds of being turned off, the system will reenter Inspection Mode.

(2) Confirm that the VSC OFF indicator light turns off and the "Traction Control Turned Off" on the multi-information display is cleared (Confirm that Inspection Mode is canceled).

INSPECTION MODE (WHEN NOT USING TECHSTREAM)

When testing with a 2-wheel drum tester such as speedometer tester, combination tester for the speedometer and brakes, or chassis dynamometer, or when jacking up the front wheels and turning the wheels, perform the following procedure to enter Inspection Mode and disable the TRAC and VSC systems.

CAUTION:

  • Do not use the drum tester with any of the lock chains disconnected.
  • Using the drum tester with a lock chain disconnected could cause the vehicle to begin moving unexpectedly.
  • Do not use the drum tester while the TRAC or VSC is able to operate.
  • TRAC or VSC operation could cause the vehicle to begin moving unexpectedly.

HINT:

When the system is in Inspection Mode, TRAC and VSC are disabled.

(a) Activating Inspection Mode

NOTICE:

  • Inspection Mode will be canceled when the engine switch is turned off. Make sure to enter Inspection Mode again if the inspection is continued after the engine switch is turned off.
  • Never drive the vehicle while in Inspection Mode.

(1) Perform steps "D" to "H" within 30 seconds.

(2) Ensure that the engine switch is off and the engine is stopped (Step "A").

(3) Apply the parking brake (Step "B").

(4) Make sure that the shift lever is in P (Step "C").

(5) Start the engine (Step "D").

(6) Depress and release the brake pedal twice (Step "E").

(7) While holding the brake pedal down, release and apply the parking brake twice (Step "F").

(8) With the parking brake applied, depress and release the brake pedal twice (Step "G").

(9) Check that the VSC OFF indicator light comes on and "Traction Control Turned Off" is displayed on the multi-information display (Step "H").

HINT:

  • If the VSC OFF indicator light does not come on and "Traction Control Turned Off" is not displayed on the multi-information display in step "H", repeat steps "A" to "H".
  • When entering Inspection Mode, the parking brake indicator light (red) will blink in the Dealer Mode pattern (blinking at 0.25 seconds intervals).

(b) End of Inspection Mode.

(1) Turning the engine switch off ends Inspection Mode.

NOTICE:

If the engine switch is turned on (IG) within 60 seconds of being turned off, the system will reenter Inspection Mode.

(2) Confirm that the VSC OFF indicator light turns off and the "Traction Control Turned Off" on the multi-information display is cleared (Confirm that Inspection Mode is canceled).
